All Autopiano actions were three-tier, and with horizontal secondary valves. The renowned double-hole tracking system was always used, as it was in "Standard" actions (see System 1). The distinguishing feature between Standard and Autopiano was that in the Autopiano the tracking pneumatics were always in a vertical position, whereas on the Standard they were horizontal and not separated by the valve box. The tracker bars of both had two adjacent staggered holes to "read" both edges of the paper. Tracking systems of other player actions, with the one exception of some Kimball actions, did not have the double holes and so with that exception, it would narrow it down to either Autopiano or Standard. Pictured below is the Autopiano action. For more information about the Standard Player Action Company, the Autopiano Co, and the Auto Pneumatic Action Co., click here. Autopiano also had a Deluxe system, which is further explained here.

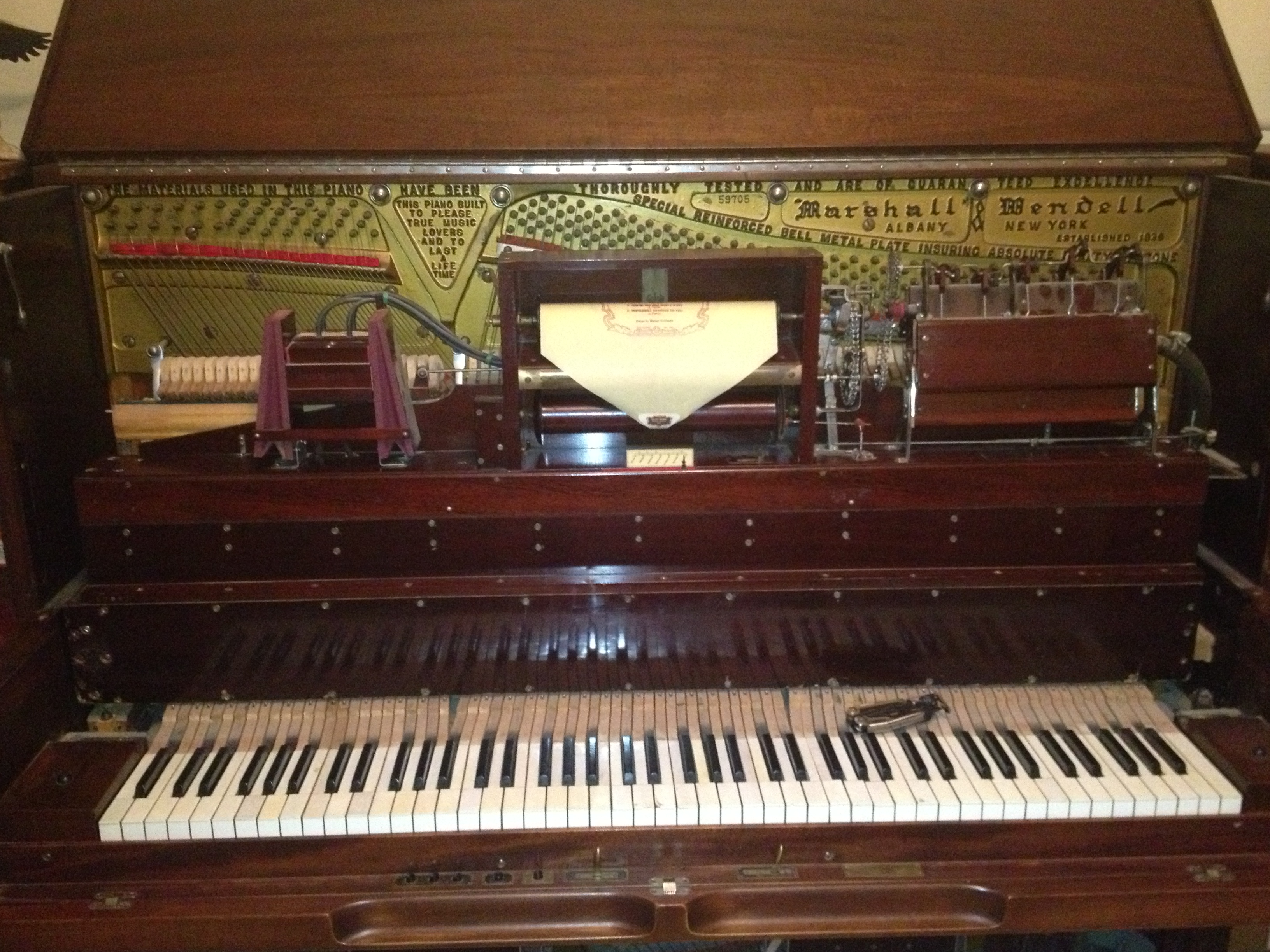

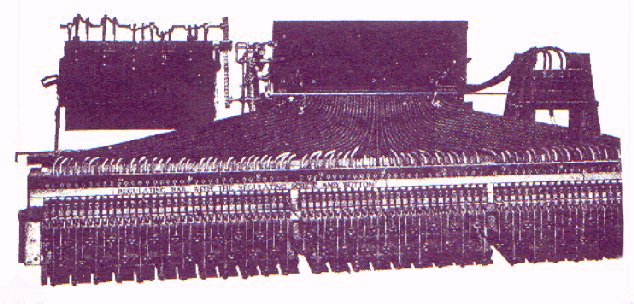

Autopiano Upper Section

Autopiano Upper Section
Upper Section from 1918 - Click on picture to see full size image
Click her for instructions on removing the upper section from the piano.

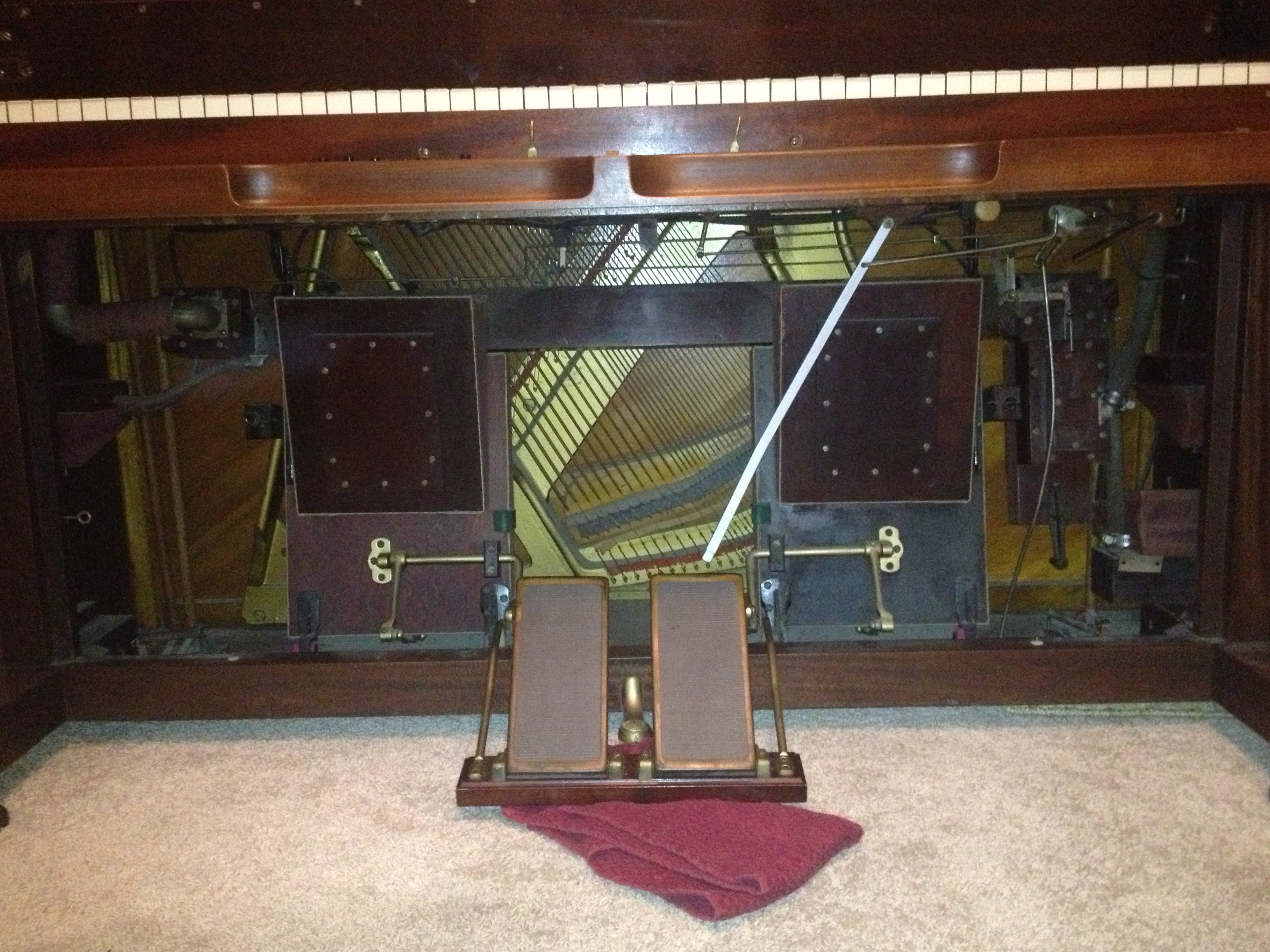

Autopiano Lower Section
Lower Section from 1918 - Click on picture to see full size image

To see a series of pictures of a 1911 Autopiano system - click here.

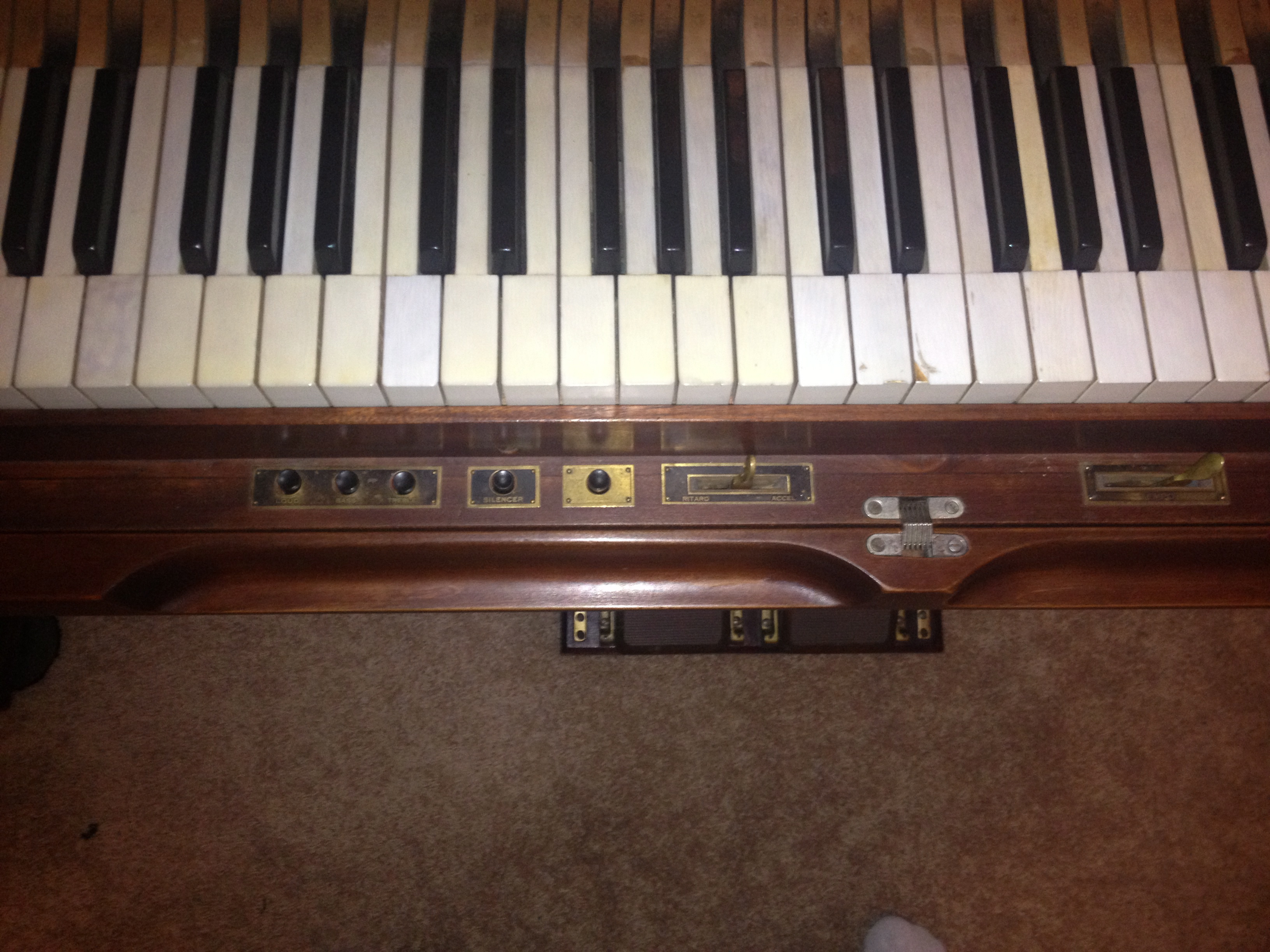

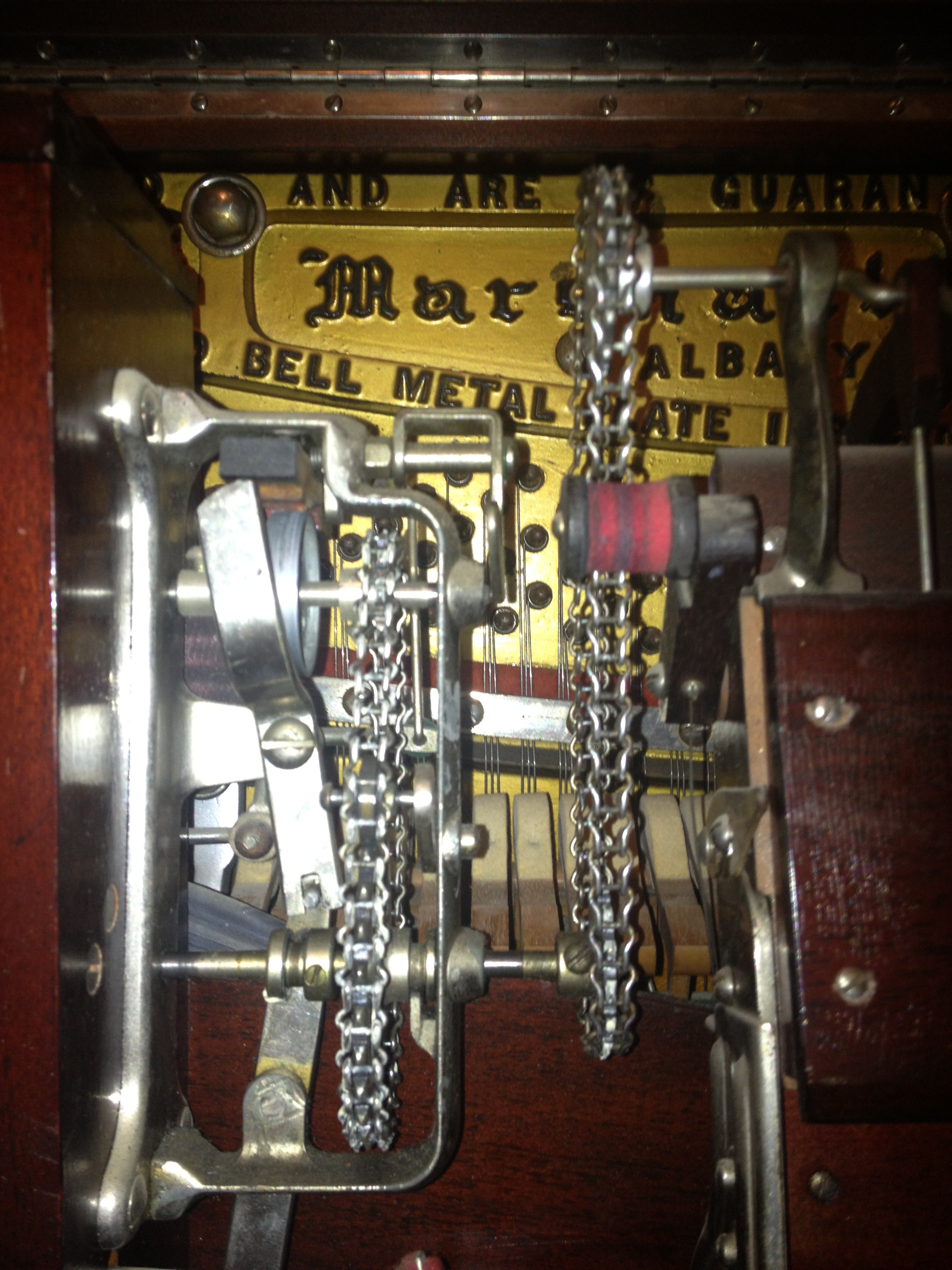

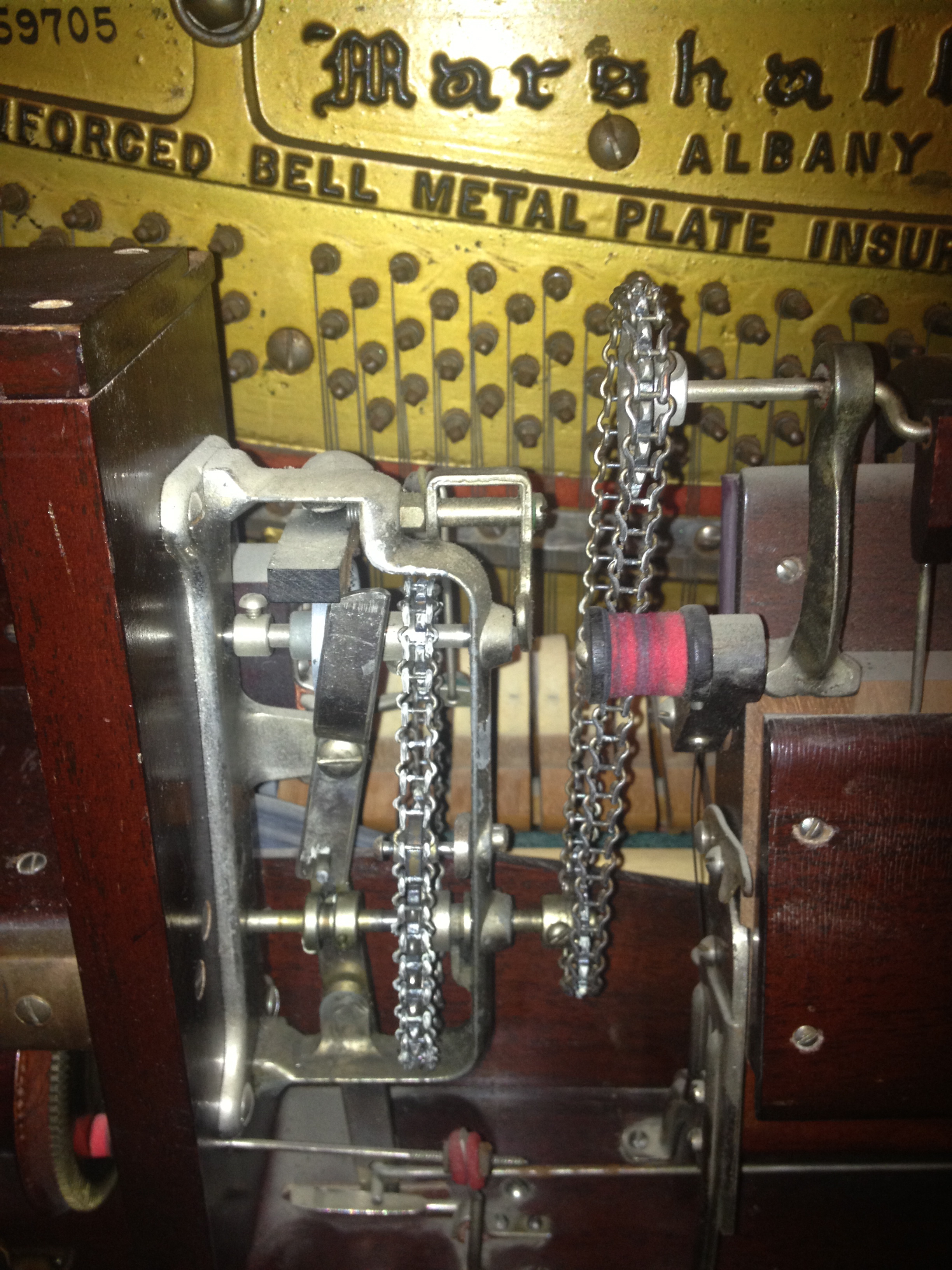

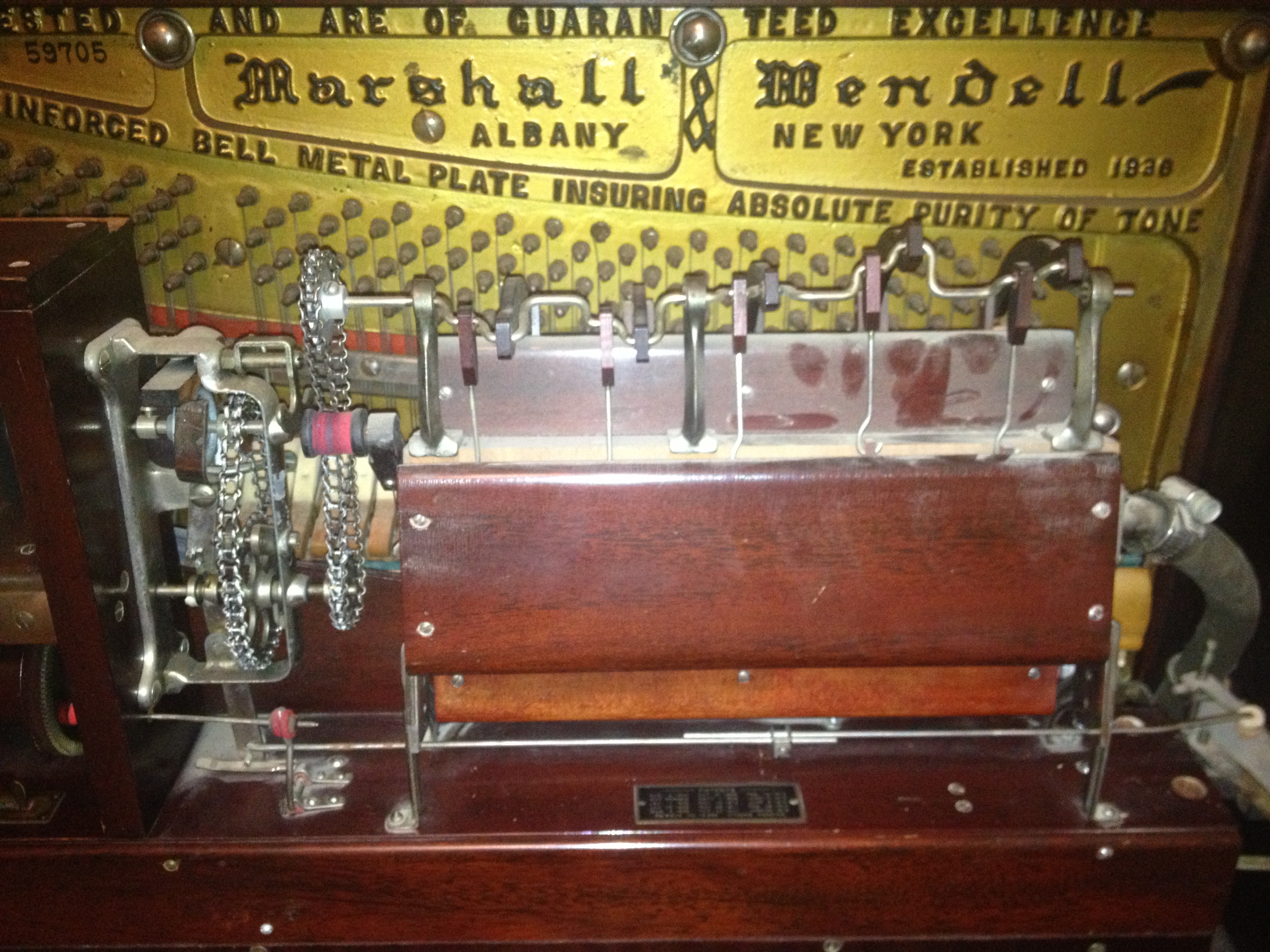

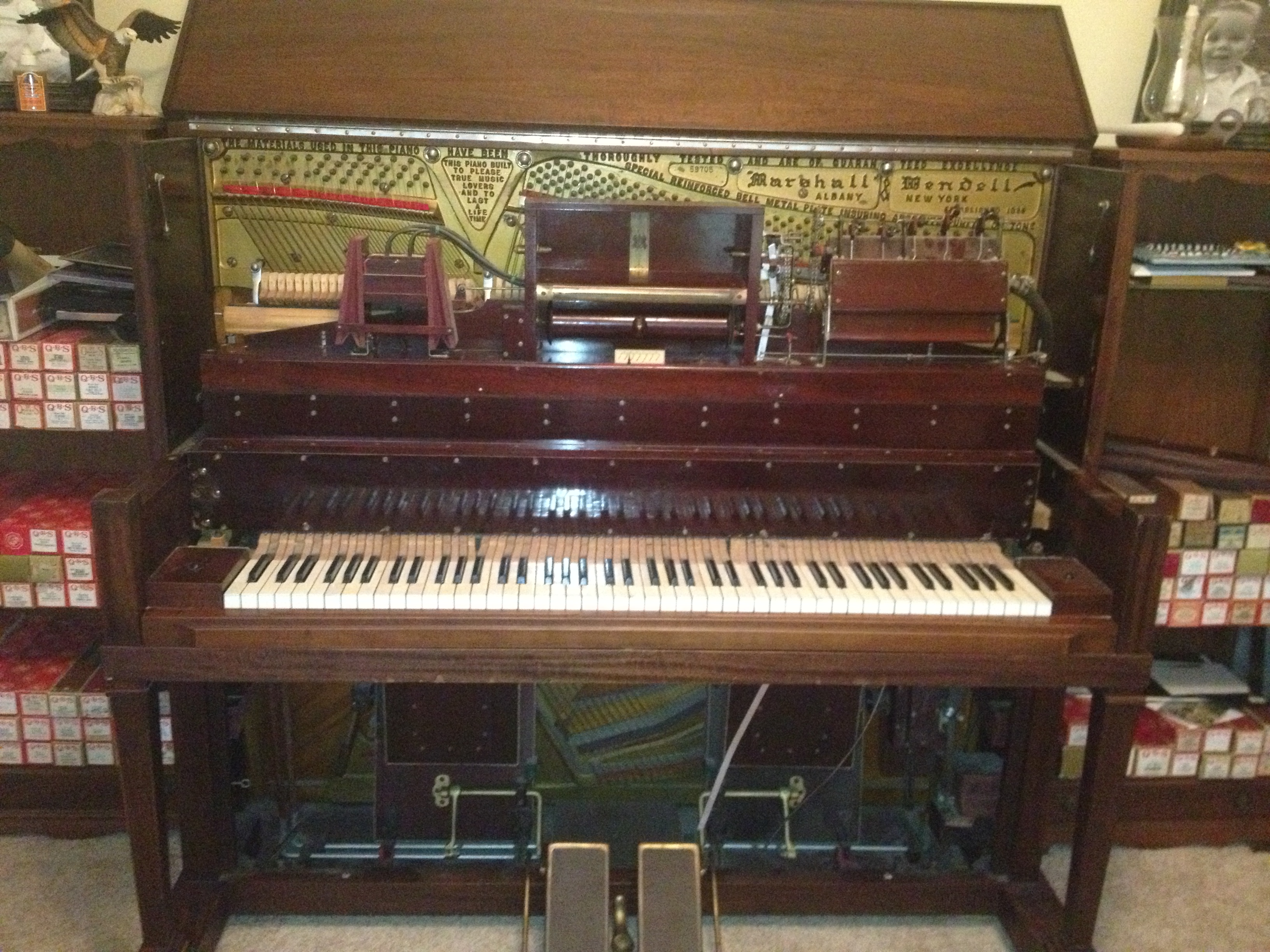

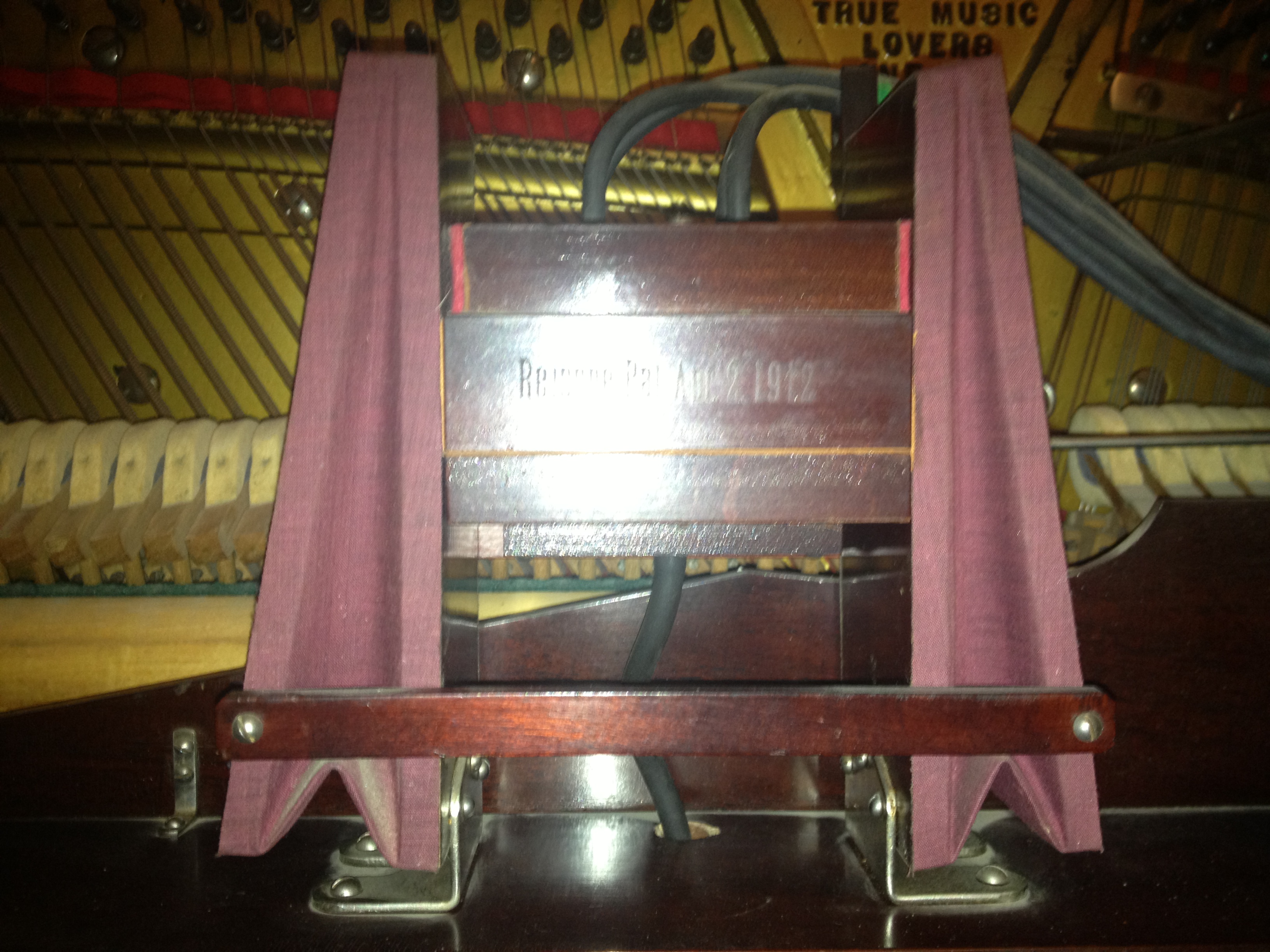

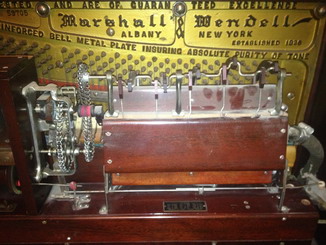

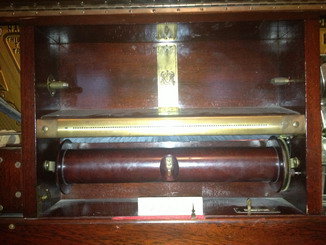

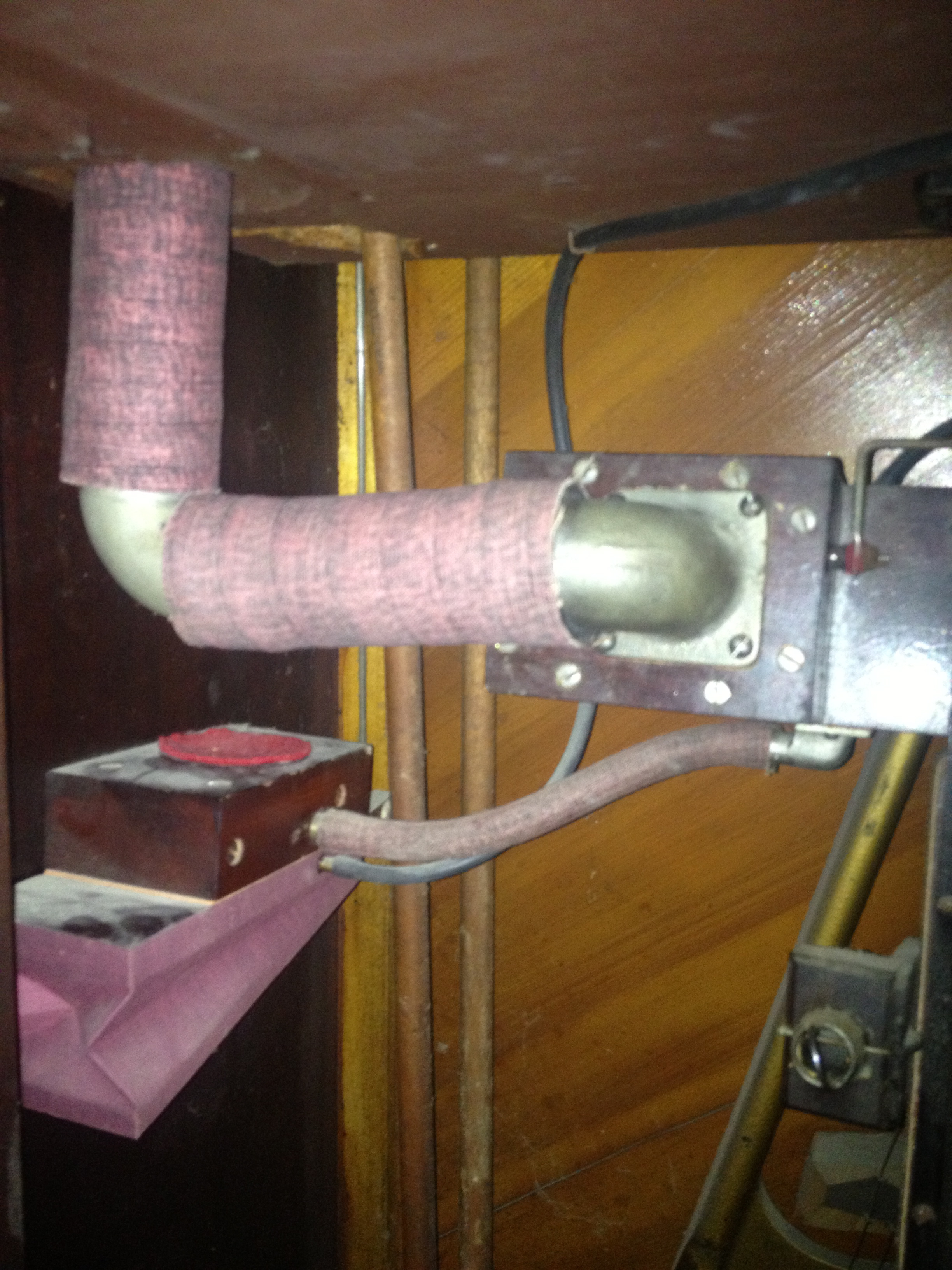

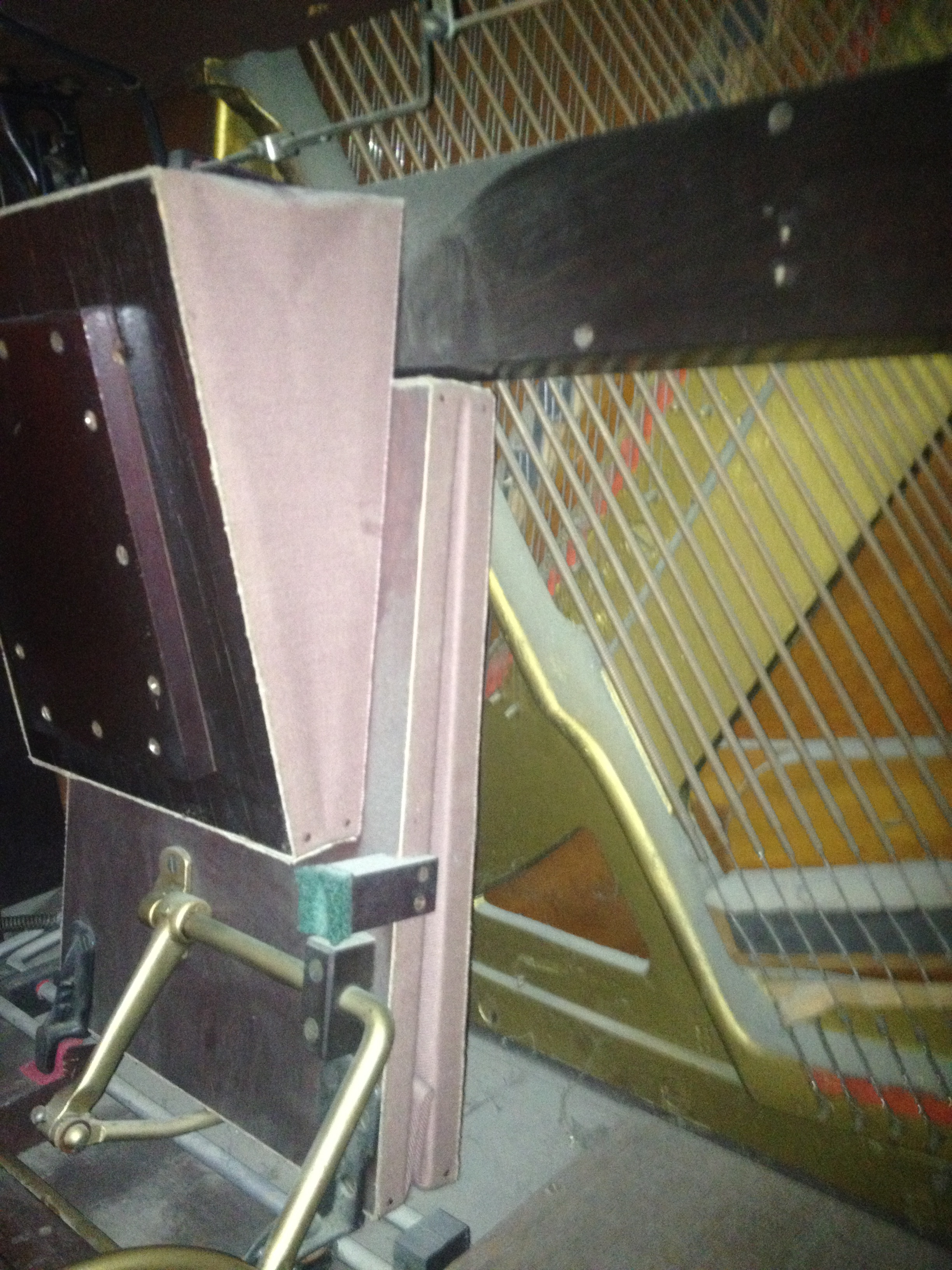

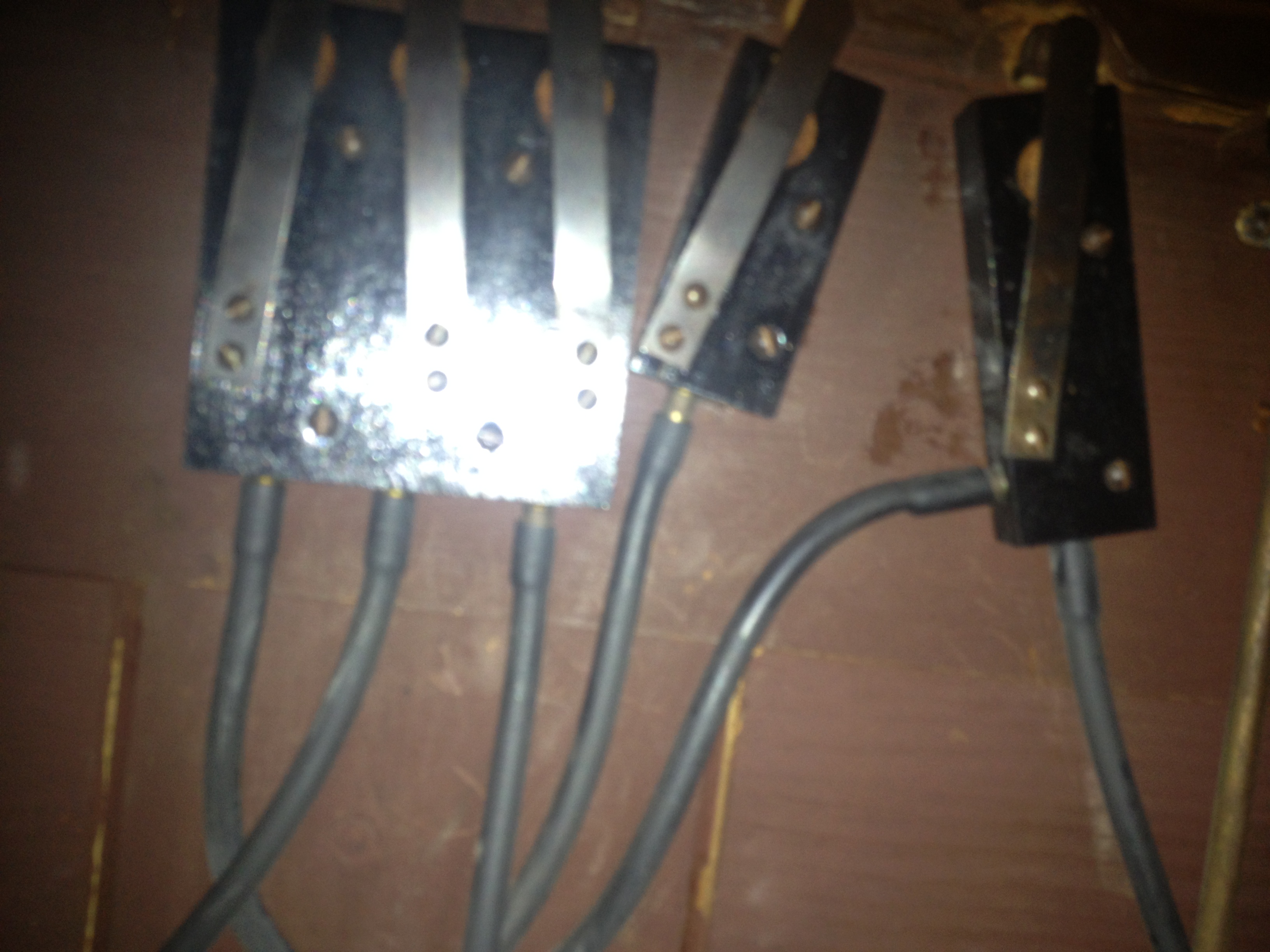

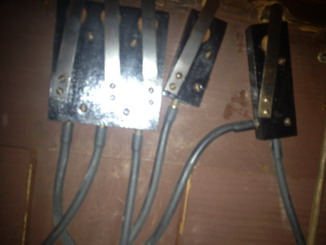

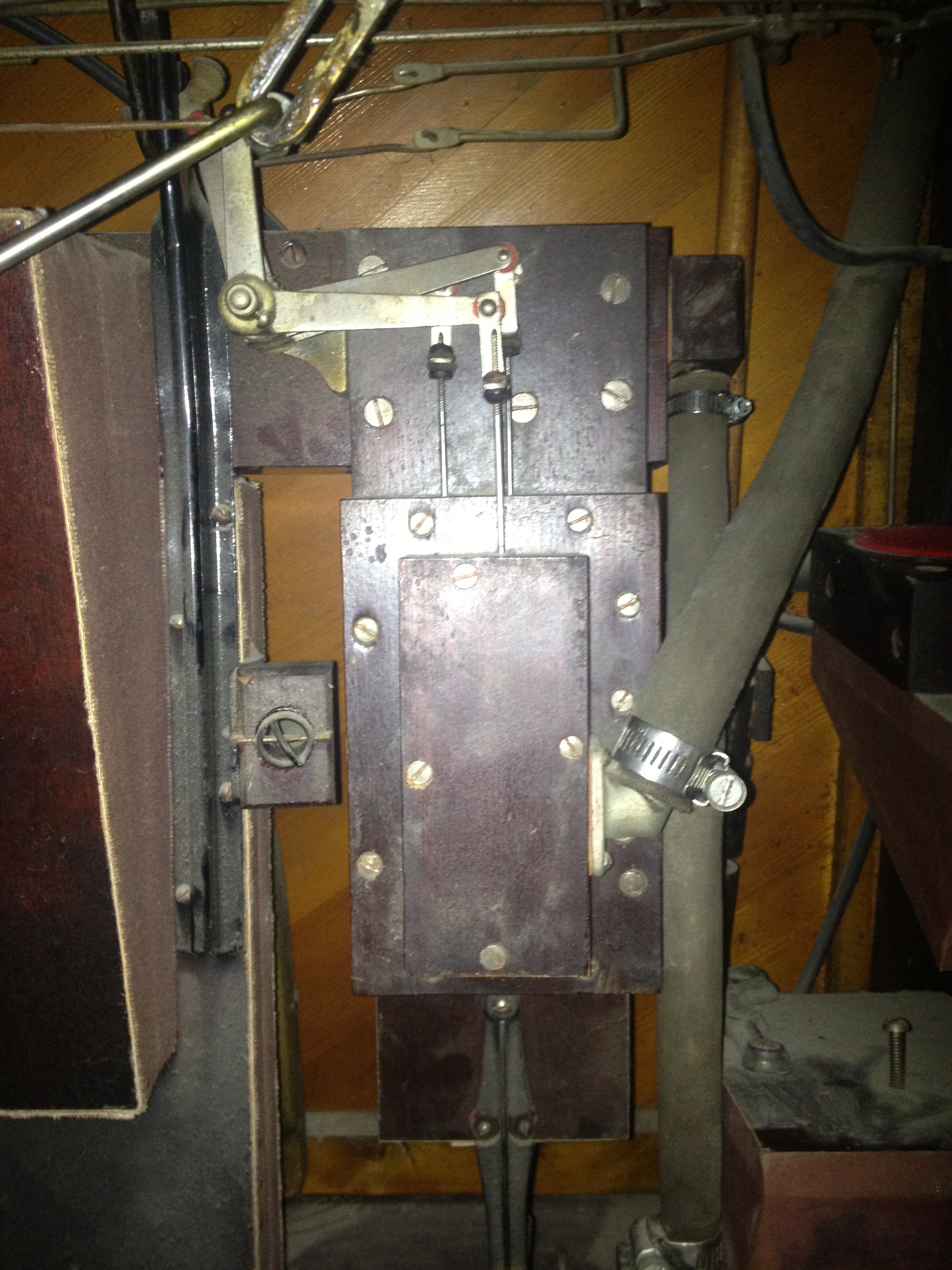

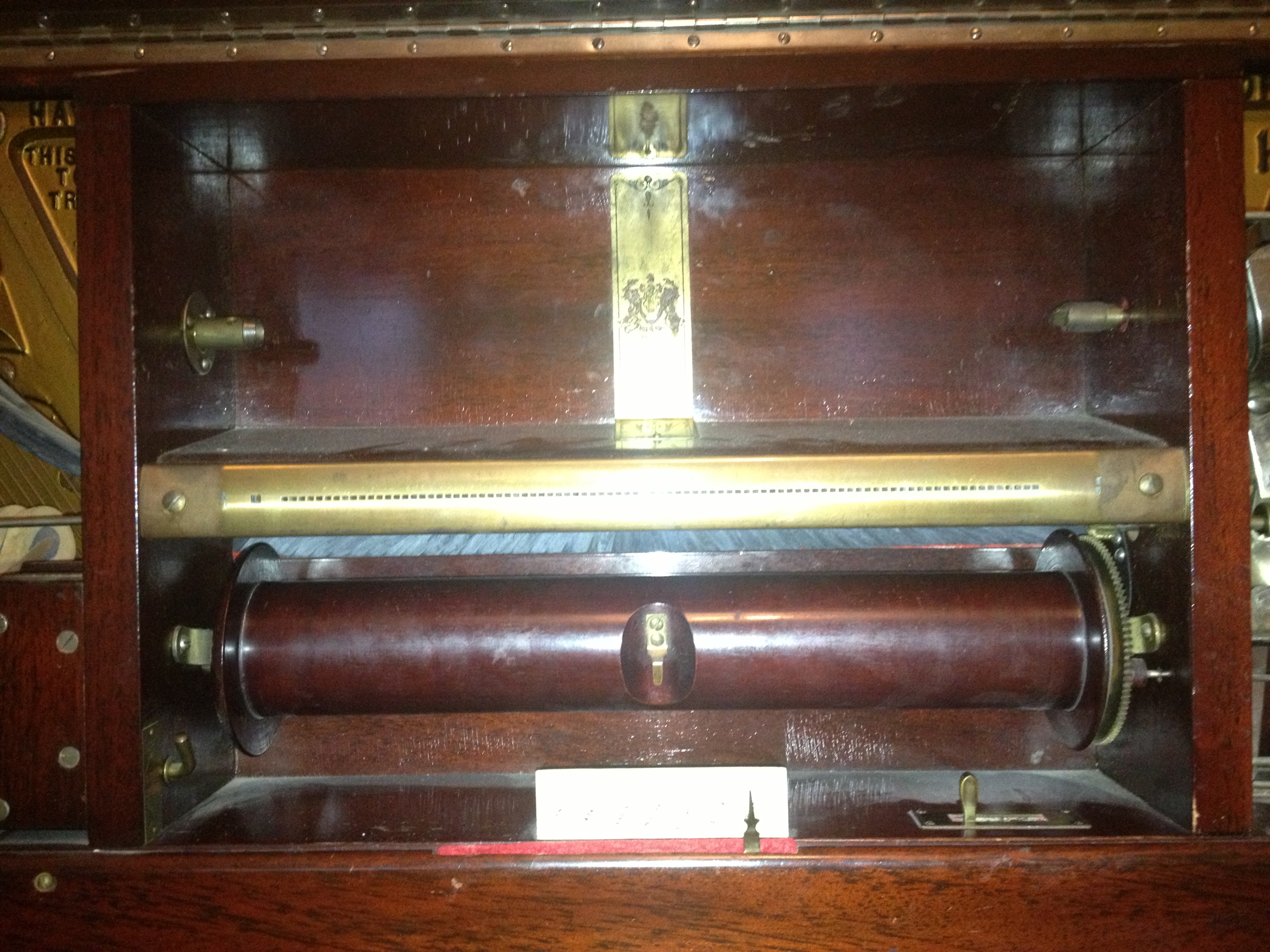

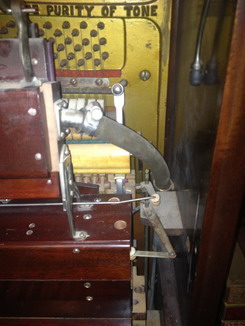

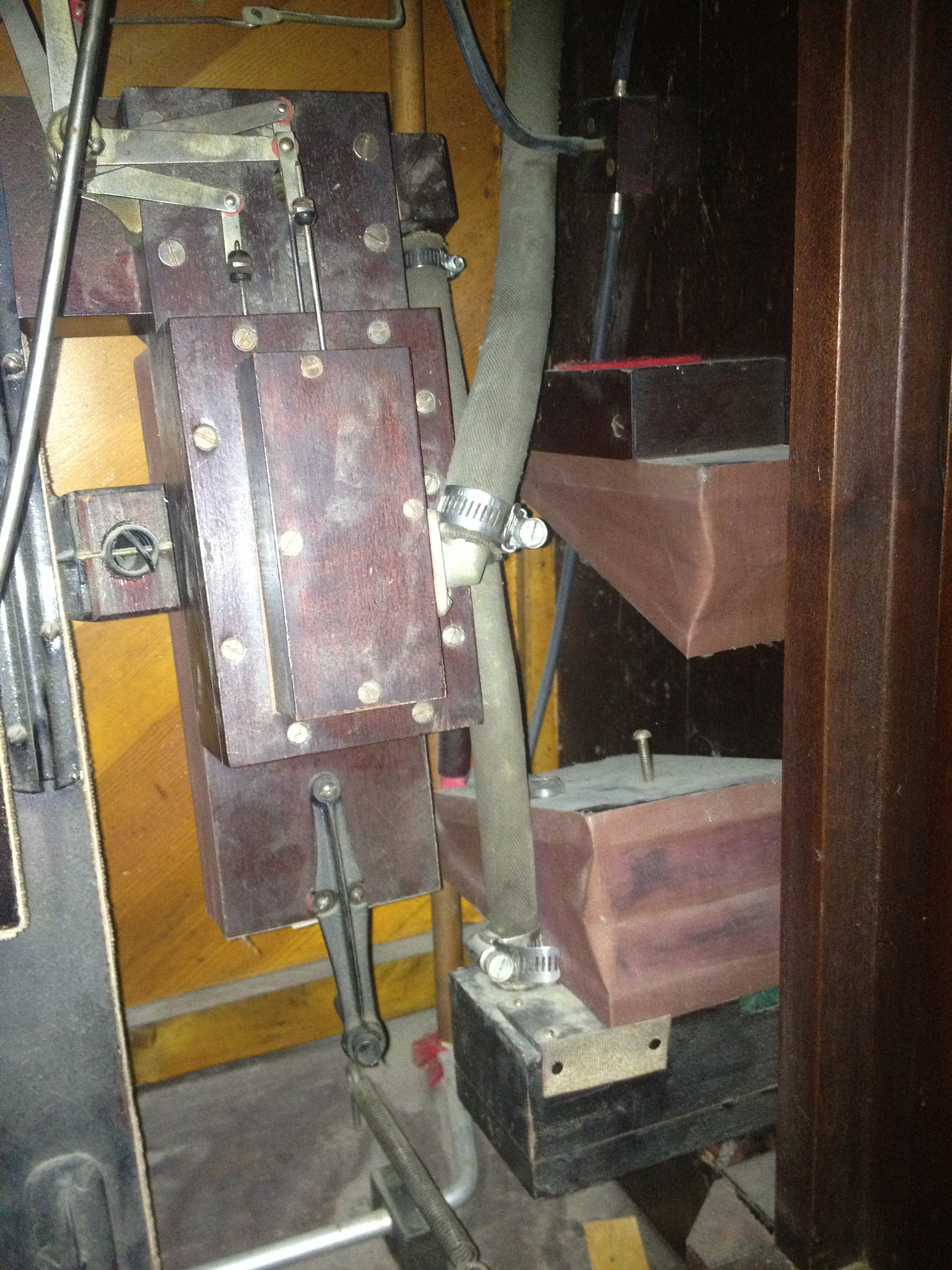

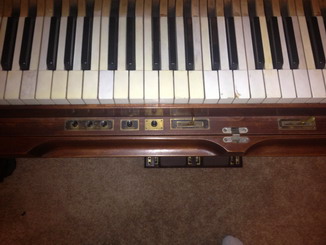

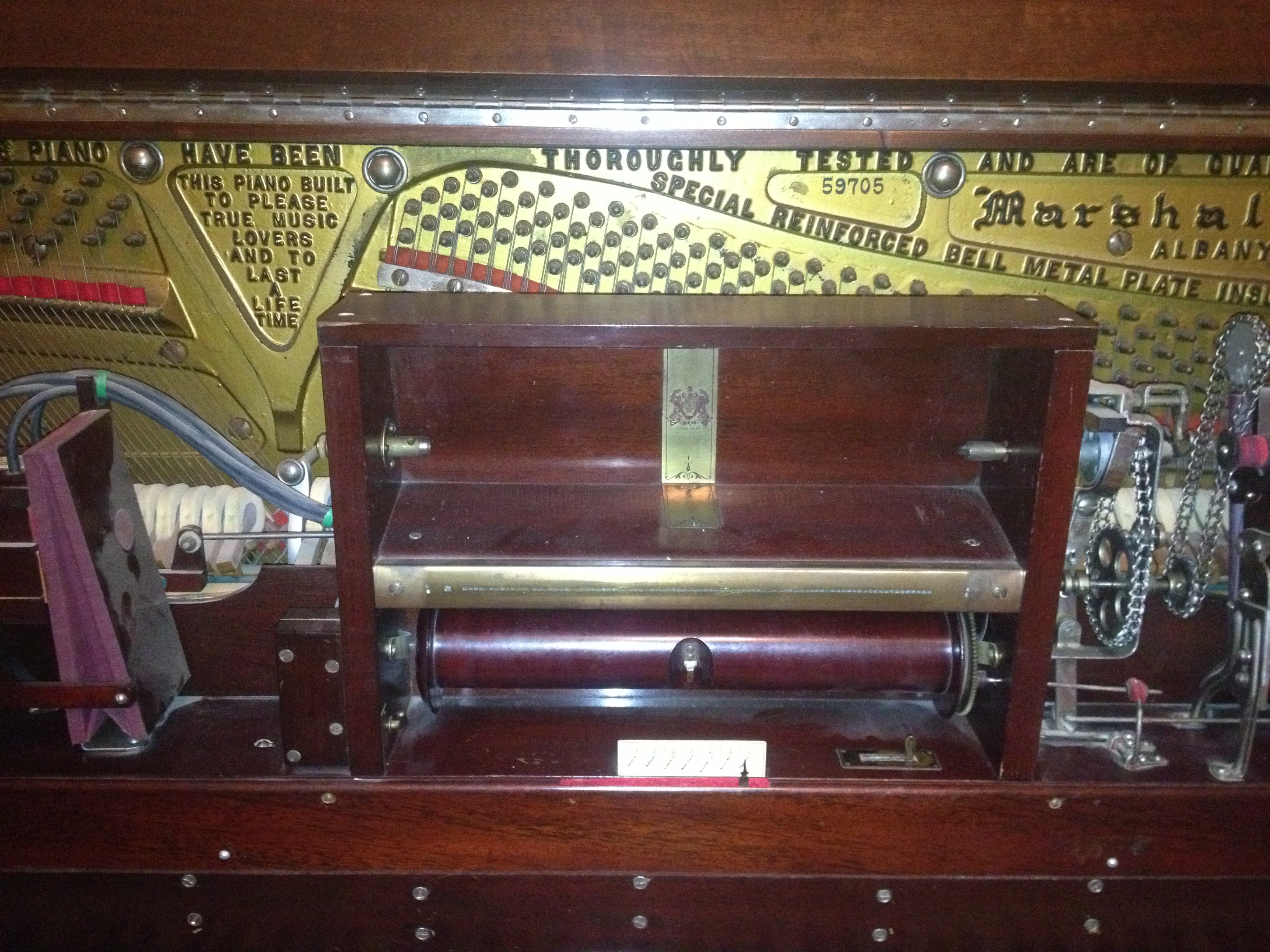

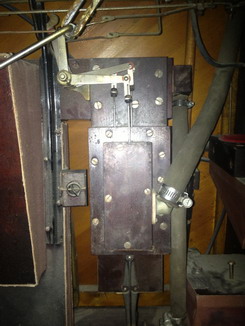

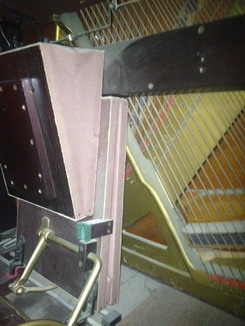

Detailed pictures of the Autopiano system provided by Justin Null. This system was restored
around 1980 by his grandfather, Kenneth Coyle. Click on the picture to see the full-size image.
After viewing the image, use your browser's Back Arrow button to return to this web page.
