"Tips and Tricks"

Dual-Stage Electronic
Voltage Controller
for Vacuum Pump Kit


Reference Materials

Dual-Stage Electronic Voltage
Controller for Vacuum Pump Kit

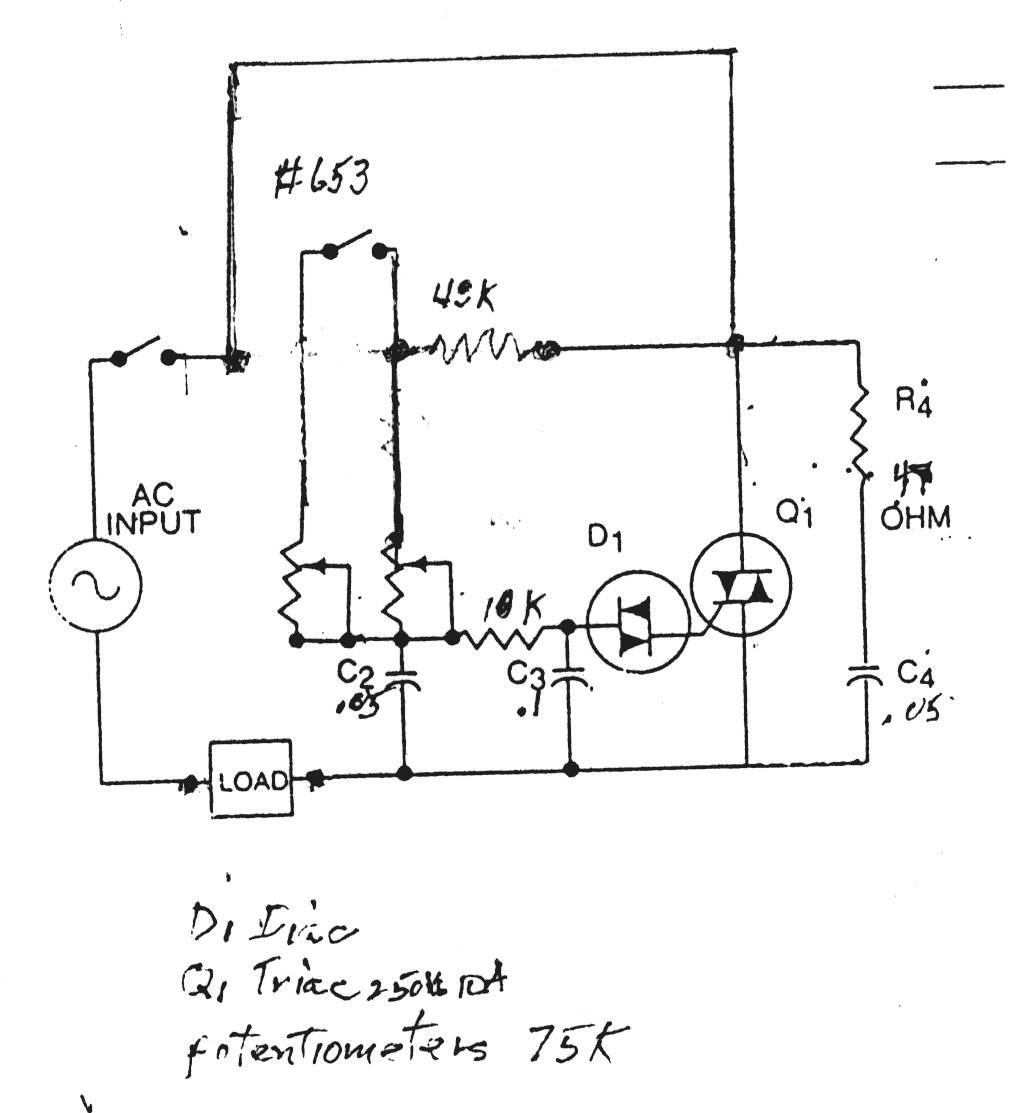

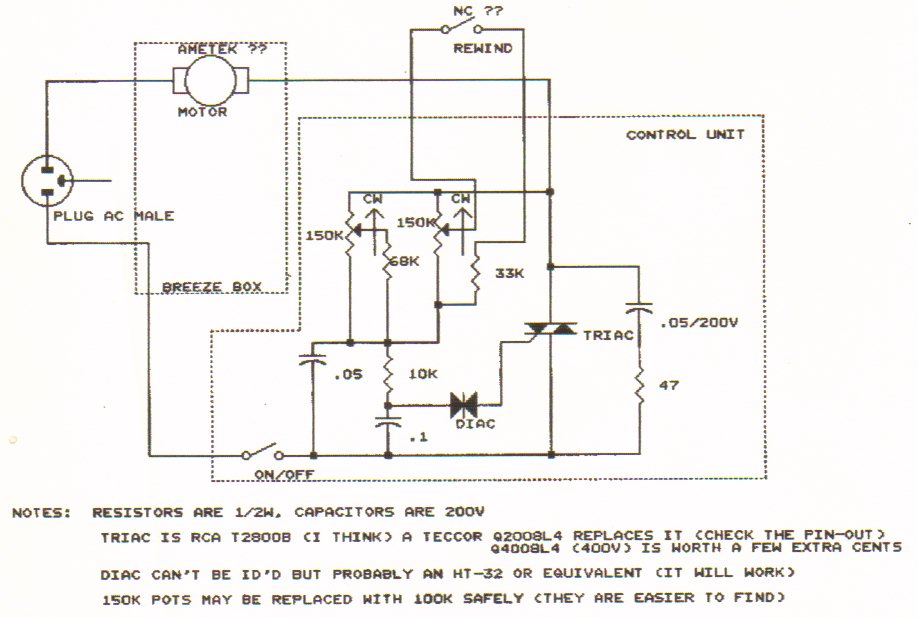

Below are schematic diagrams of the Dual-Stage Electronic Voltage Controller for the #650 Vacuum Pump Kit. As you will notice, there have been slight changes in the components over the years.
