Aeolian (modern) Plastic Block Valves

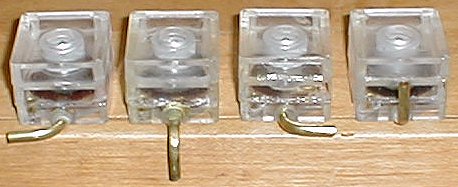

modern Aeolian Plastic Block Valves

These block valves are identical in size to the original Aeolian block valves that are found in ALL of the player pianos made by the Aeolian Corporation from 1960 through 1986. However, that is where the similarity ends. The quality of the materials and the construction techniques used to make these new valves is far better than those that were mass produced by Aeolian.

There are five major differences between the new blocks and the original blocks. First, the new ones are repairable! The adhesive used to glue the three sections together, while creating a perfectly air-tight seal, is not so strong that the unit is impossible to break apart without causing irreparable damage. Second, the pouches are better. Since the pouch is more air-tight, there is less vacuum loss. This increases the overall efficiency of the player system. Third, the valve stem is lighter. This makes the valve faster, increasing the repetition characteristic of the unit. Fourth, the valve clearance is set to 0.035". As compared to the original units, which were gapped anywhere from 0.040" to over 0.050", the narrower valve gap significantly decreases the transient losses that occur as the valve changes state (from "Off" to "On" and back to "Off"). Fifth, instead of a glued-in nipple that was pointed either left or right, the nipple is placed in middle of the block. Also, an 'adjustable' elbow is used instead of a straight nipple. This allows the user to point the nipple in any direction that is desired, making it 'universal'.

Although the new block valves may seem a little pricey, they are worth every penny. Each valve is thoroughly tested before it is sold. Each valve block is unconditionally guaranteed for five years. So, if you are not 100% satisfied, send it back for a replacement or a refund. Upon request, we will also include the Mounting & Repairing Instructions, and there is now information on that web page about Testing a Block Valve.

The cost per block is $17.95. However, there is a minimum purchase requirement of TWO blocks. The minimum Shipping Charge is $7.15 for USPS Priority mail/w Delivery Confirmation. The cost for 20 blocks is $320.00. The cost for 100 blocks is $1350.00 (Have a Question? Write to John A. Tuttle - Click Here to Send an Email)

Available while they last: We have purchased a small cache of original Aeolian block valves that were never used. They came from the Classic Player Piano Co. after they purchased the rights to the Universal player mechanism in the 1990's. If you're interested in any of these blocks, visit the Original Aeolian Block Valves page -click here.

To Place An Order - Click Here for the Secure Order Form!
Type the number and type/name of blocks you desired in the Comments Box of the order form.
