Below are pictures and measurements of the used take-up spools that are available. The mechanism that each of these spools fit into is unknown. All spools are being sold "AS IS". What you see is what you get! The shipping cost depends on the location to which the spool is being shipped. Unless otherwise requested, the spools will be shipped by USPS Priority Mail with Delivery Confirmation. The price each regular-type spool is $45.00. The price for spools used in reproducing players is $65.00 unless otherwise noted. Price includes packaging.

Contact John A Tuttle at for question or more details.

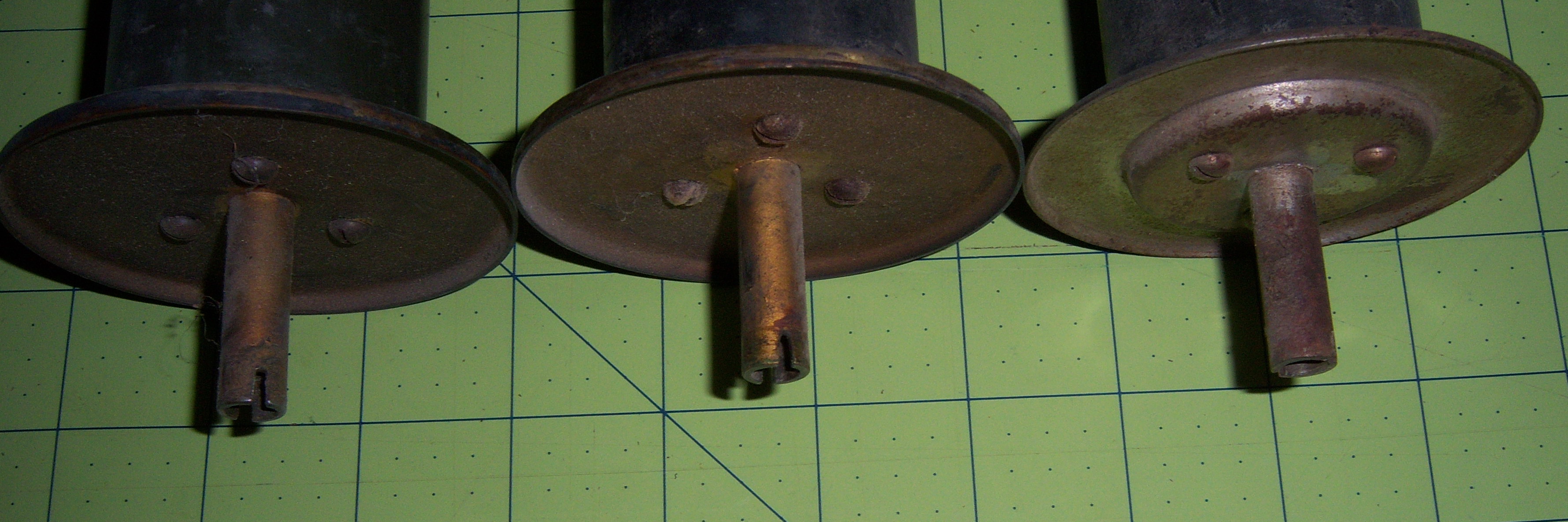

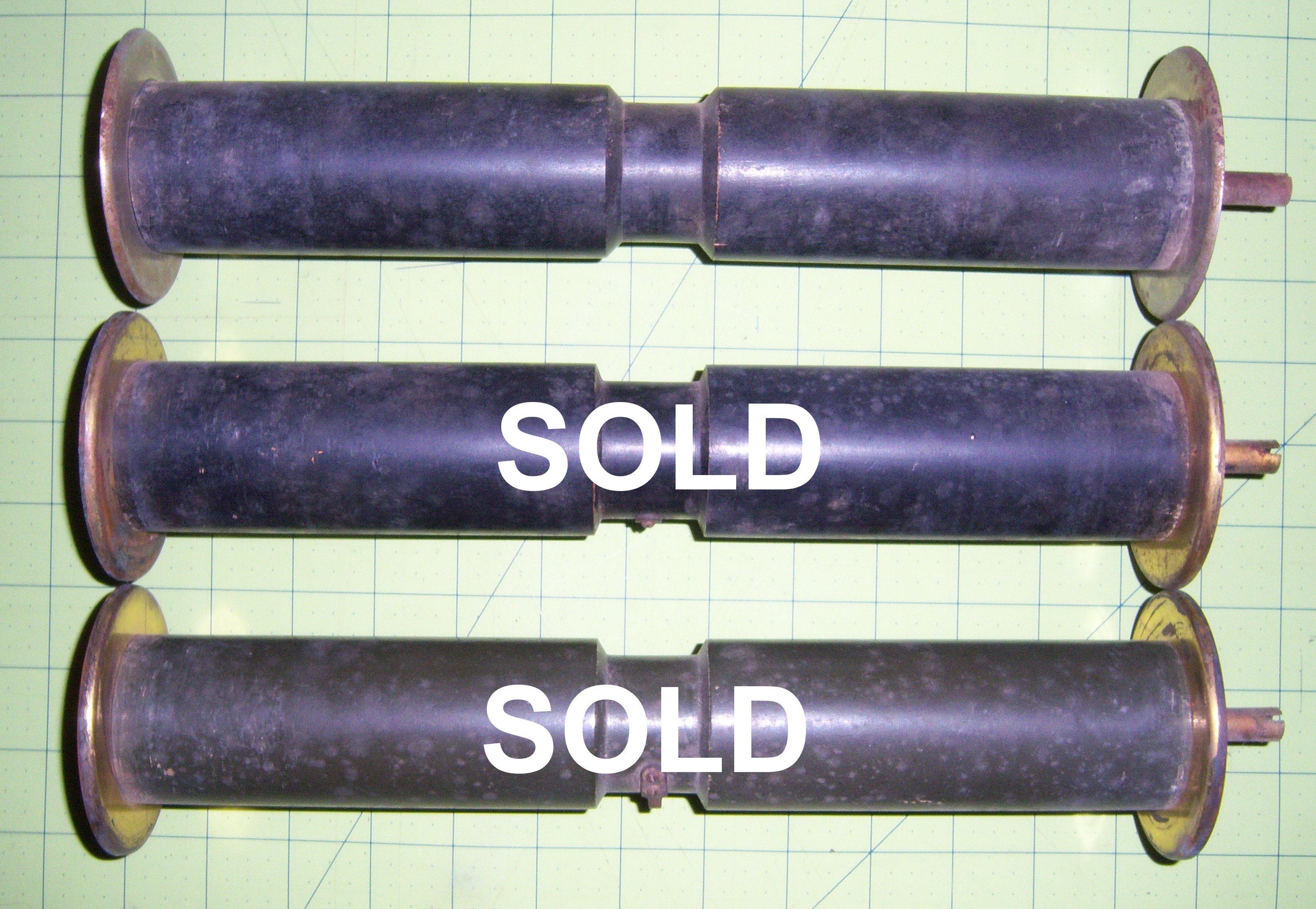

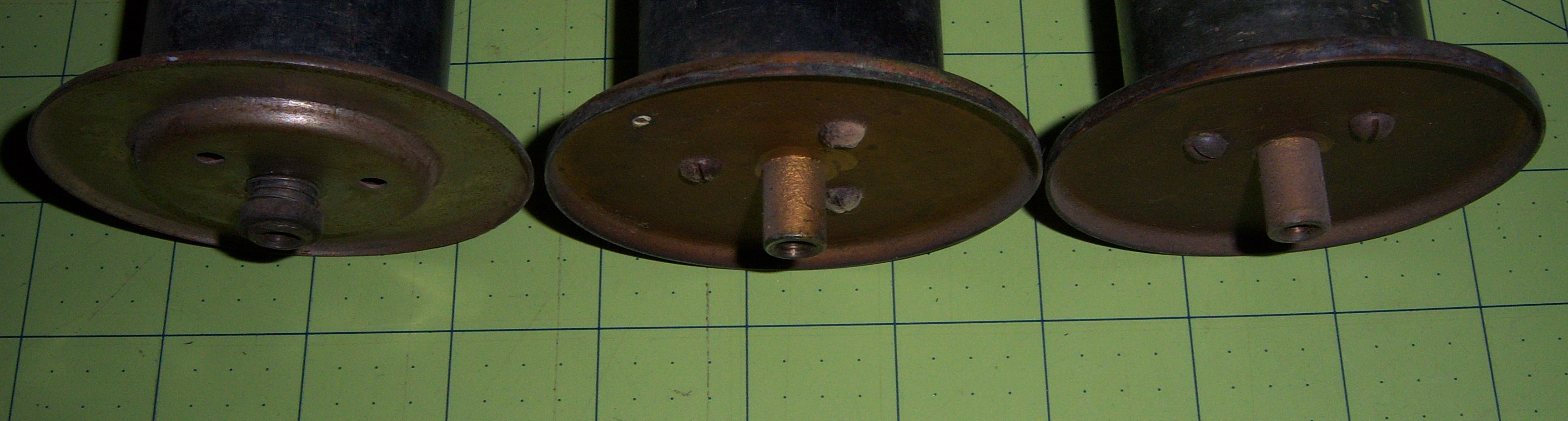

Below is Group One. In the table below, the pictures are the various dimensions of each spool. Clicking on any image will take you to the full size picture. To return to this page, simply close the new window that opens.

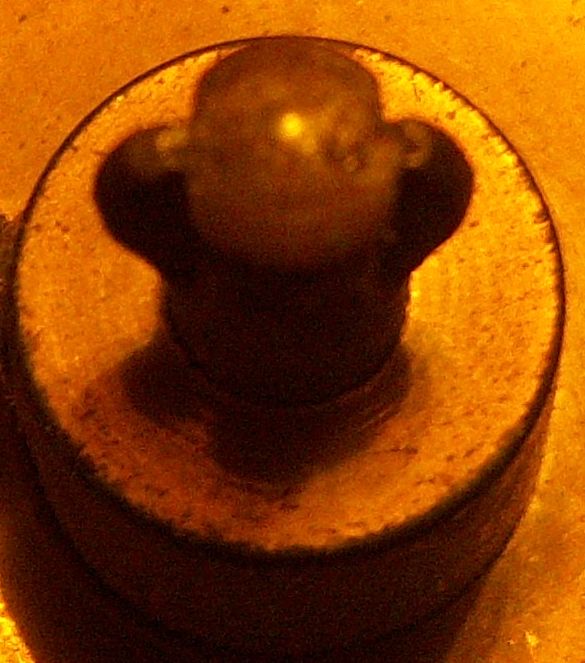

The right drive chuck for this type of take-up spool will look like this:

Legend for Specifications:

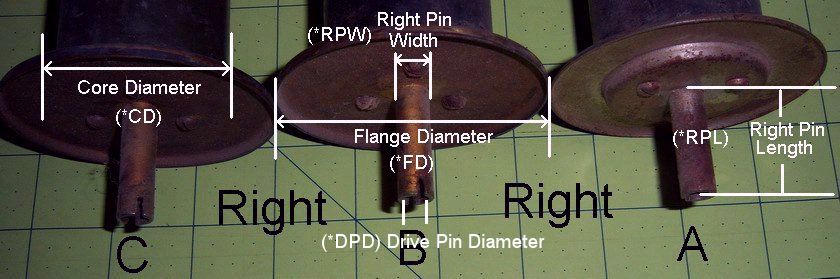

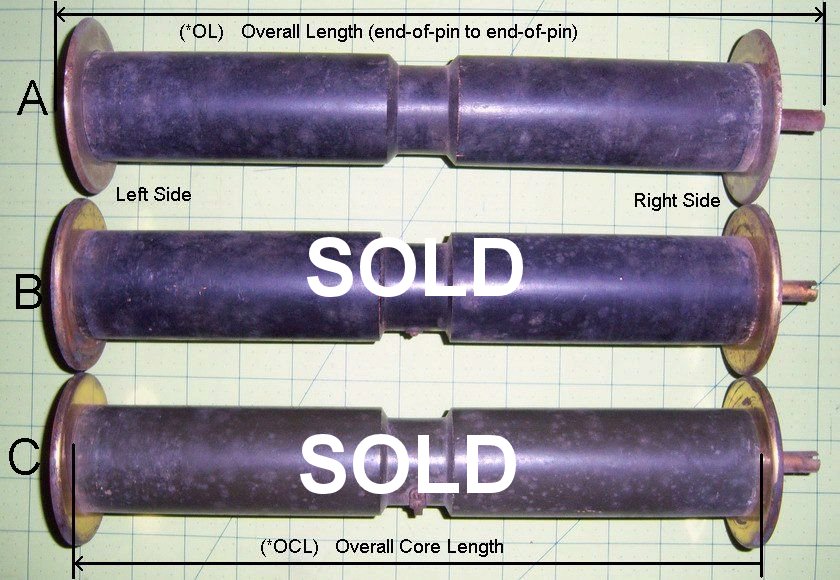

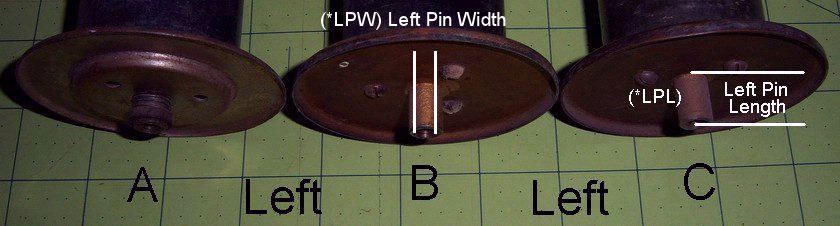

'OL': Overall Length, 'OCL': Overall Core Length, 'CD': Core Diameter, 'FD': Flange Diameter, 'RPW': Right Pin Width, 'RPL': Right Pin Length, 'LPL': Left Pin Length, 'DPD': Drive Pin Diameter, 'LPW': Left Pin Width.




NameOLOCLCDFDRPWRPLLPLLPWDPDNote/Unique Feature
A13-3/8"11-1/4"1-29/32"3-1/32"3/8"1-3/16"3/8"1/4"1/4"Spring-Loaded Flange
B13-1/4"11-3/8"1-29/32"3"3/8"1-1/4"17/32"1/4"1/4"black
C13-1/4"11-3/8"1-29/32"3"3/8"1-1/4"17/32"1/4"1/4"dark, dark green

- - - - - - - - - - - - - - - - - - - - -

Below is Group Two. In the table below, the pictures are the various dimensions of each spool. Clicking on any image will take you to the full size picture. To return to this page, simply close the new window that opens.

The right drive chuck for this type of take-up spool will look like this:

Legend for Specifications:
'OL': Overall Length, 'OCL': Overall Core Length, 'CD': Core Diameter, 'FD': Flange Diameter, 'RPW': Right Pin Width, 'RPL': Right Pin Length, 'LPL': Left Pin Length, 'DPD': Drive Pin Diameter, 'LPW': Left Pin Width.




NameOLOCLCDFDRPWRPLLPLLPWDPDNote/Unique Feature
D13-1/4"11-3/8"1-29/32"3-1/64"7/32"3/4"23/32"7/32"5/16"pin length adjustable
E13-1/16"11-7/16"1-25/32"2-15/16"13/64"13/32"1/2"13/64"37/128"veneer missing on left
F12-7/8"11-3/8"1-5/8"2-15/16"3/16"5/16"39/64"3/16"9/32"chip on right flange

- - - - - - - - - - - - - - - - - - - - -

Below is Group Three. In the table below, the pictures are the various dimensions of each spool. Clicking on any image will take you to the full size picture. To return to this page, simply close the new window that opens.

The right drive chuck for this type of take-up spool will look like this:

Legend for Specifications:
'OL': Overall Length, 'OCL': Overall Core Length, 'CD': Core Diameter, 'FD': Flange Diameter, 'RPW': Right Pin Width, 'RPL': Right Pin Length, 'LPL': Left Pin Length, 'DPD': Drive Pin Diameter, 'LPW': Left Pin Width.

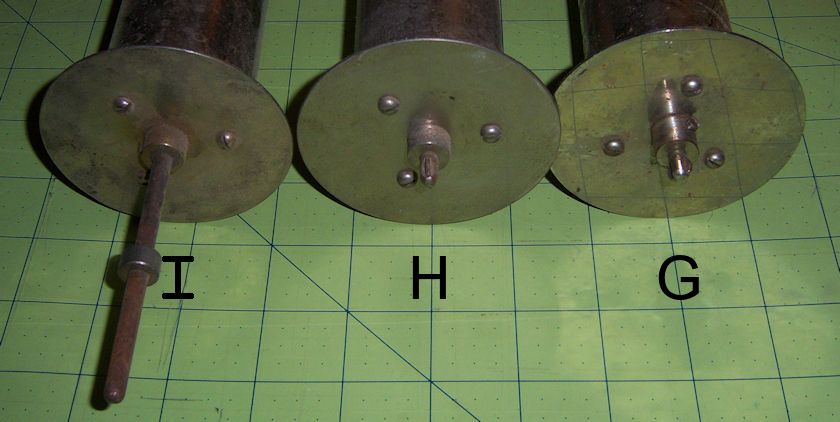

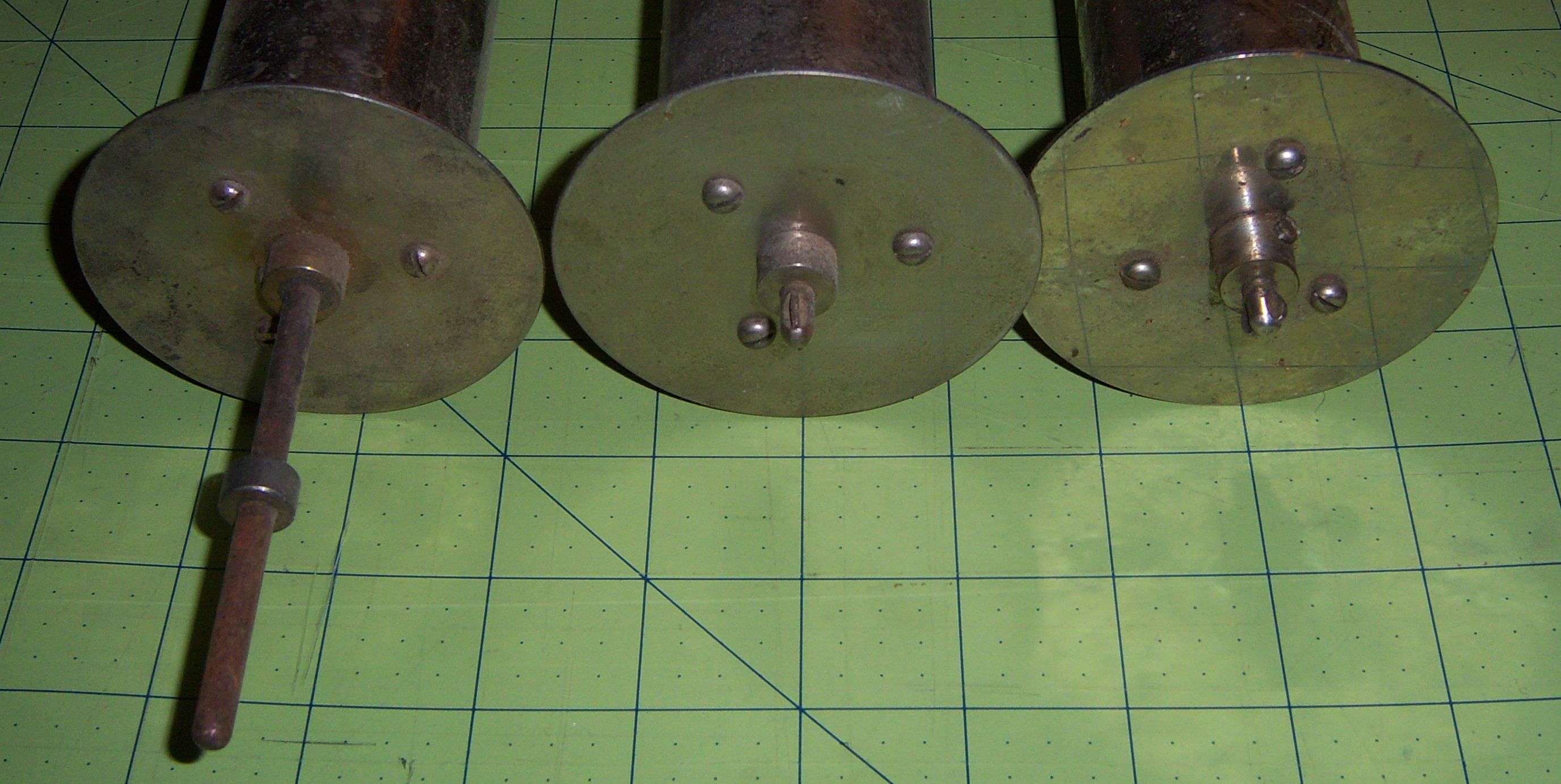

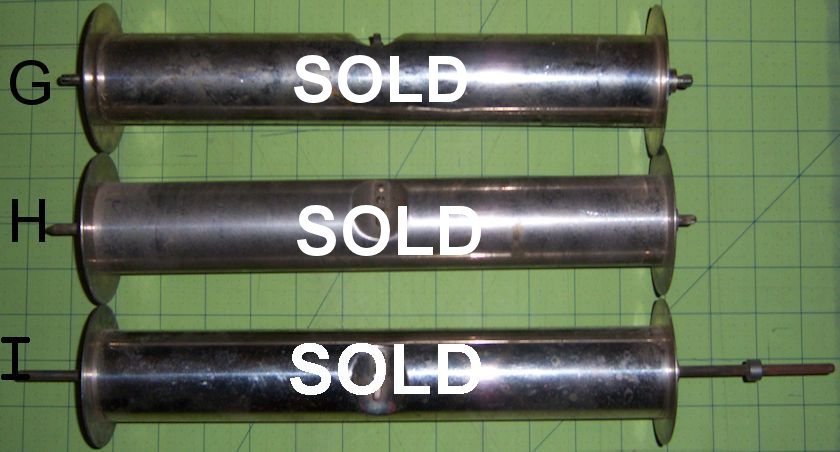

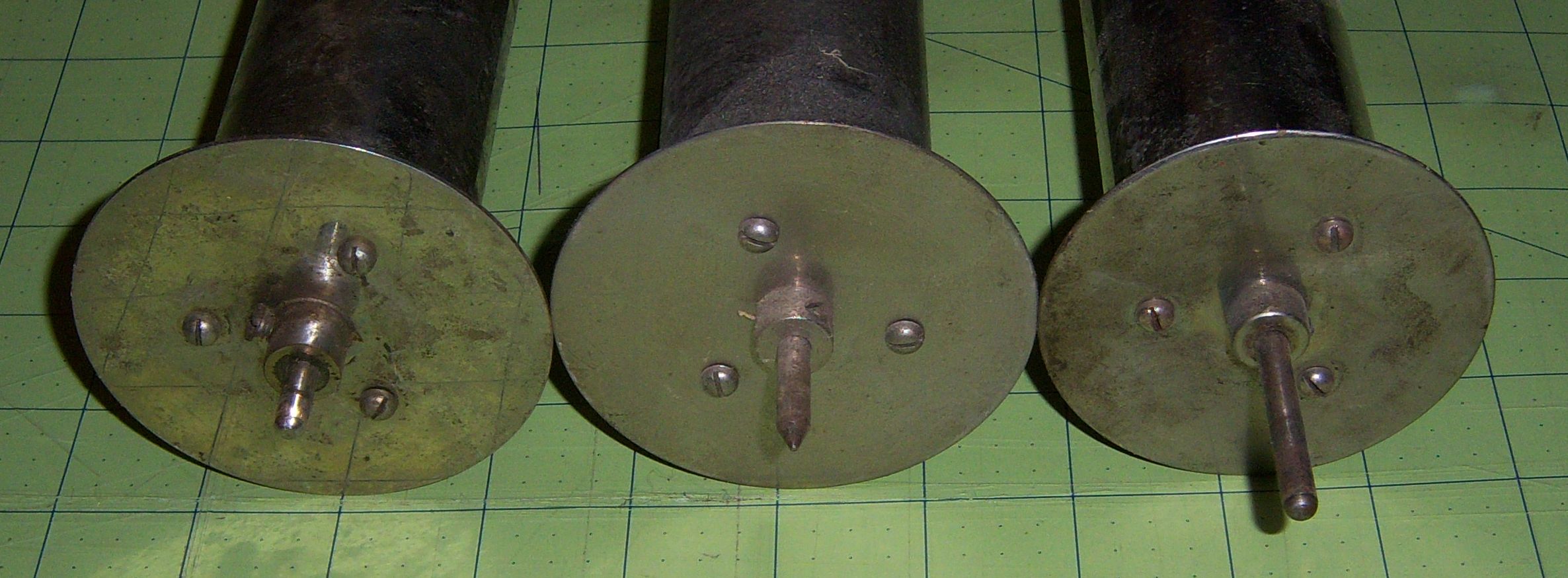

NOTE: All of these spools have a solid center rod which allows the spool to be moved to the right or left as necessary for correct centering. In other words, you can adjust the lateral position of the spool as required. Also, it's most likely that these spools are from a Baldwin Manualo player system. However, they might work in other systems.

NameOLOCLCDFDRPWRPLLPLLPWDPDNote/Unique Feature

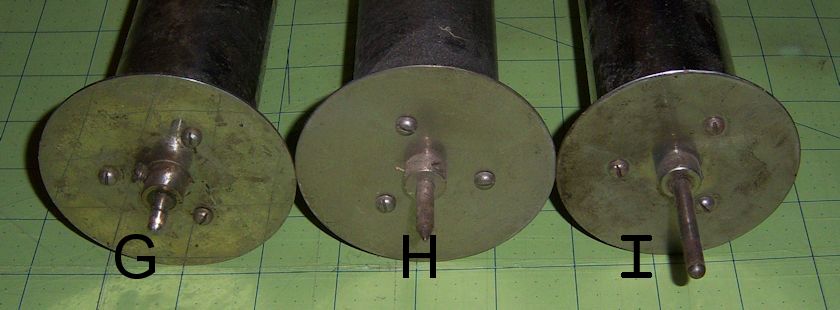

G13-3/16"11-5/16"1-7/8"3-1/8"13/64"25/32"31/32"13/64"5/16"
H13-7/16"11-3/8"1-7/8"3-3/32"27/128"23/32"1-15/32"27/128"5/16"
I16-7/8"11-3/8"1-7/8"2-59/64"27/128"3-9/16"1-13/16"27/128"27/128"

- - - - - - - - - - - - - - - - - - - - -

Below is Group Four. In the table below, the pictures are the various dimensions of each spool. Clicking on any image will take you to the full size picture. To return to this page, simply close the new window that opens.

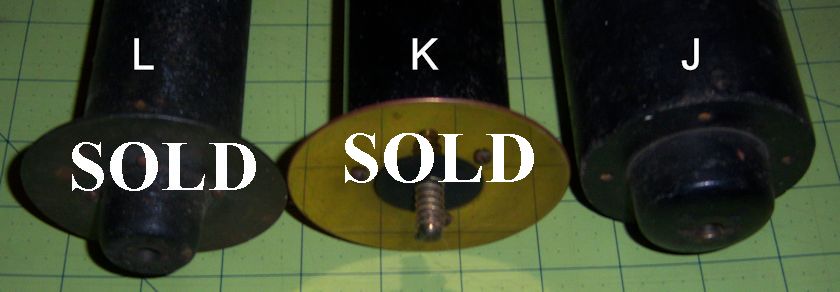

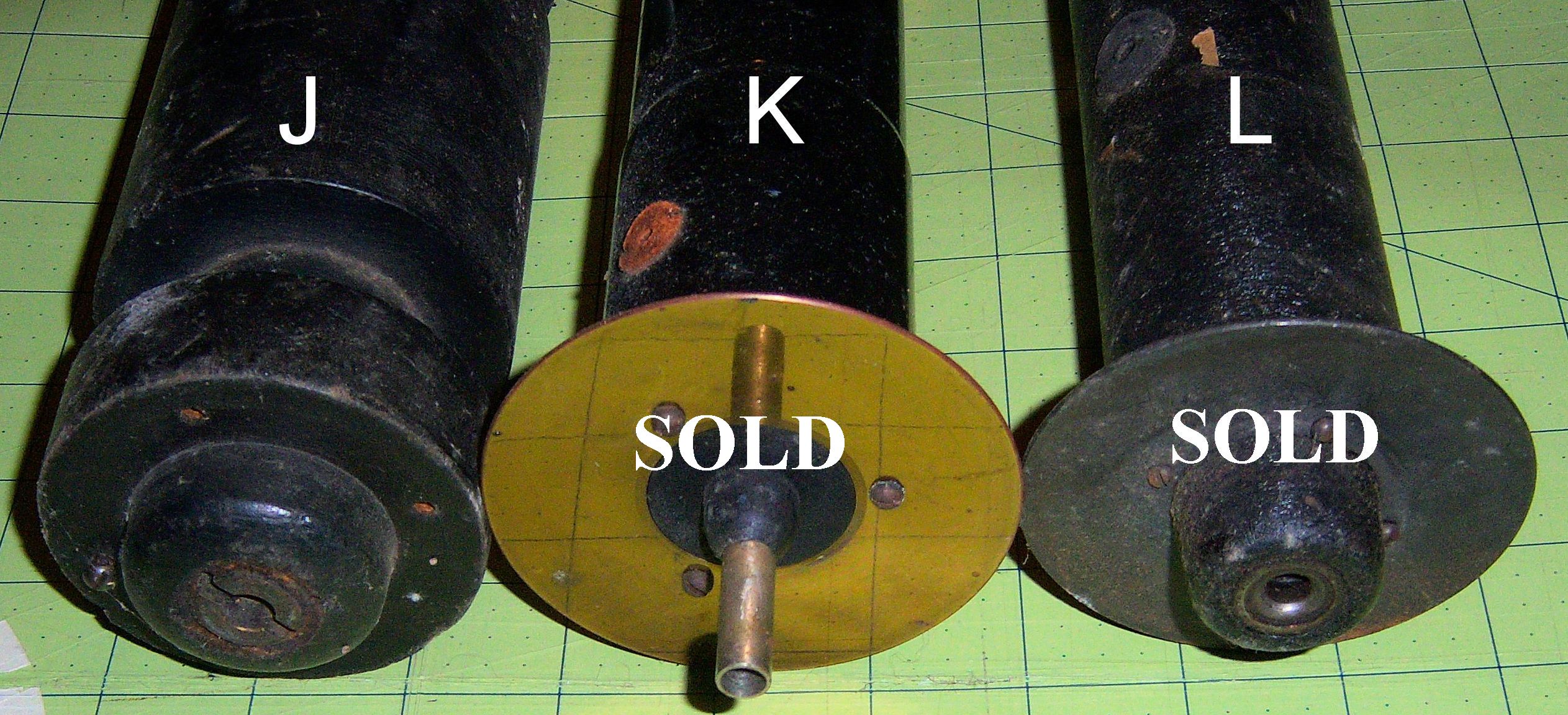

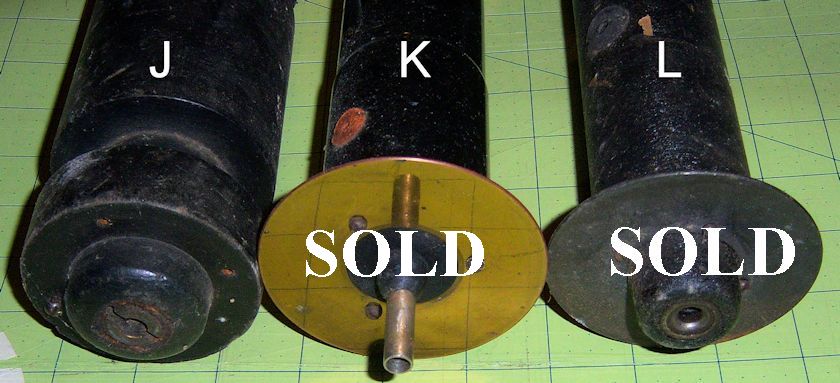

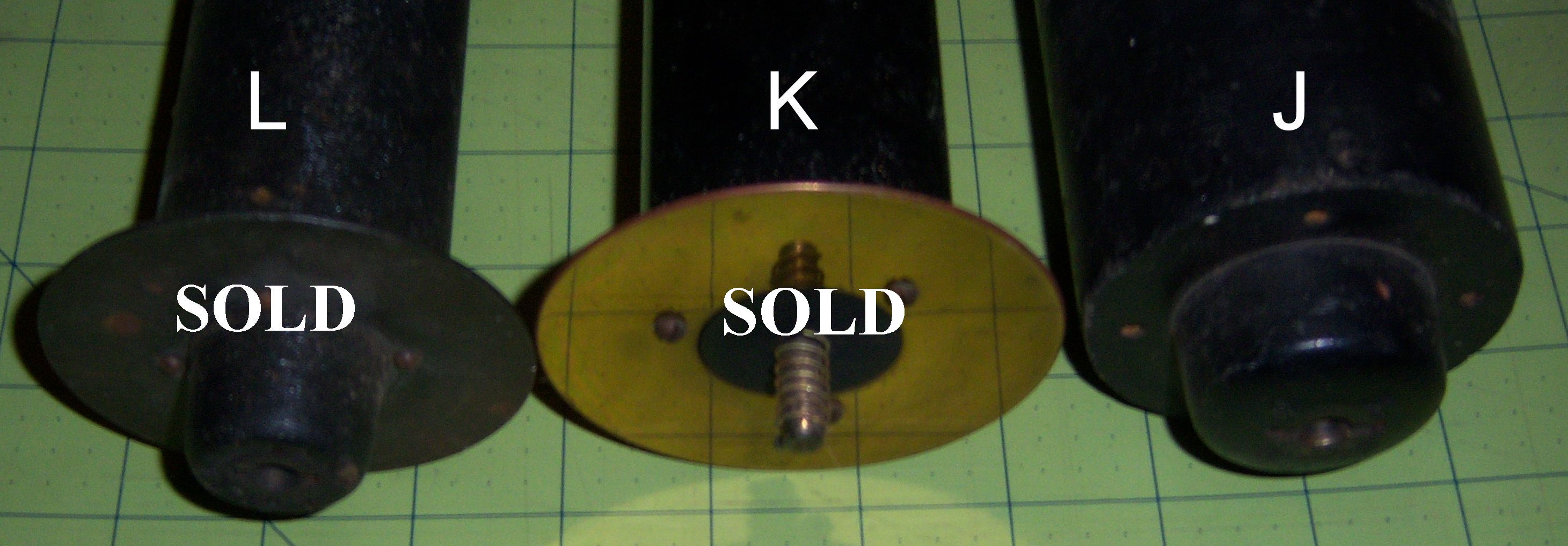

The right and left roll chucks for these types of take-up spools vary quite a bit and we do not have pictures of those chucks. Also, please note that negative numbers in the Specifications indicate there is a hole or indentation instead of a pin or a protrusion.

Legend for Specifications:
'OL': Overall Length, 'OCL': Overall Core Length, 'CD': Core Diameter, 'FD': Flange Diameter, 'RPW': Right Pin Width, 'RPL': Right Pin Length, 'LPL': Left Pin Length, 'DPD': Drive Pin Diameter, 'LPW': Left Pin Width.

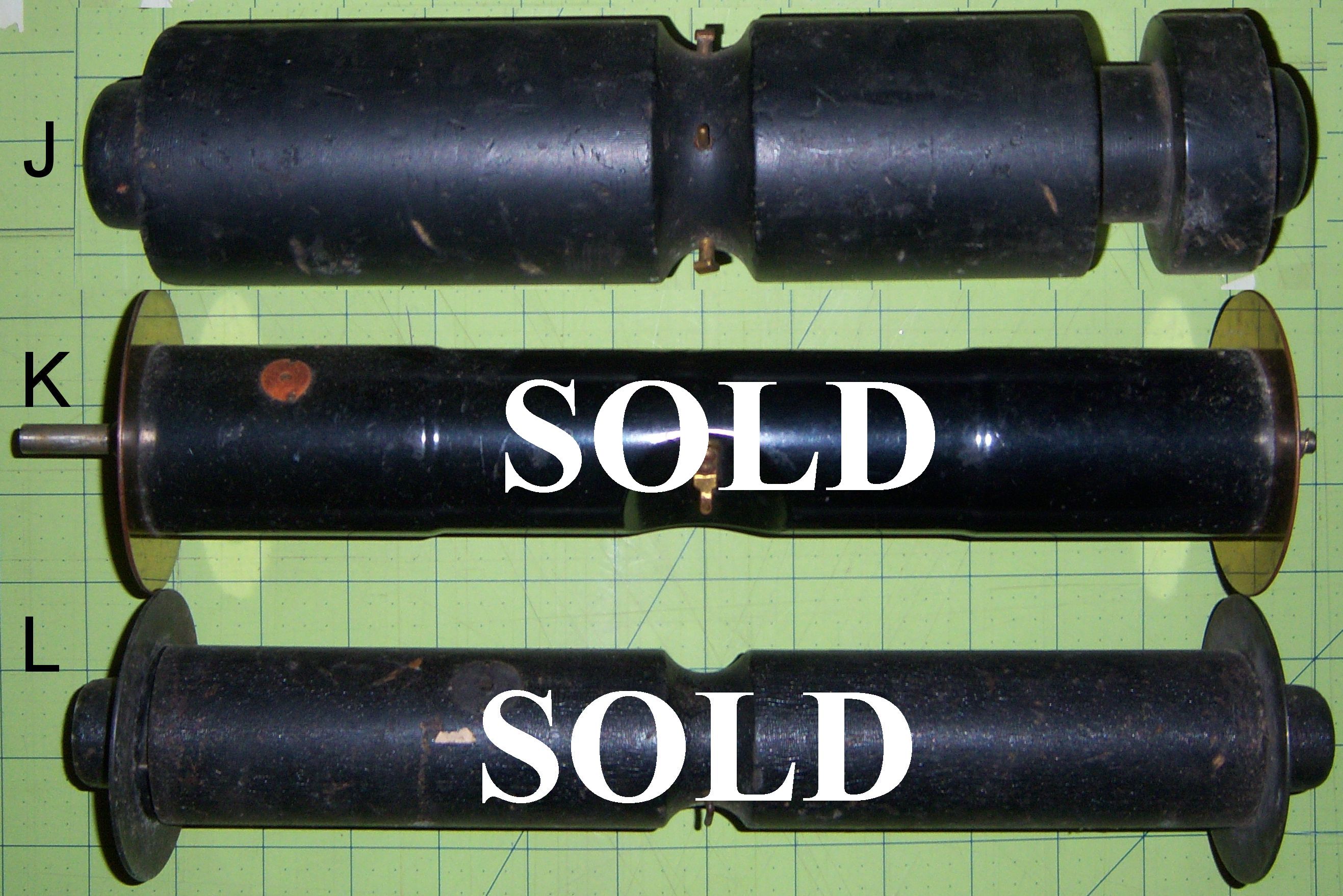

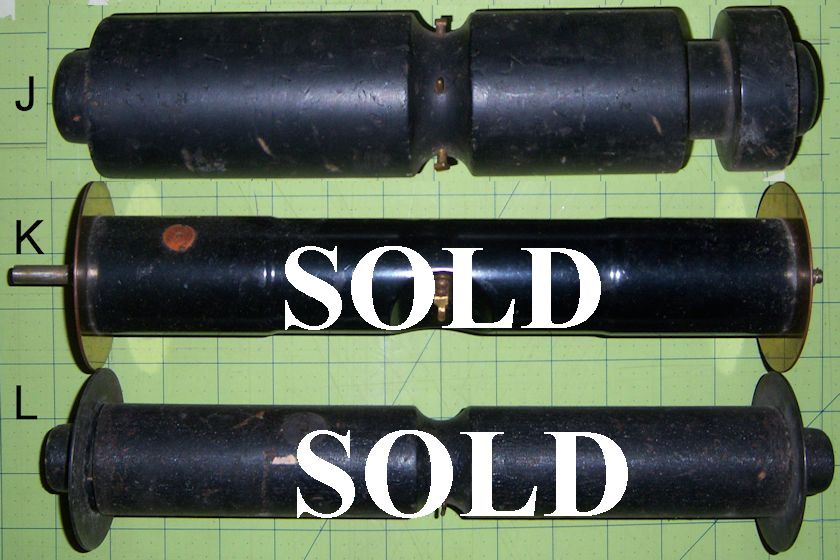

NOTE: All of these spools are believed to be from Ampico Reproducing player systems. The two with the smaller cores are most likely from an Ampico A system. The one with the large core is from an Ampico B system.

NameOLOCLCDFDRPWRPLLPLLPWDPDNote/Unique Feature
J12-3/4"11-5/16"2-5/8"N/A"5/16"-1/4"-1/4"5/16"5/8"missing flanges
K13-5/8"11-3/8"2"3-7/32"5/16"*1-13/32"11/16"1/4"13/32"metal/metal seal
L13-1/8"11-5/16"1-7/8"3-3/64"5/16"-1/4"-1/2"*5/16"1/2"leather seal

left chuck fits inside left pin -provides path for air

- - - - - - - - - - - - - - - - - - - - -
