Single-valve action. Horizontal valve with aluminum stem. Pneumatic motor is a six-point unit with all six pneumatics facing 'up'. A certain identifying feature of this unit is the motor governor which is located on TOP of the pnuematic stack at the LEFT SIDE. Both halves of the lower bellows system can be disconnected from the other and swung forward.

Update June 5, 2020. We have just come into possession of a fair amount of information and pictures of the player system found in the Schumann player piano. More information will be added as time permits. Below are the patents we've located. Click on the link to see the patents.

US625744.pdf (Transposing Trackerbar)
US725941.pdf (Transmission -never used)
US821917.pdf (Stack)
US1011552.pdf (Air Motor Stopping Device)
US1011646.pdf (Controls Panel)
US1087627.pdf (Air motor)

Here are some pictures of the various components in the player system. Click on the image to see the full size picture. We also have the beginnings of what will eventually become a tubing diagram -click here

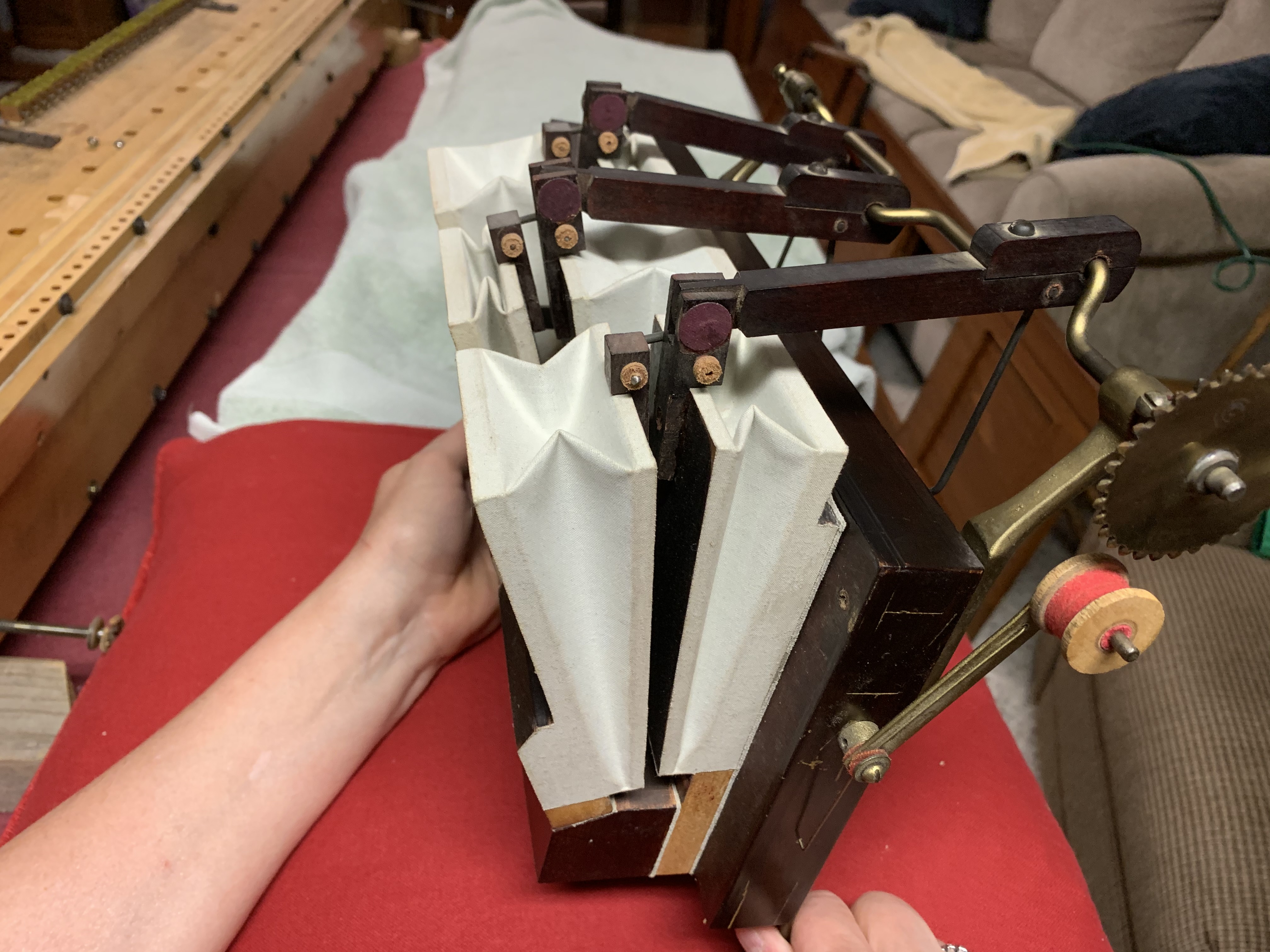

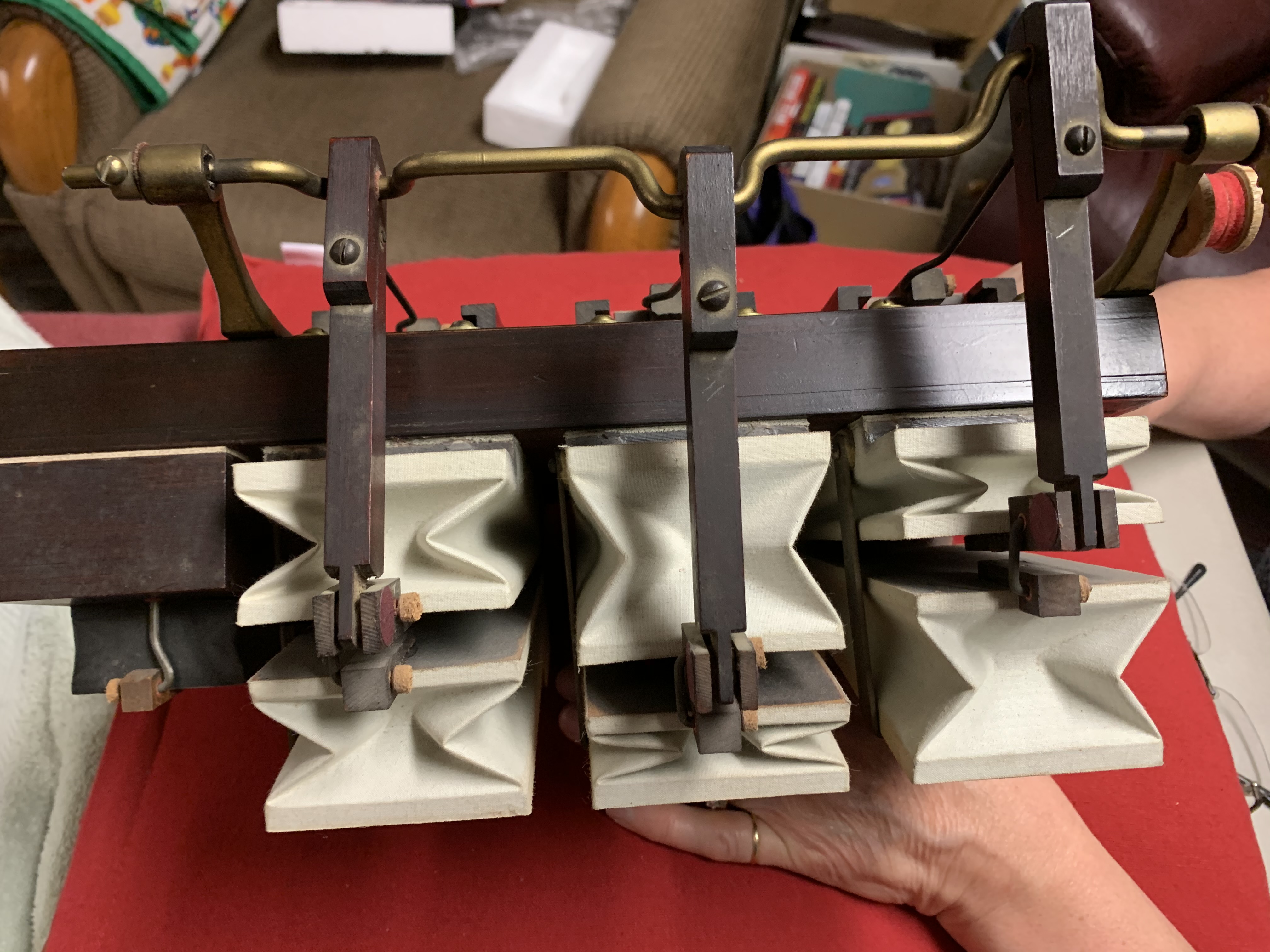

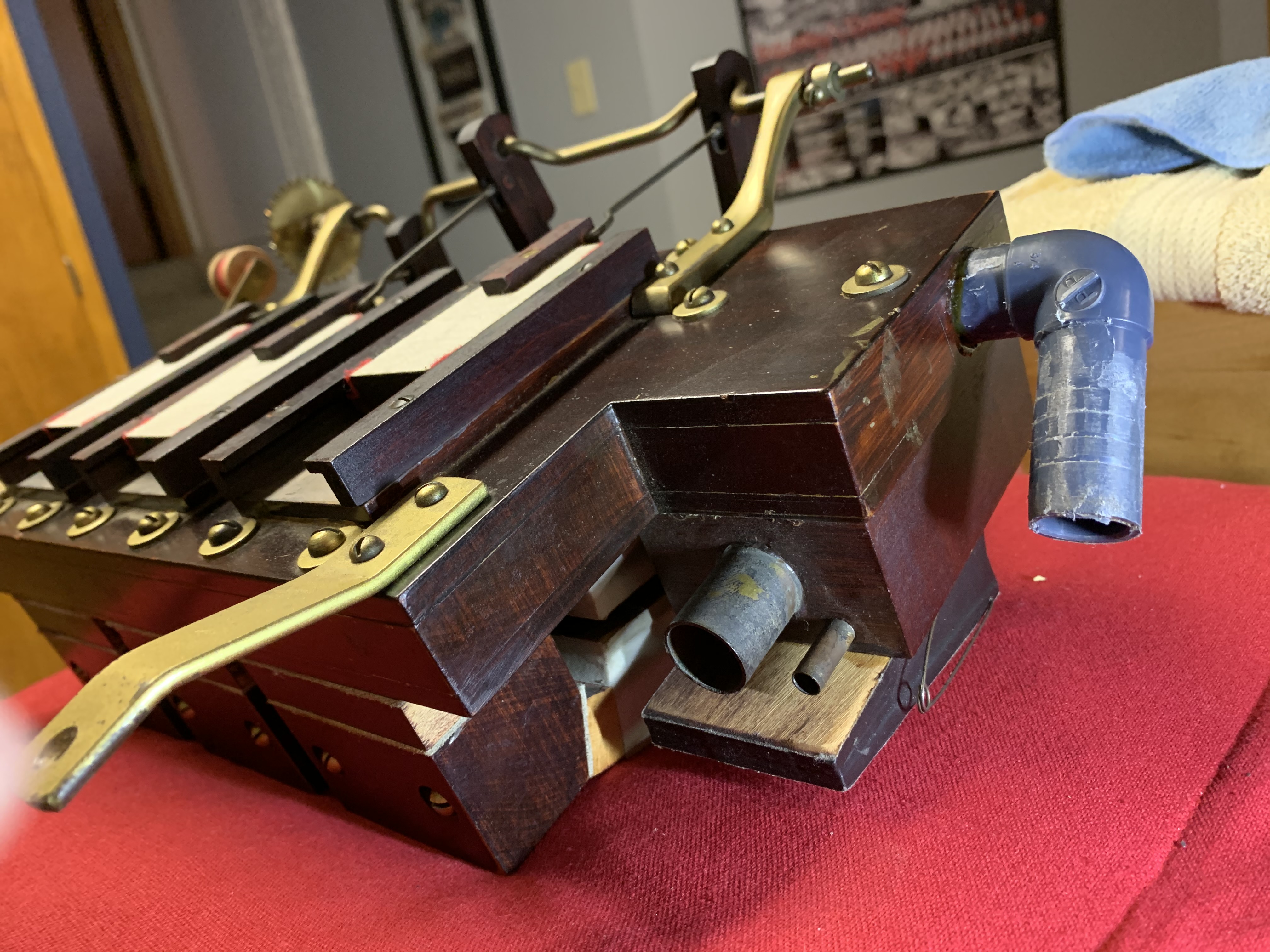

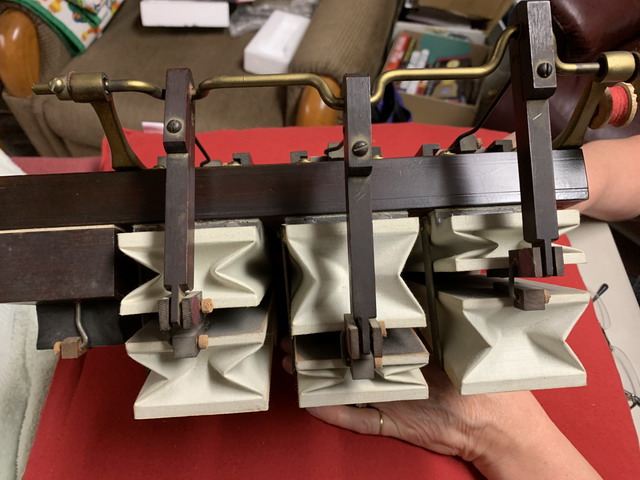

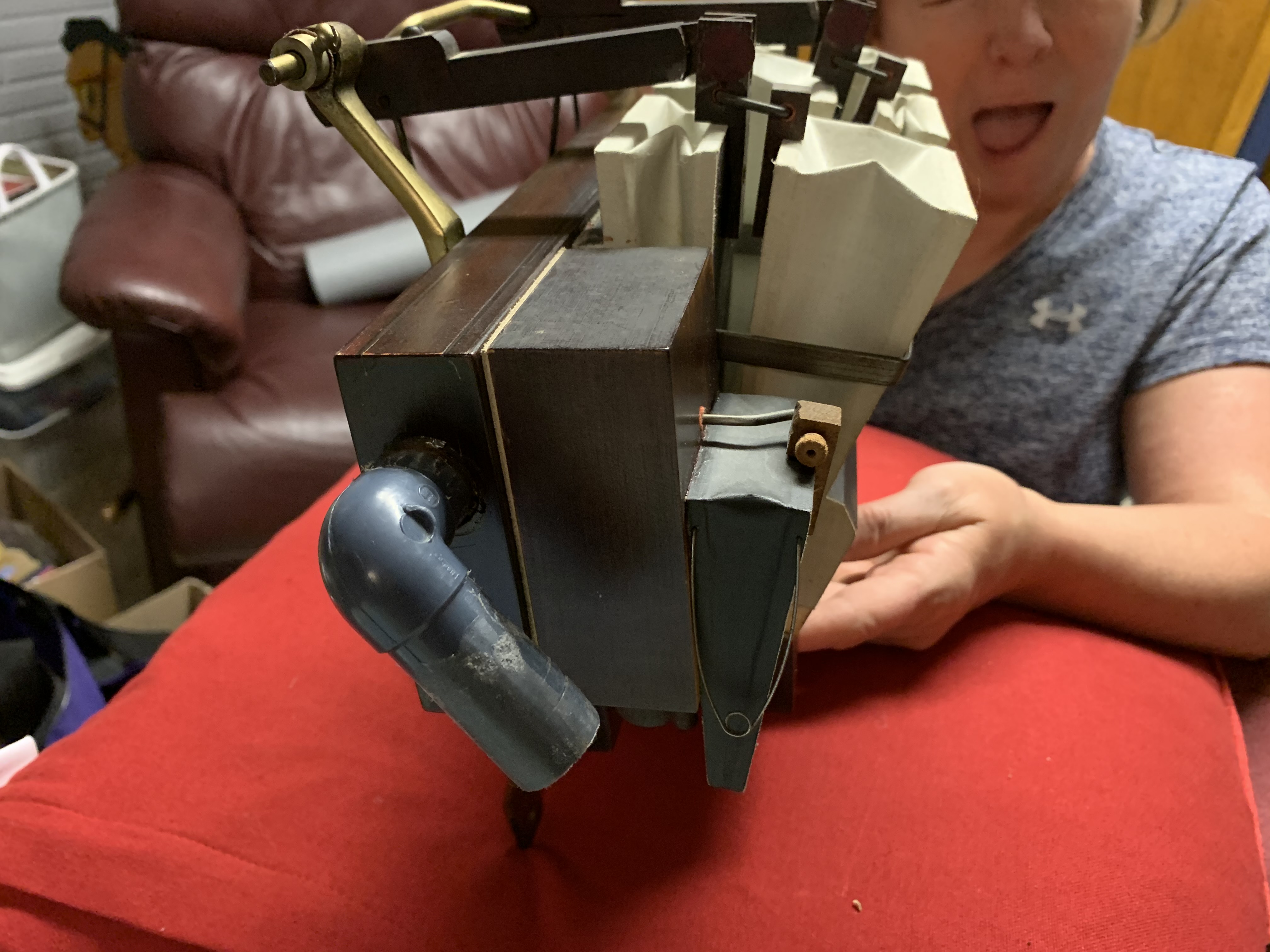

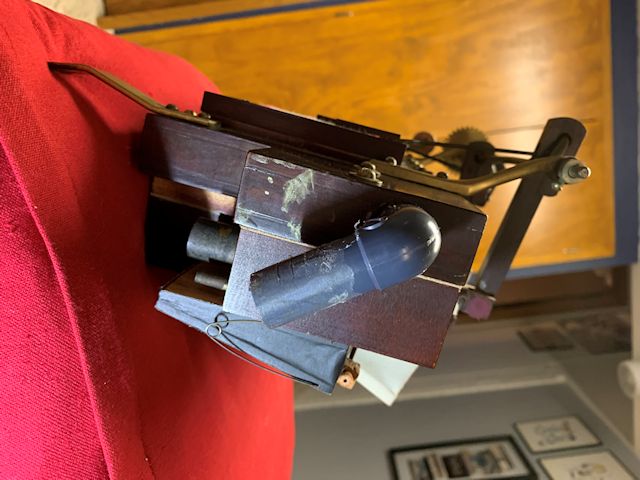

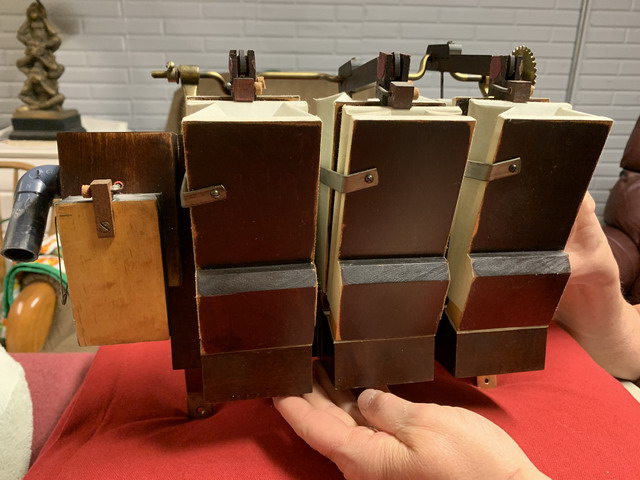

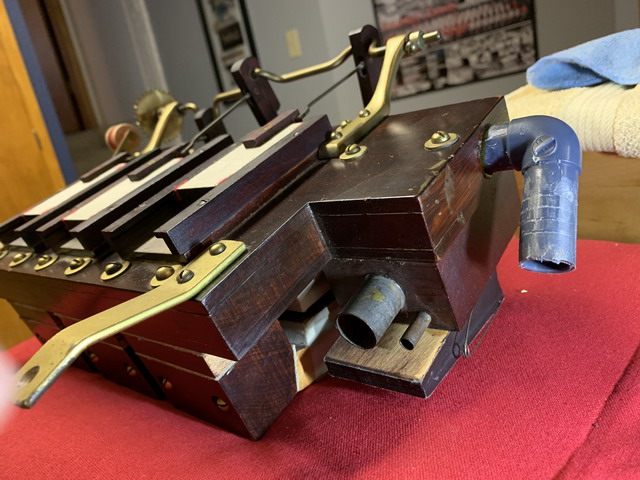

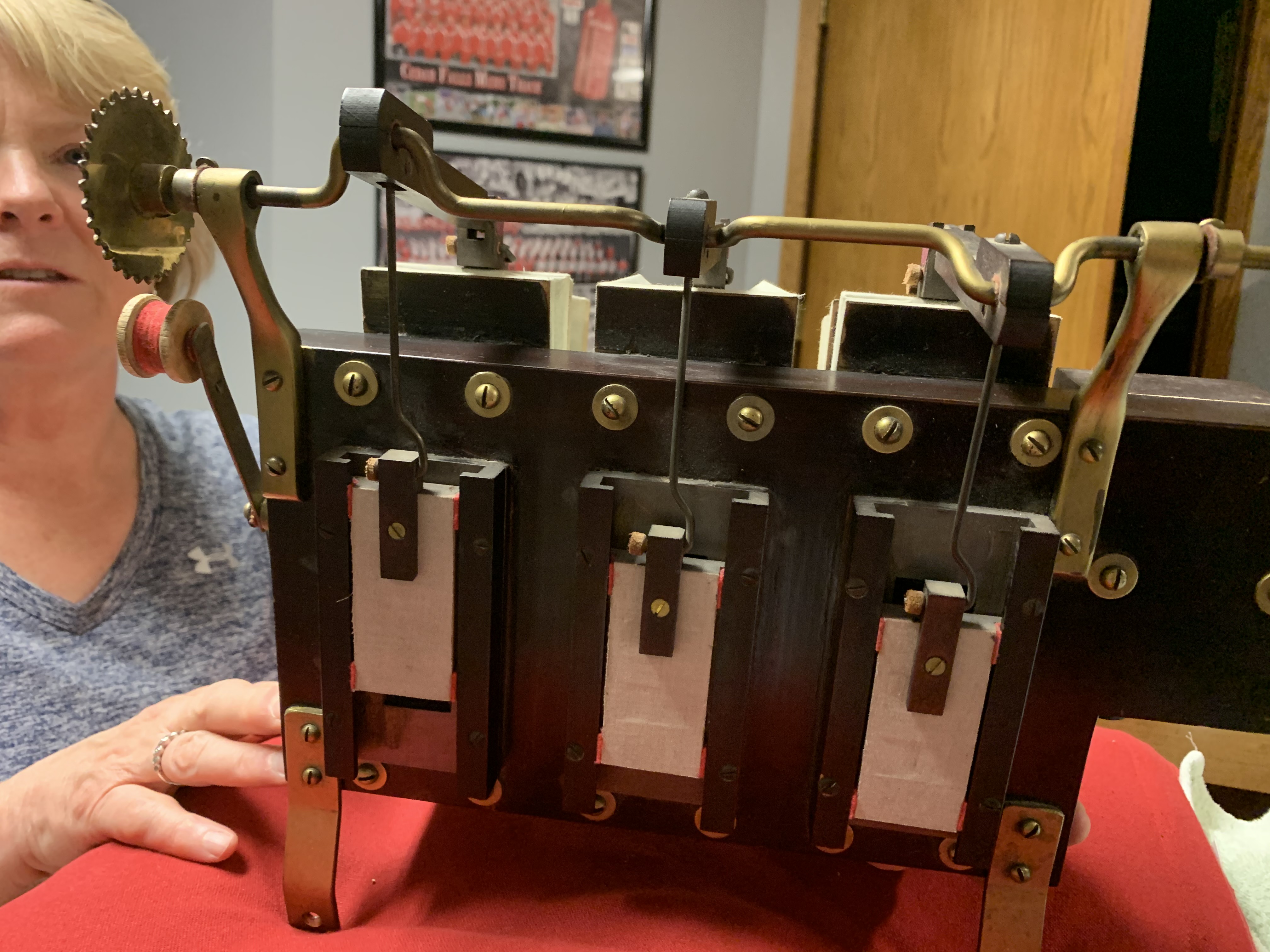

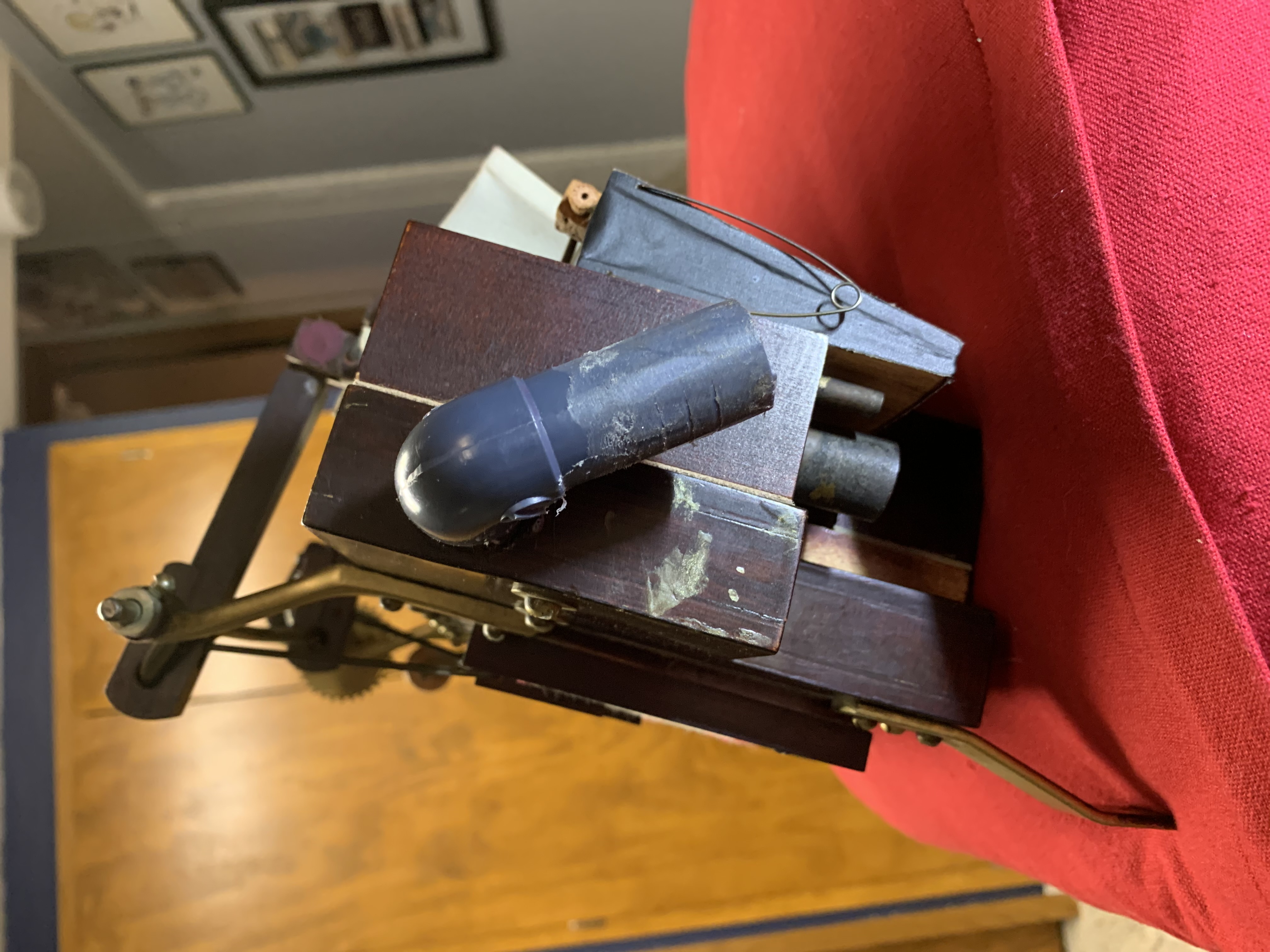

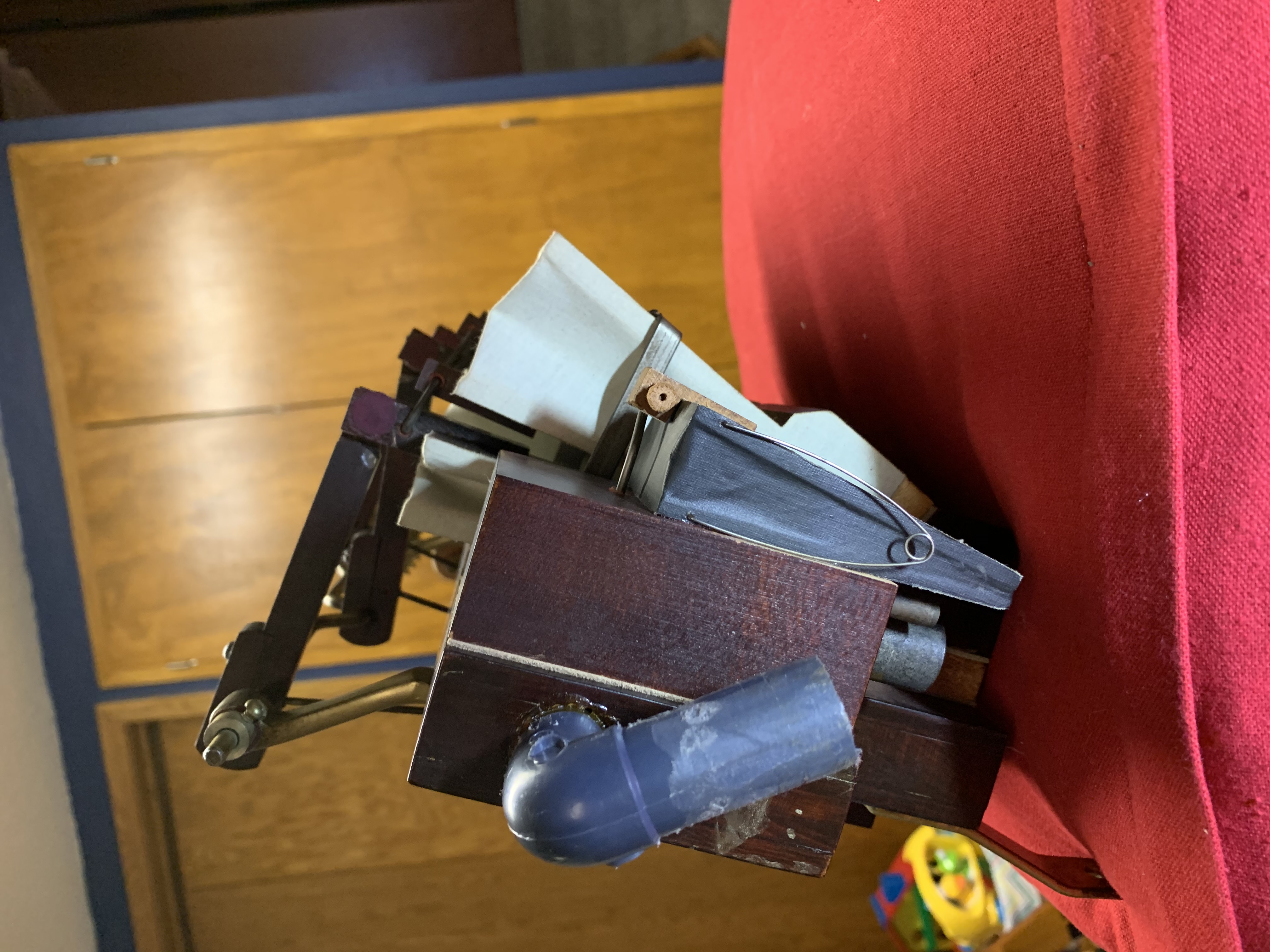

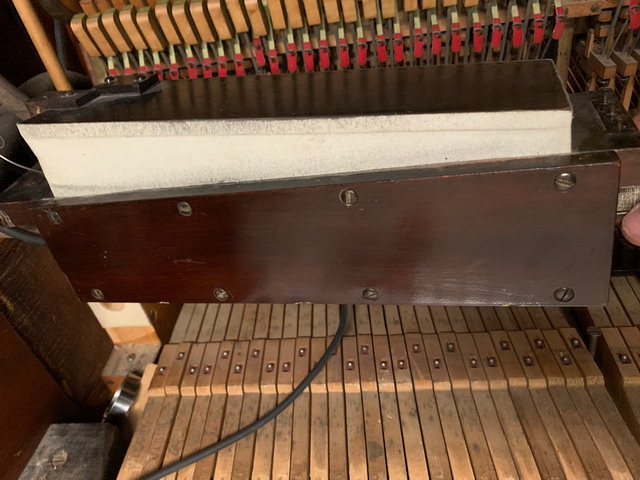

Air Motor and Governor

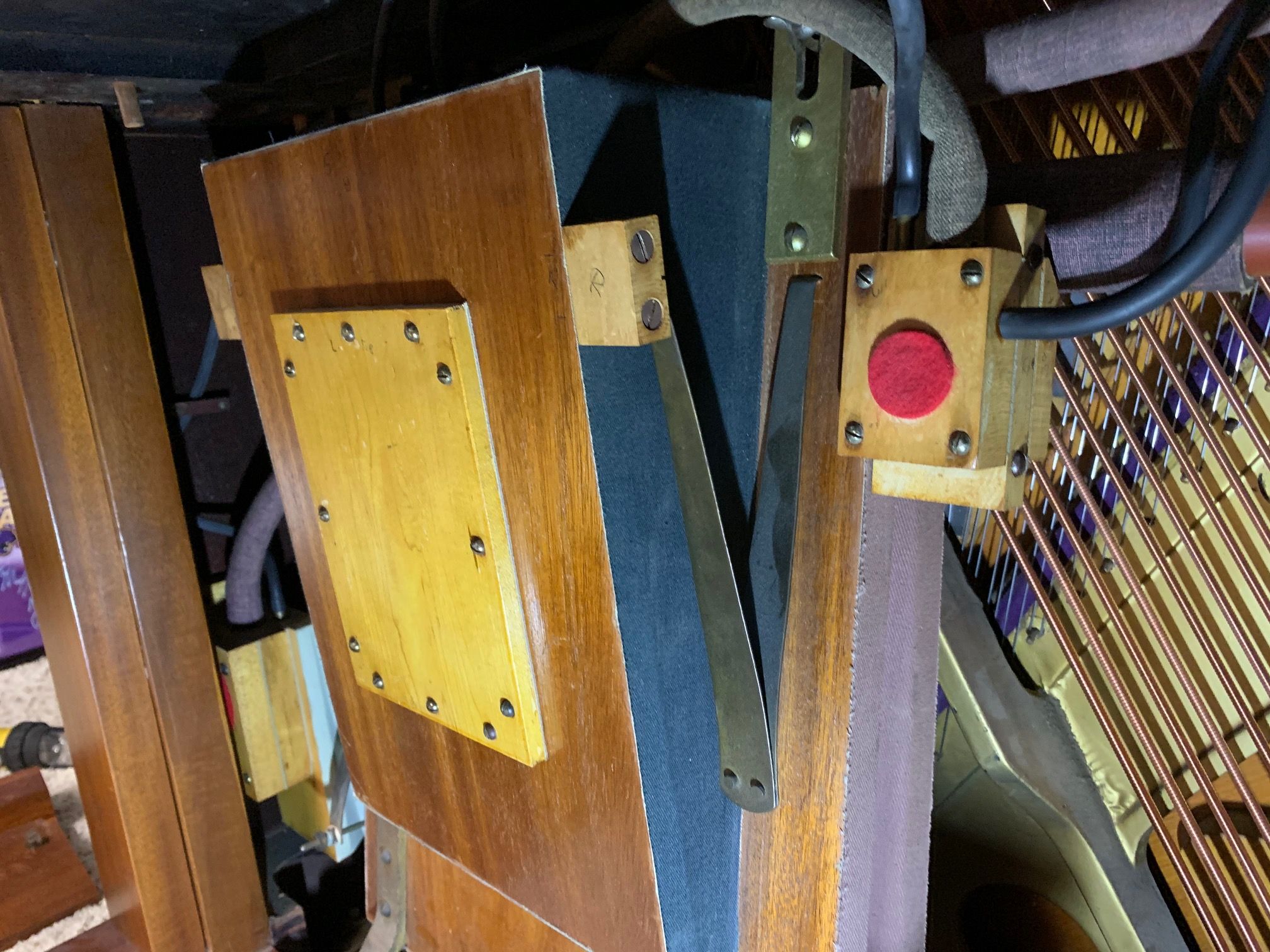

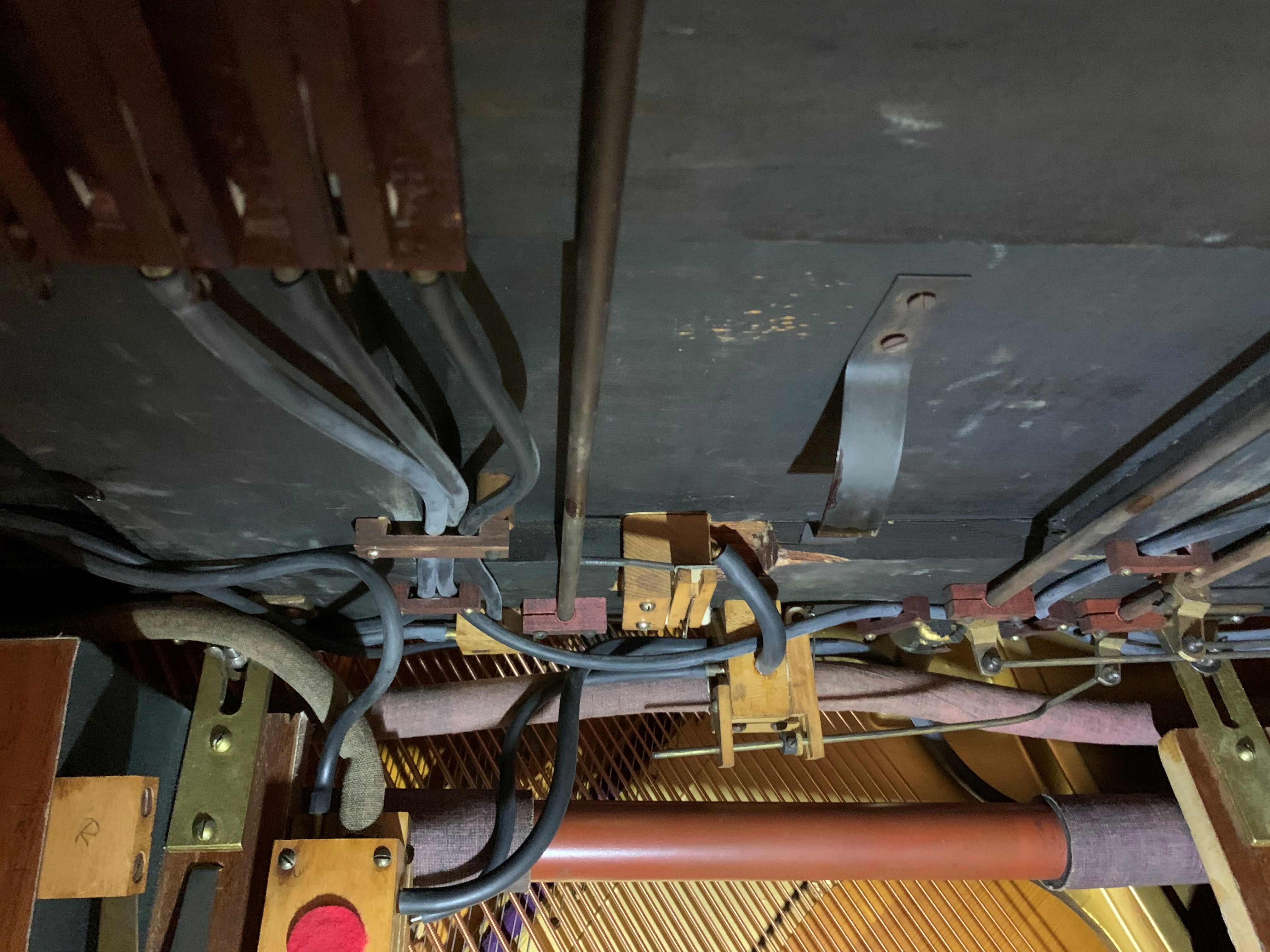

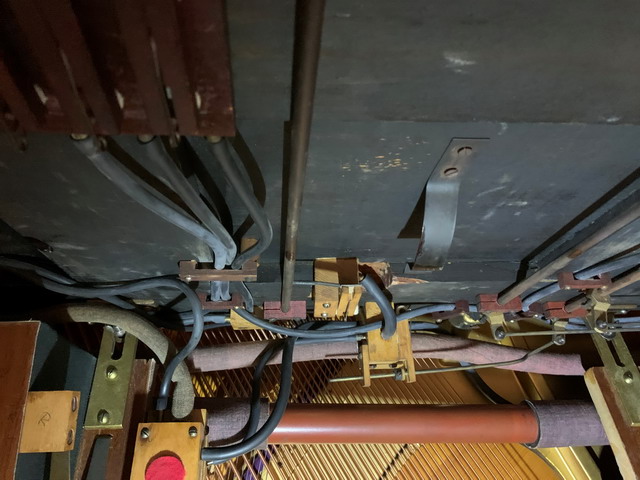

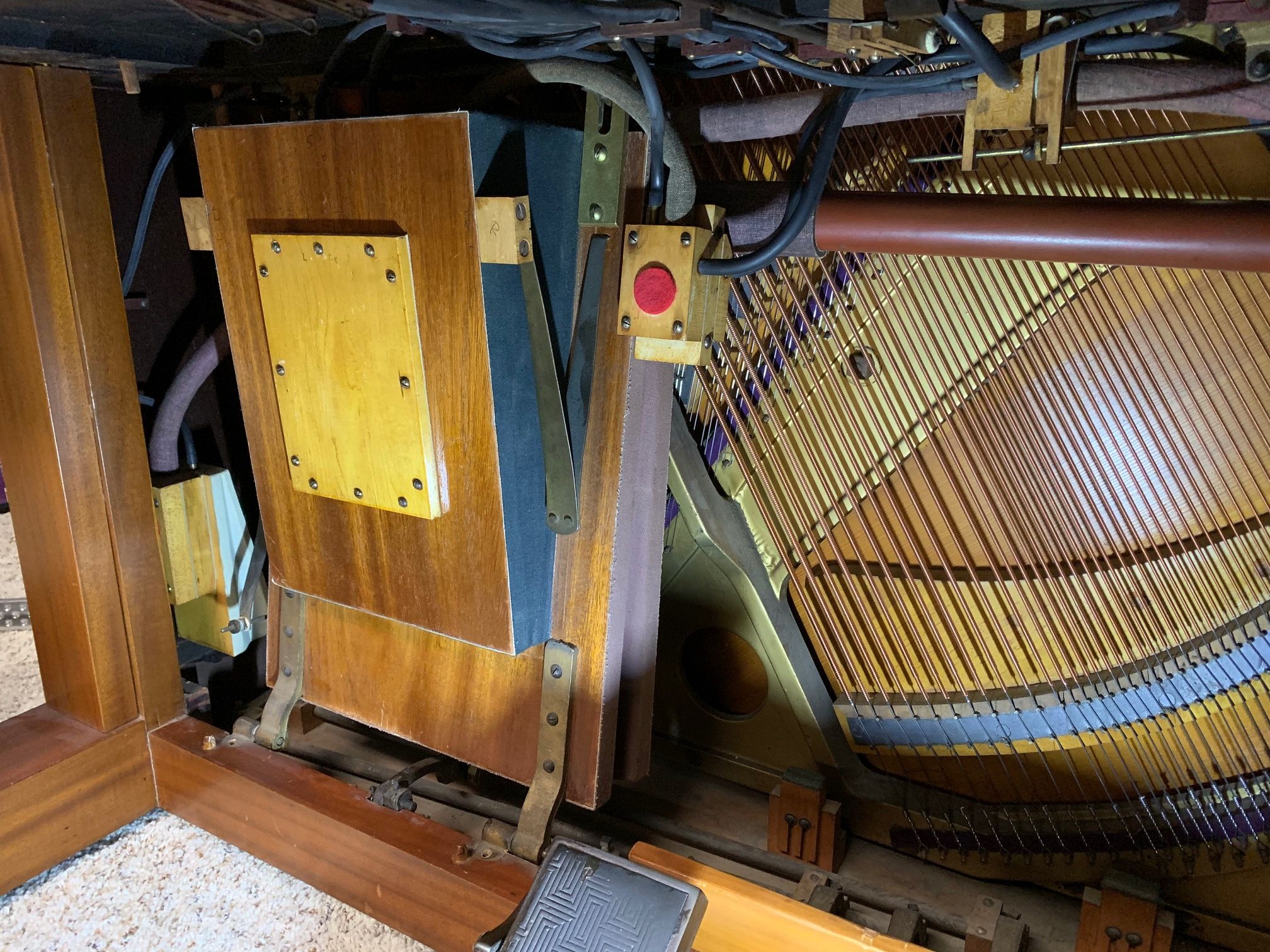

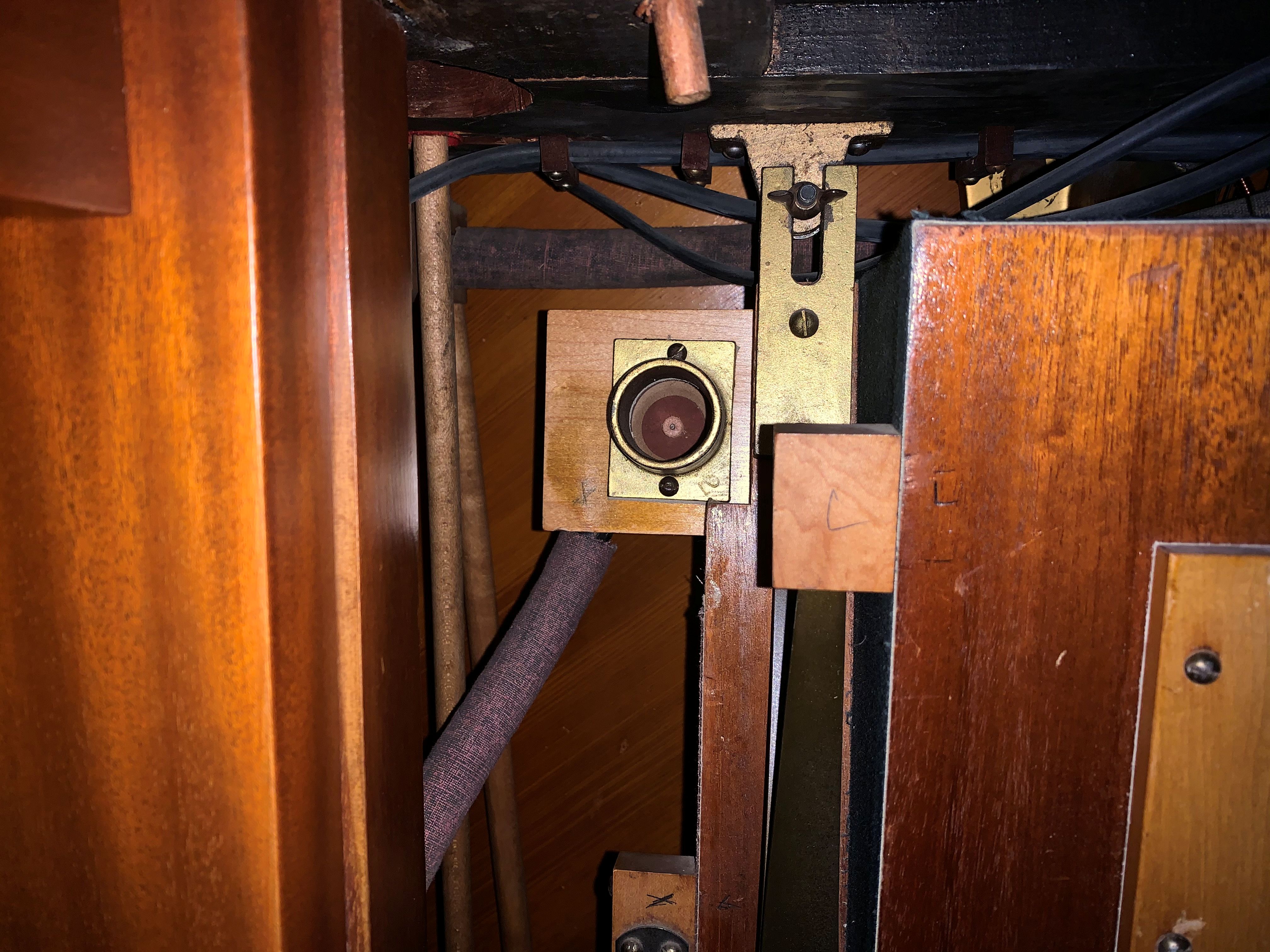

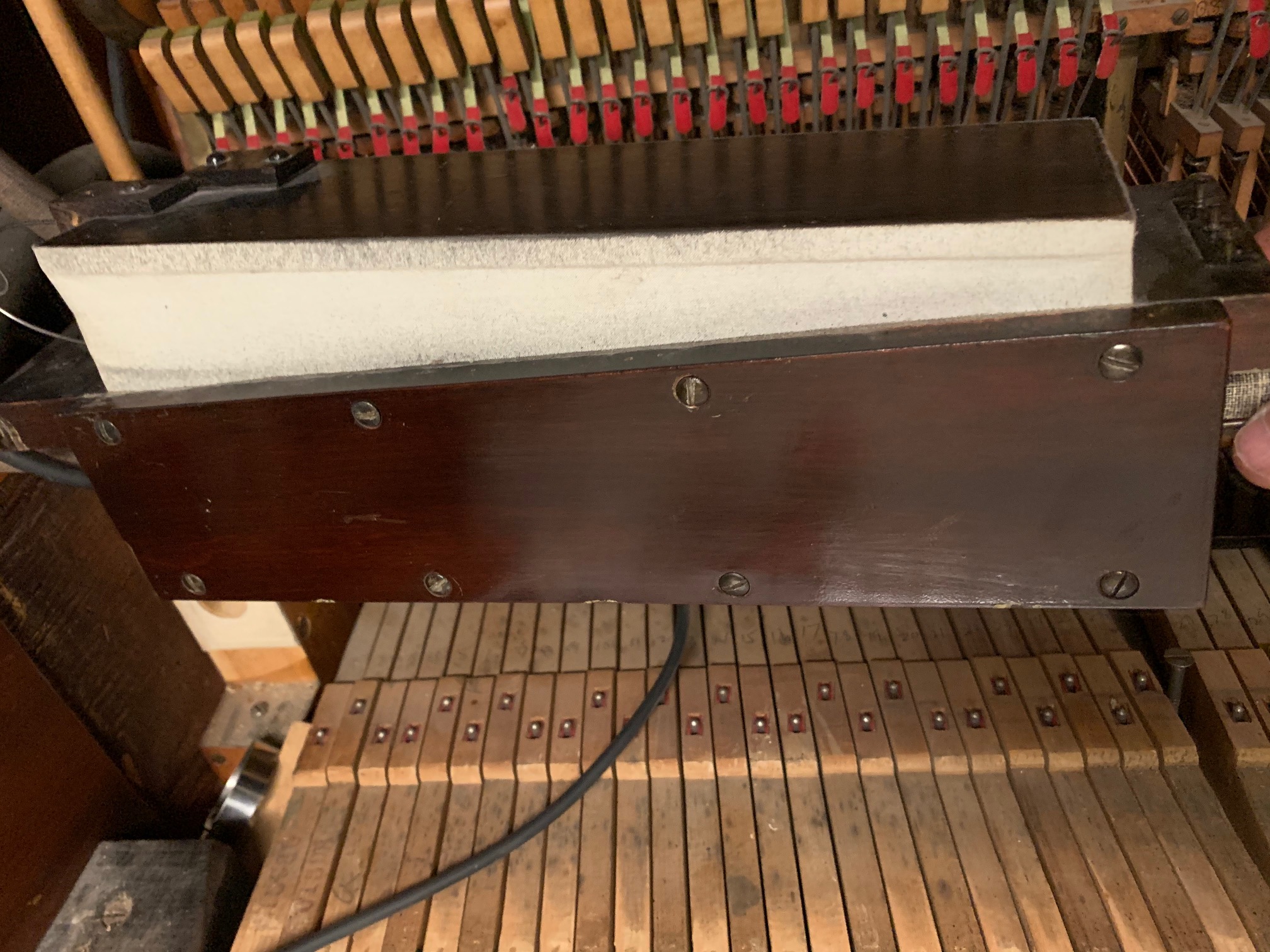

Exhauster Assembly, etc.

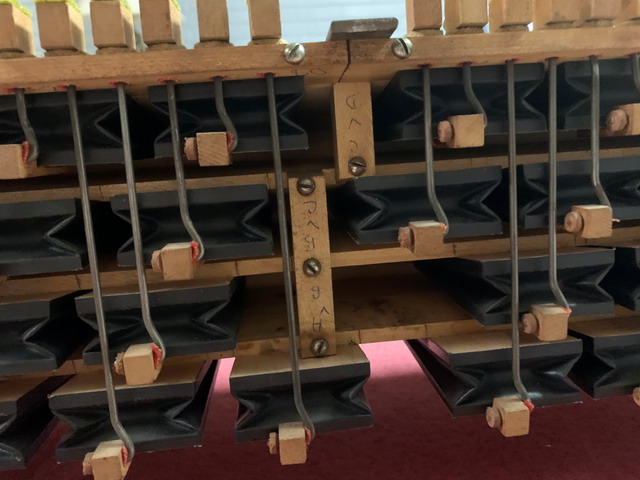

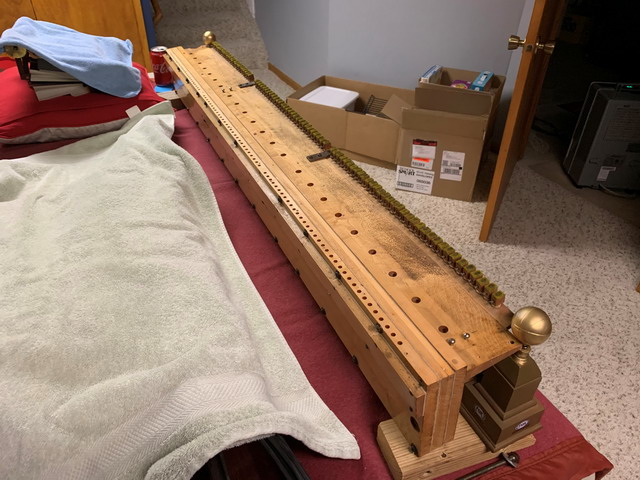

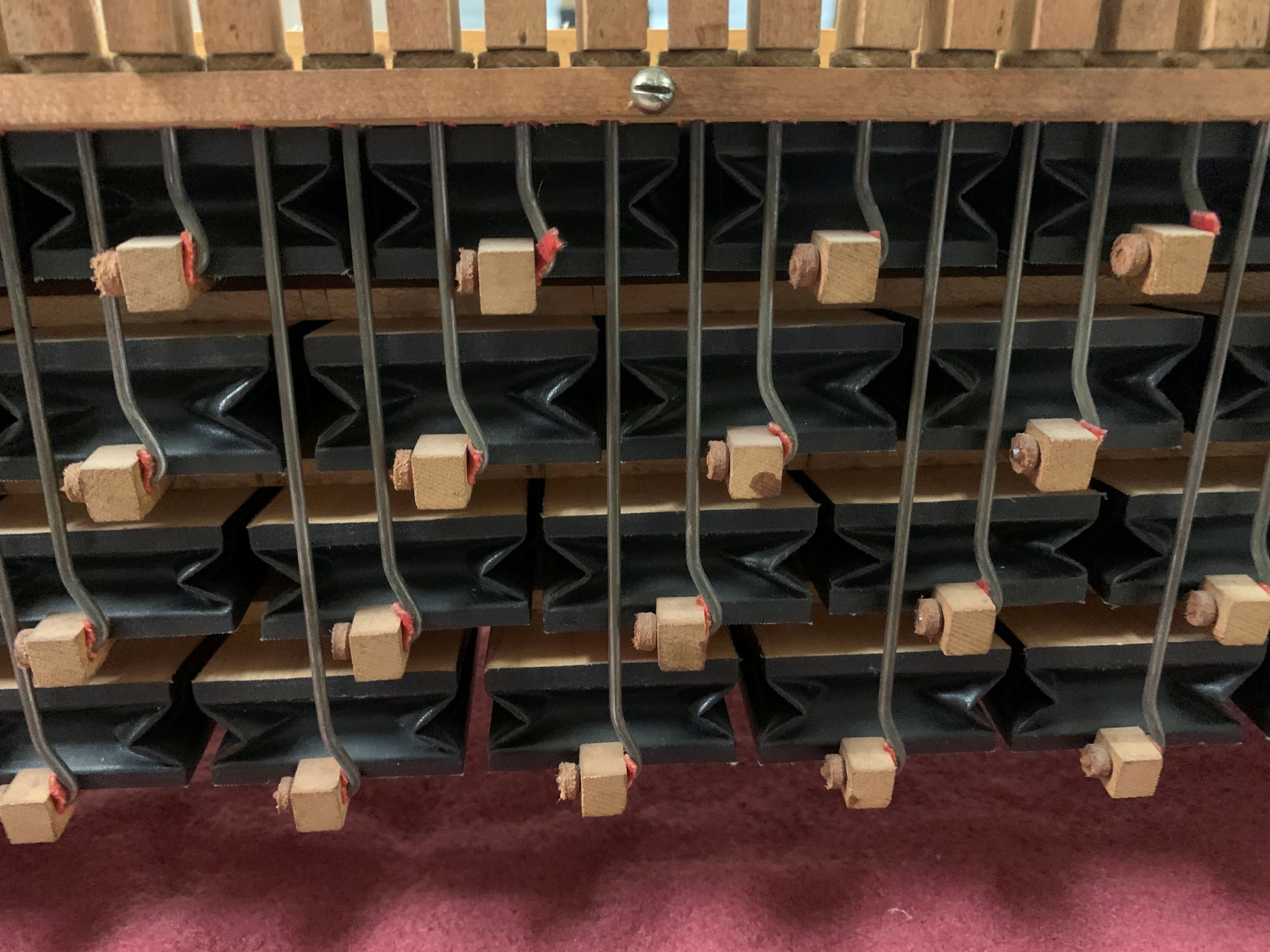

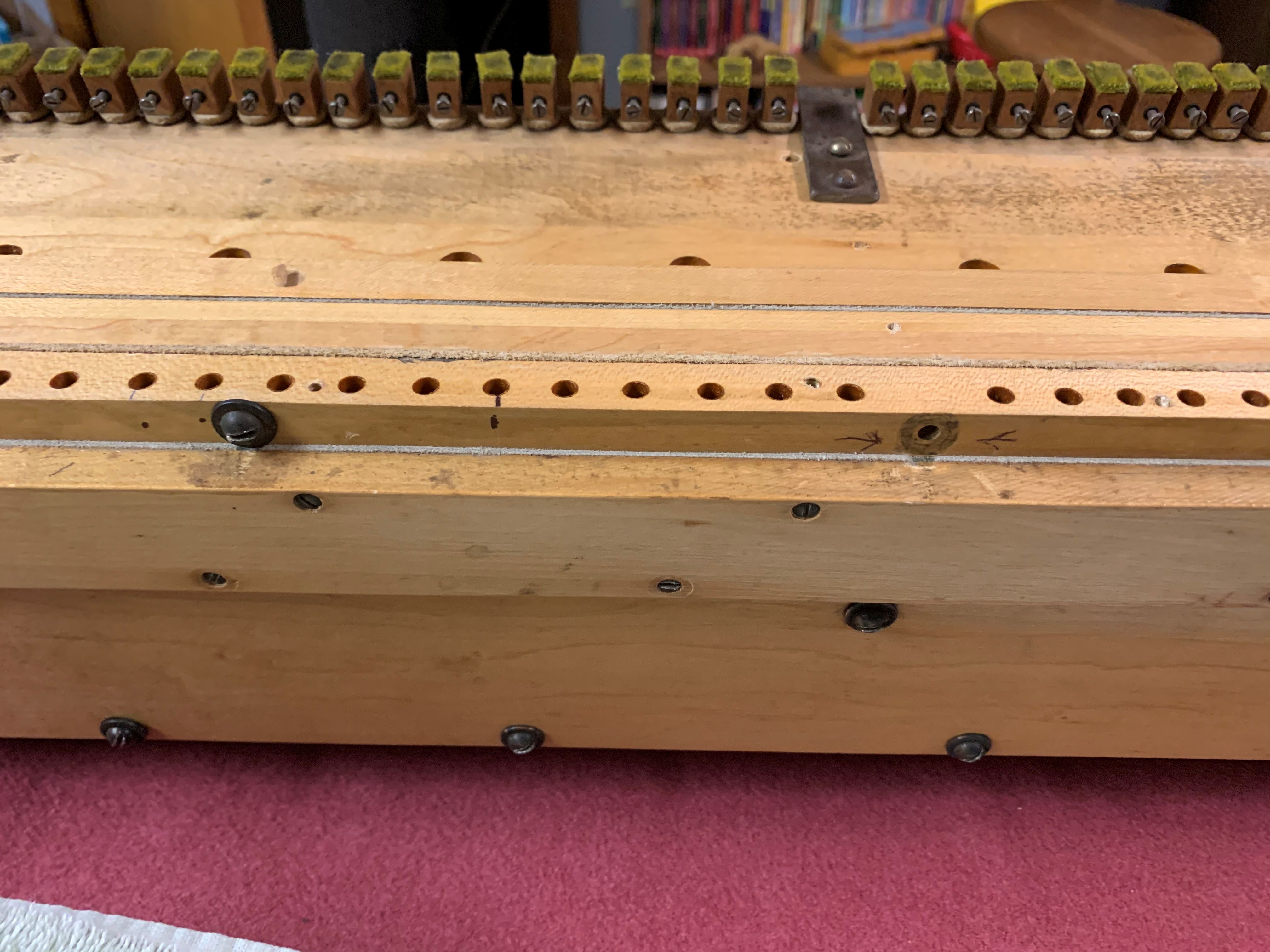

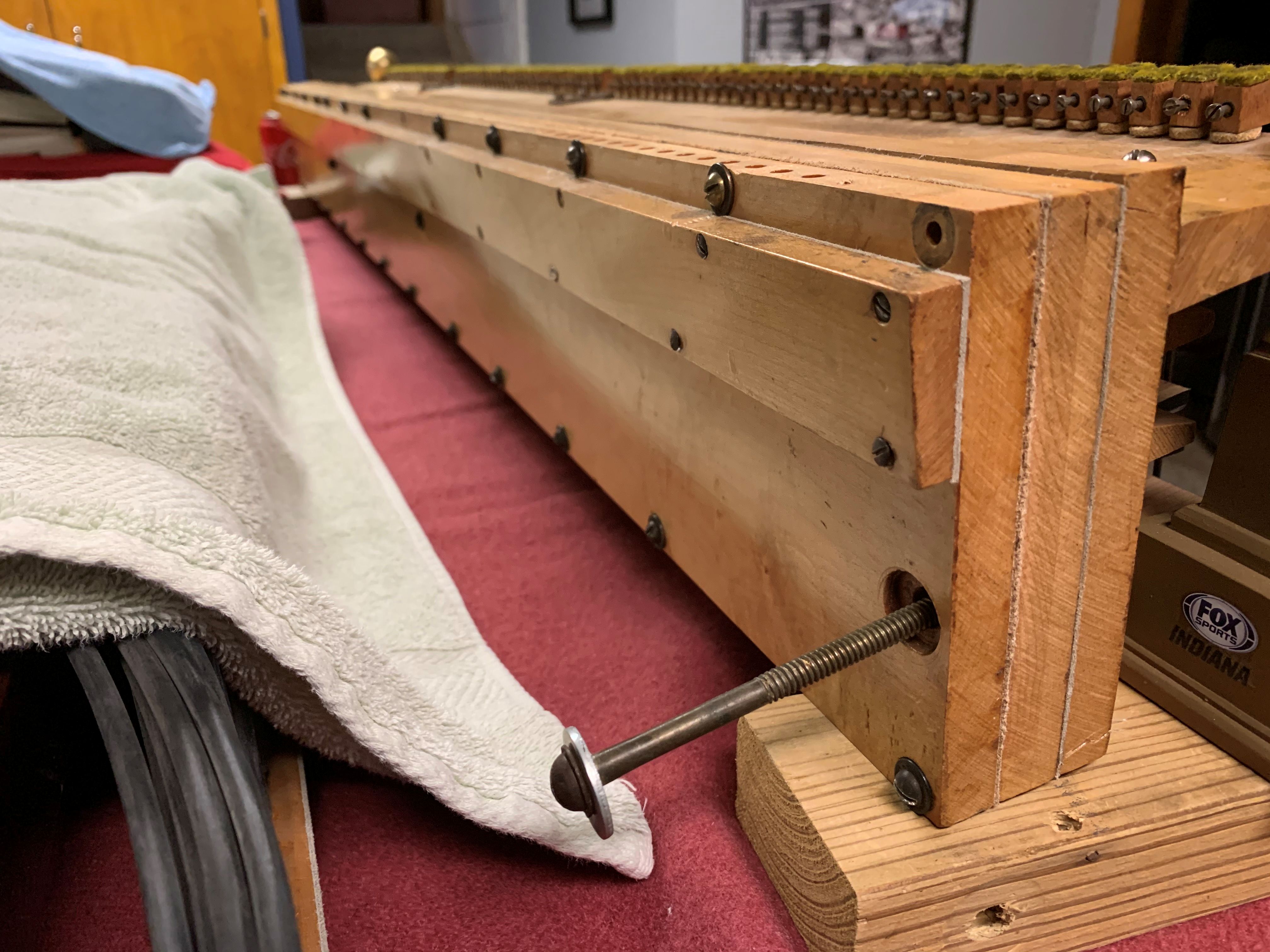

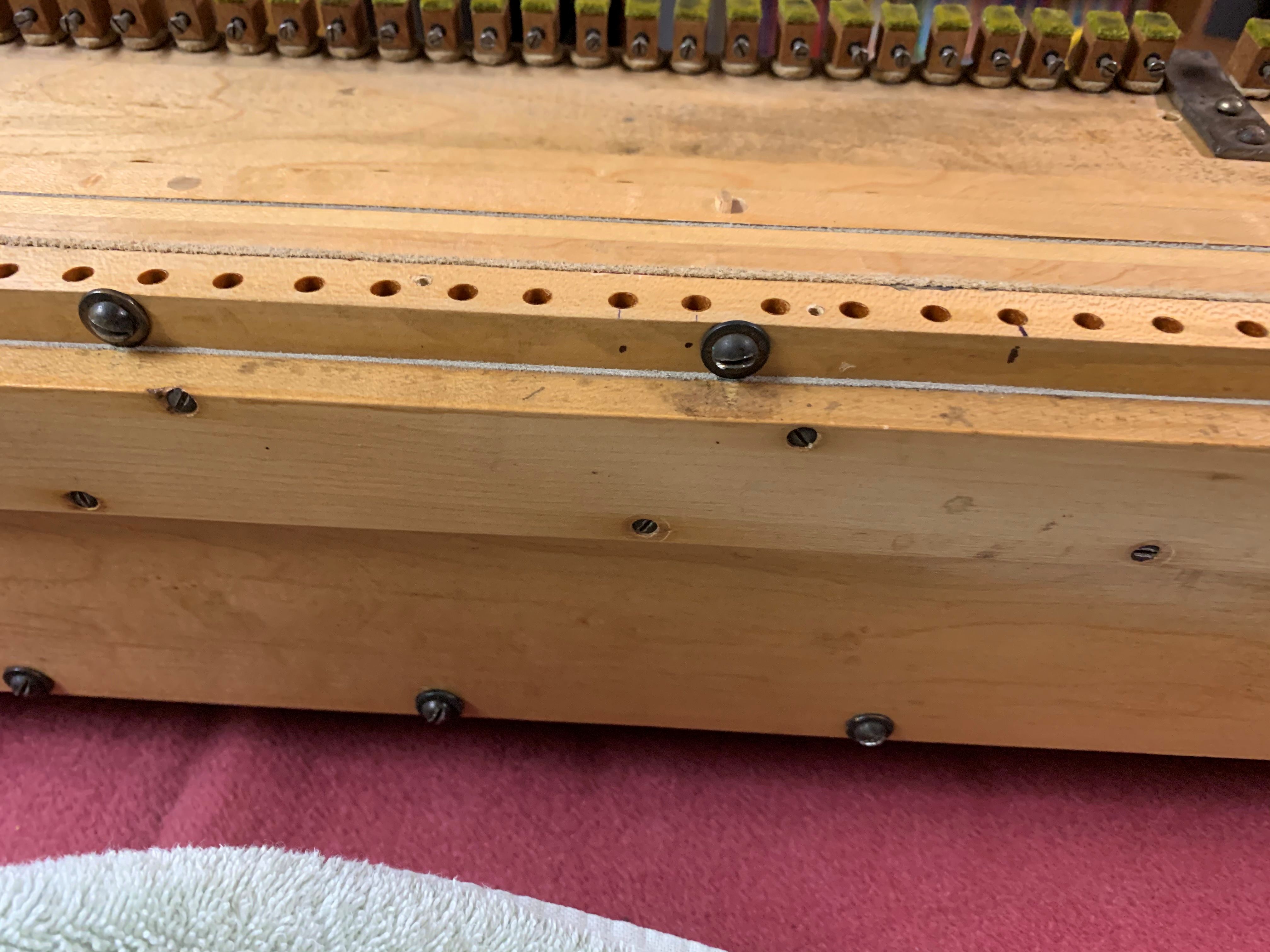

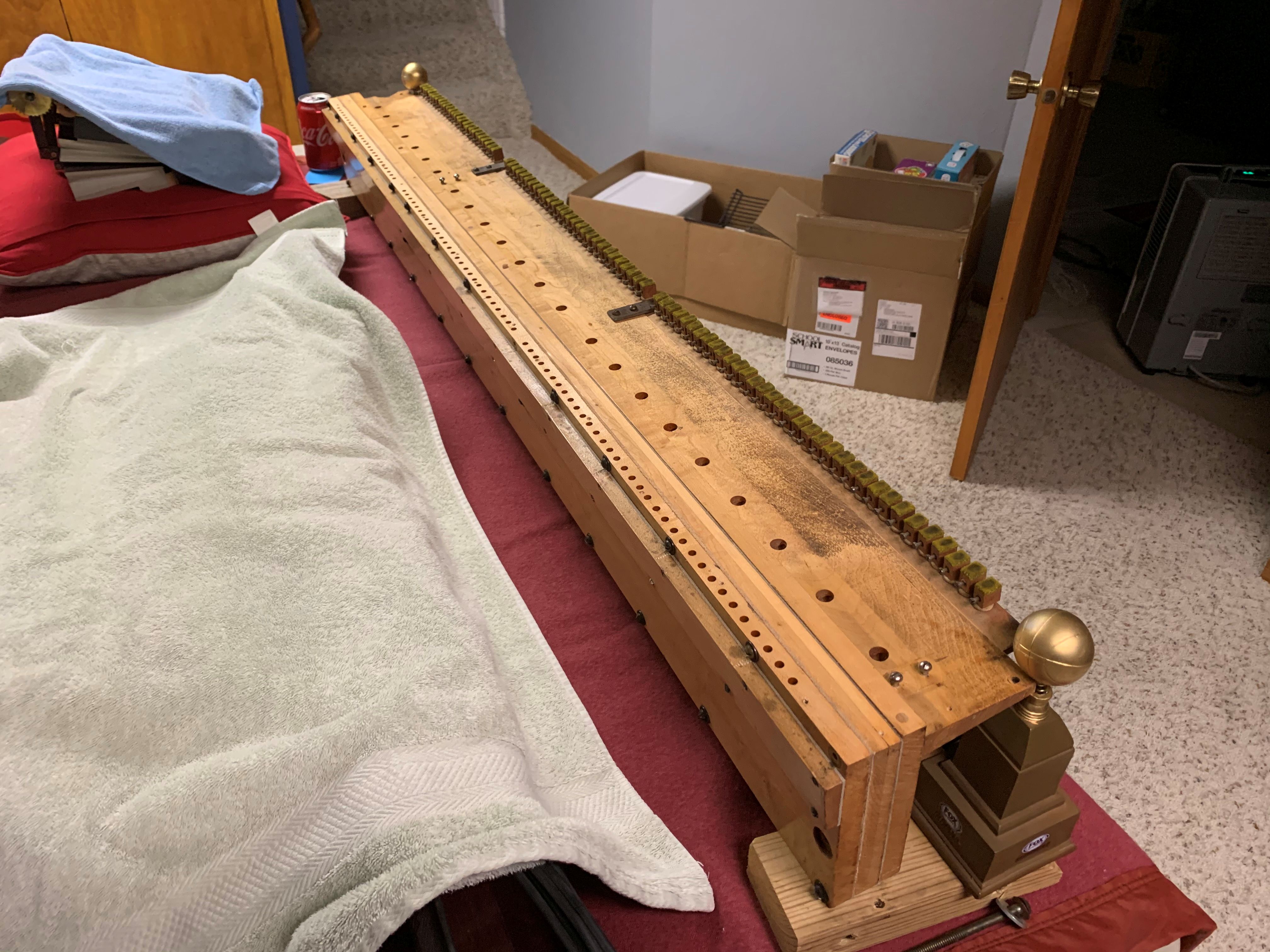

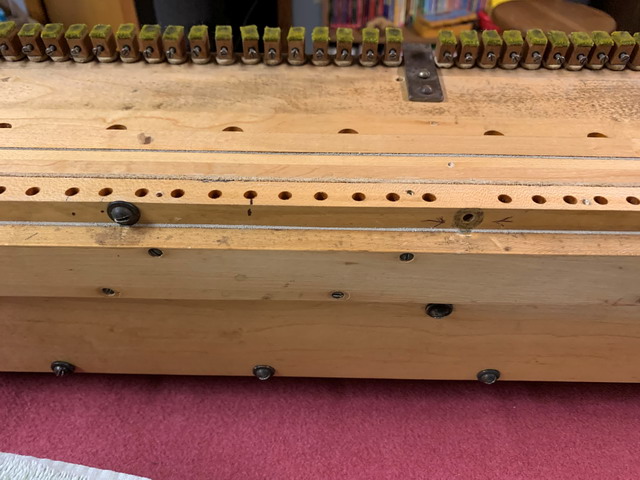

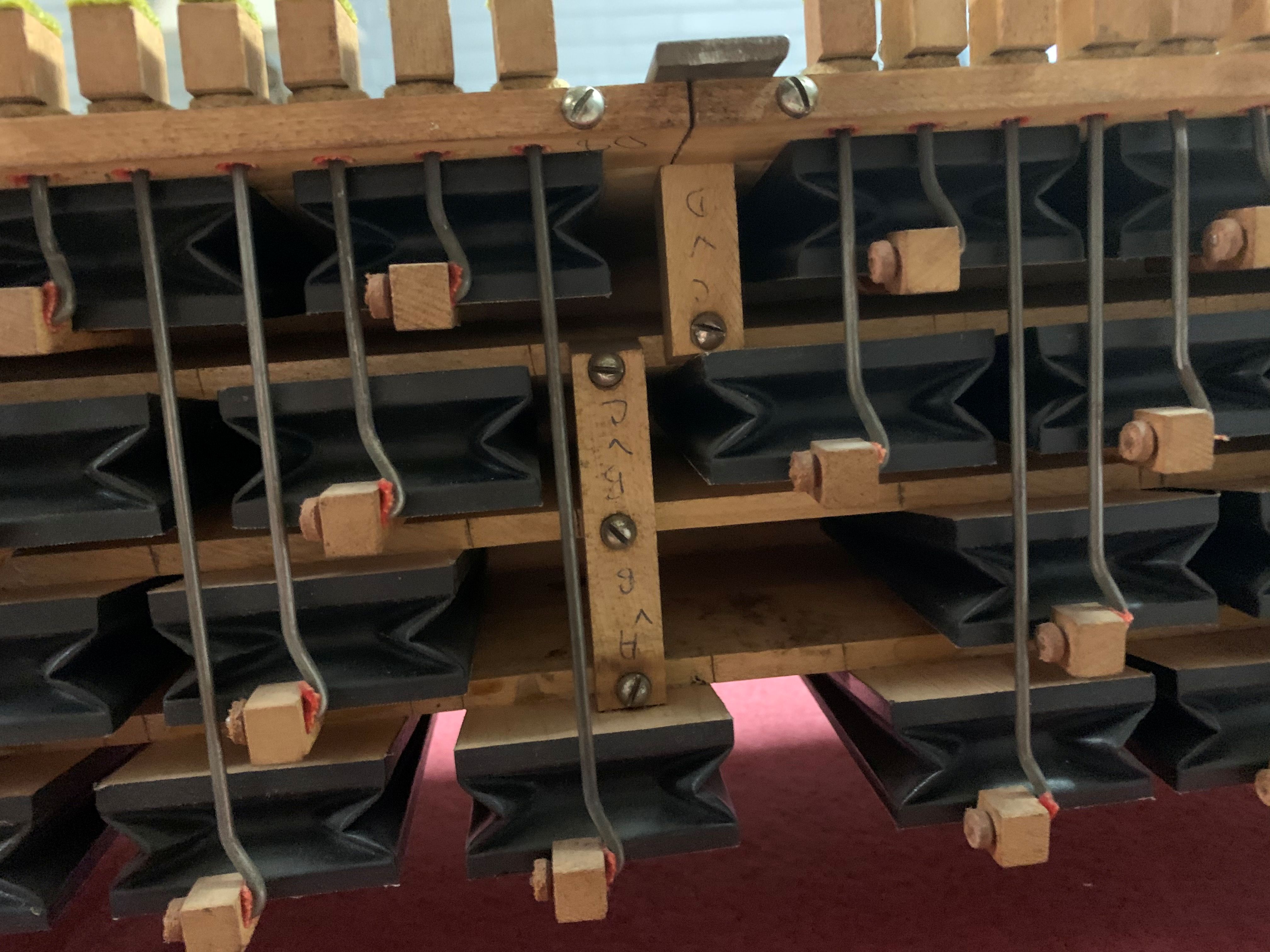

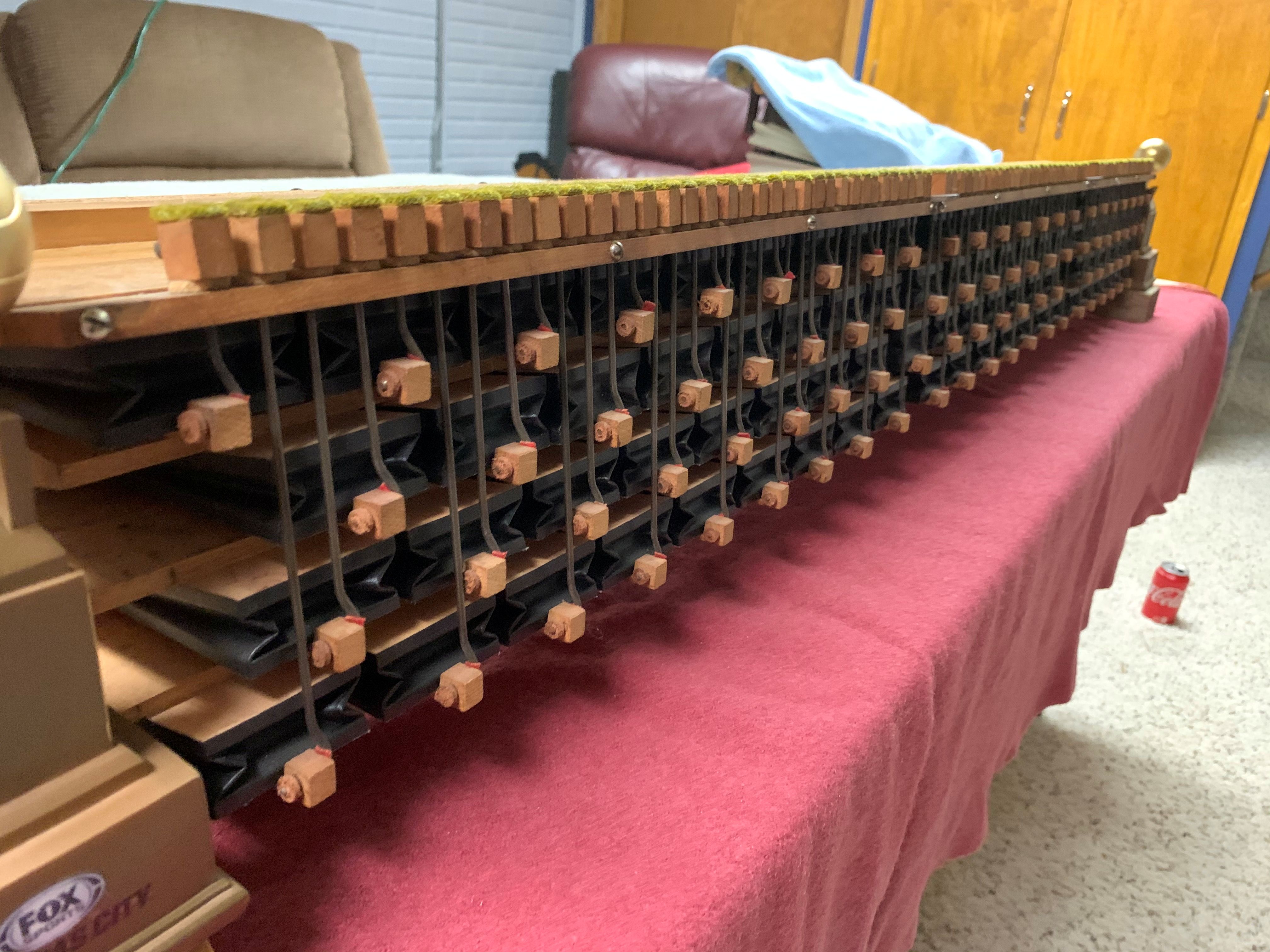

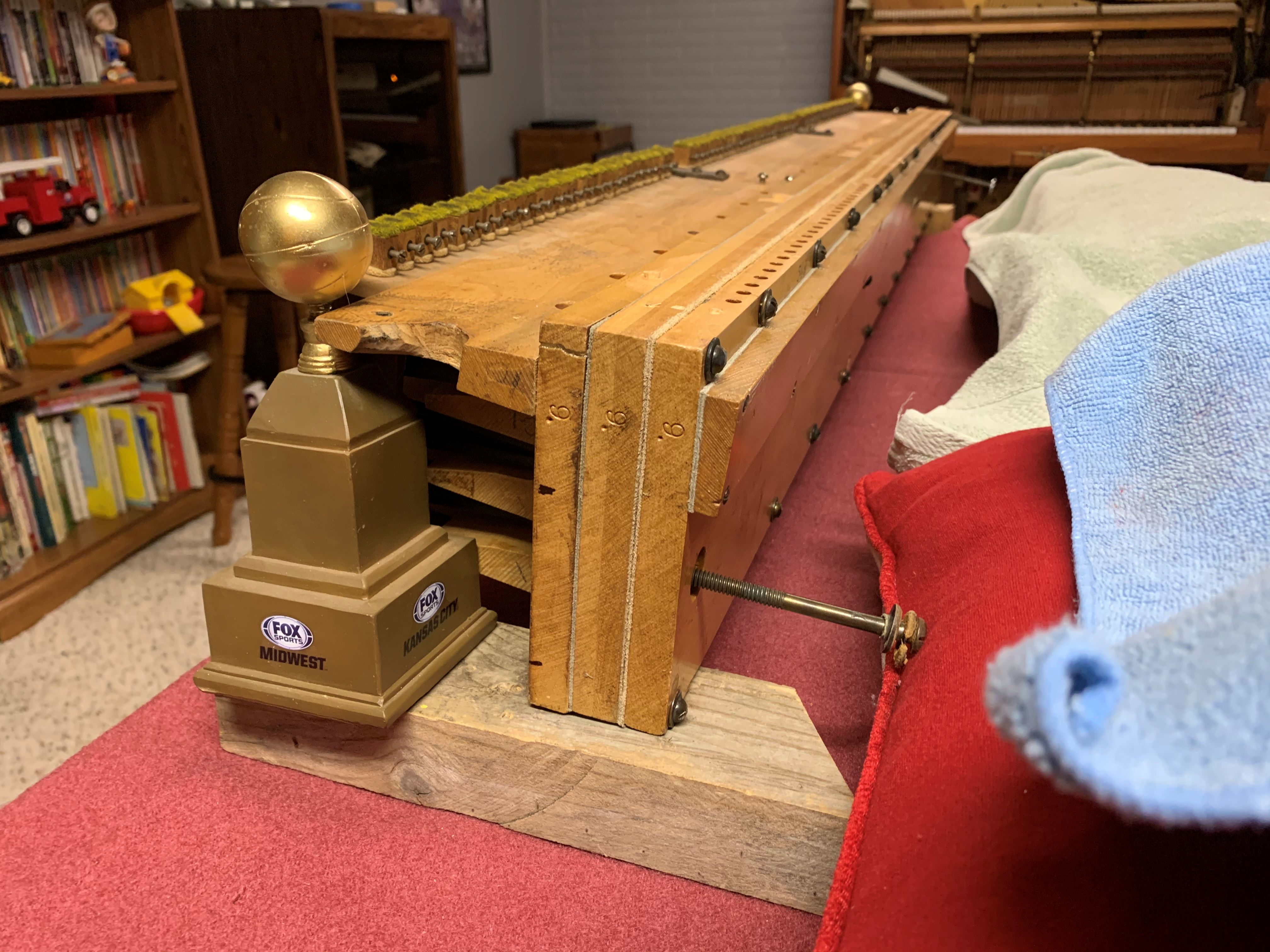

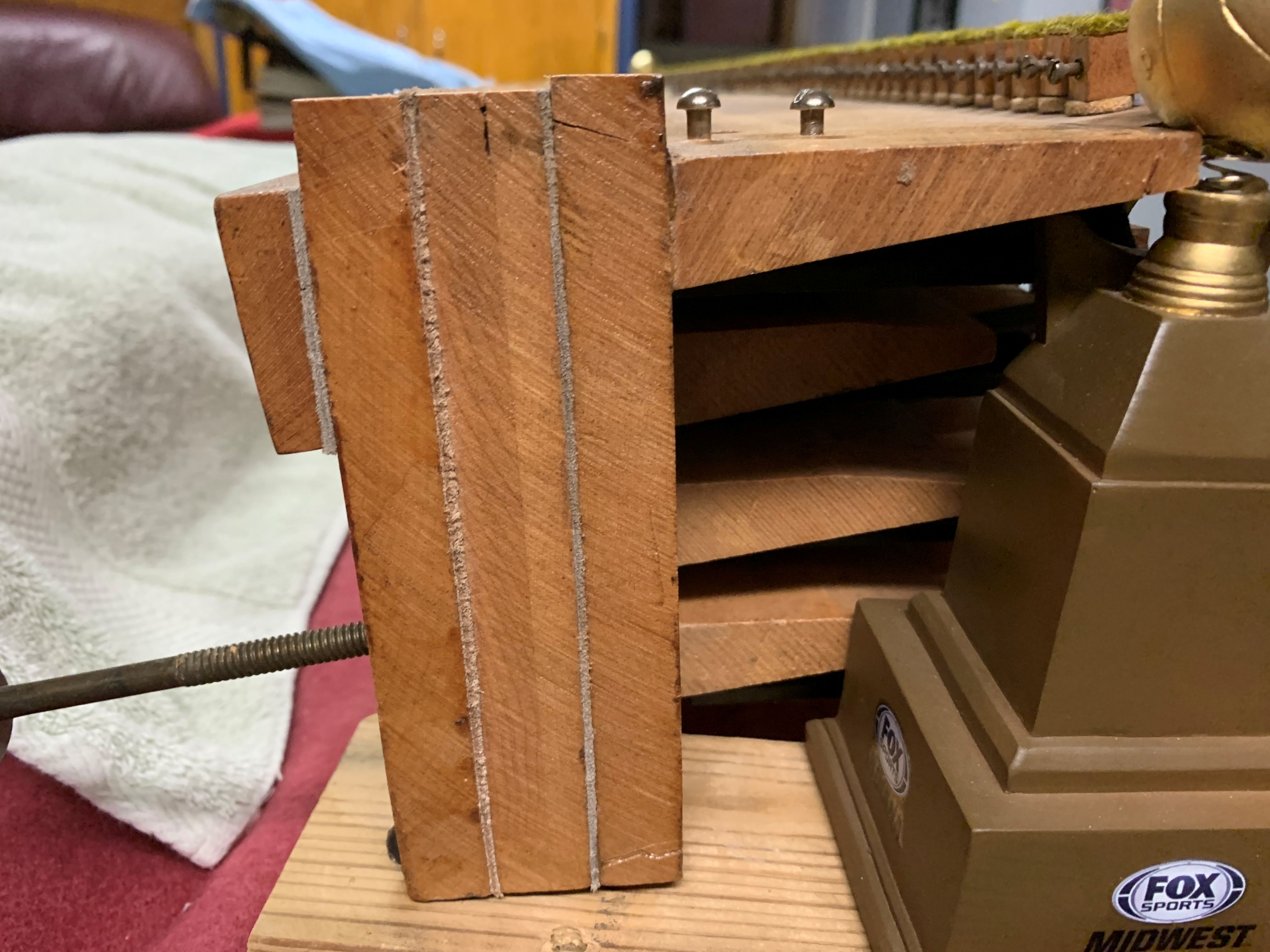

The Stack (Windchest)

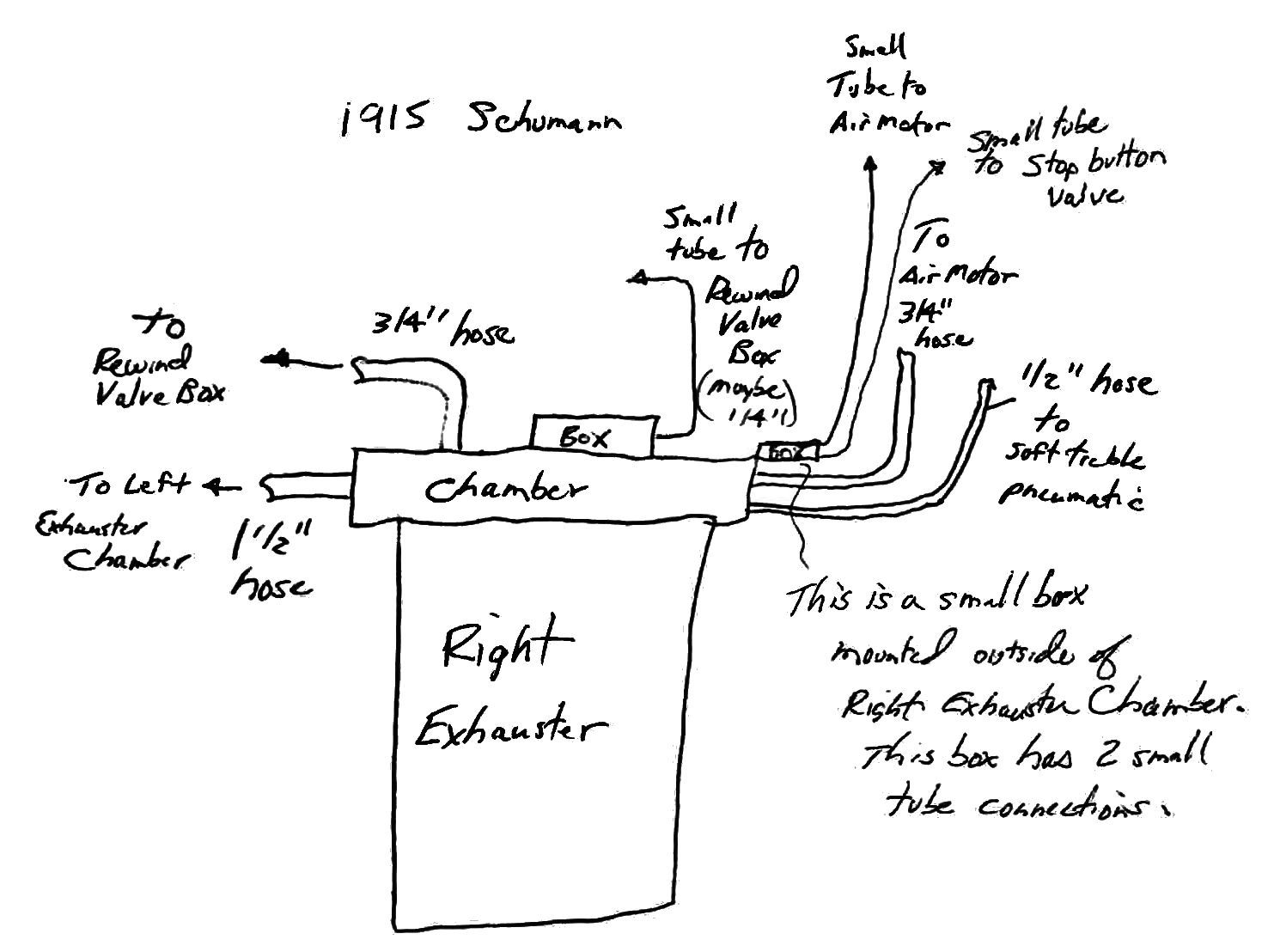

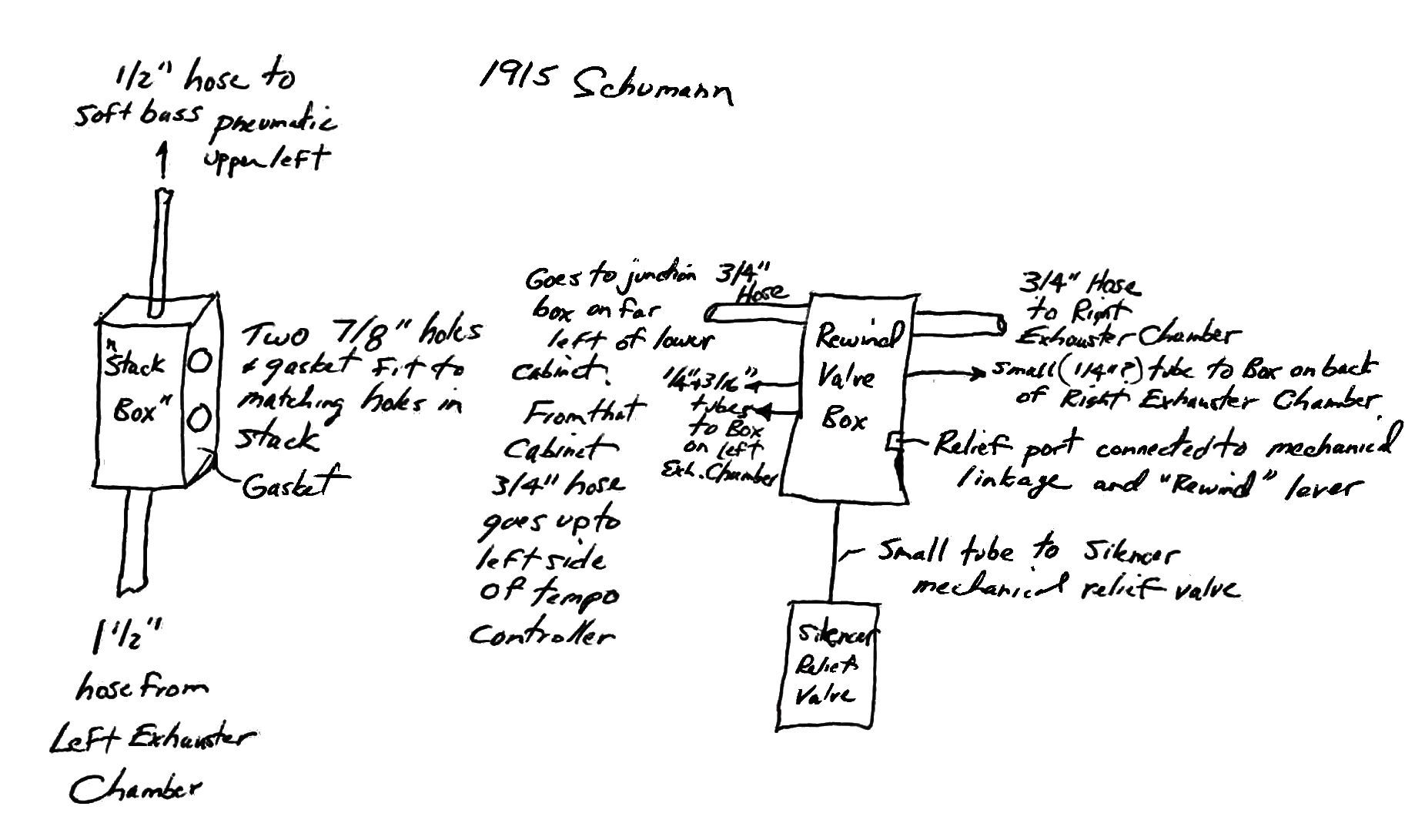

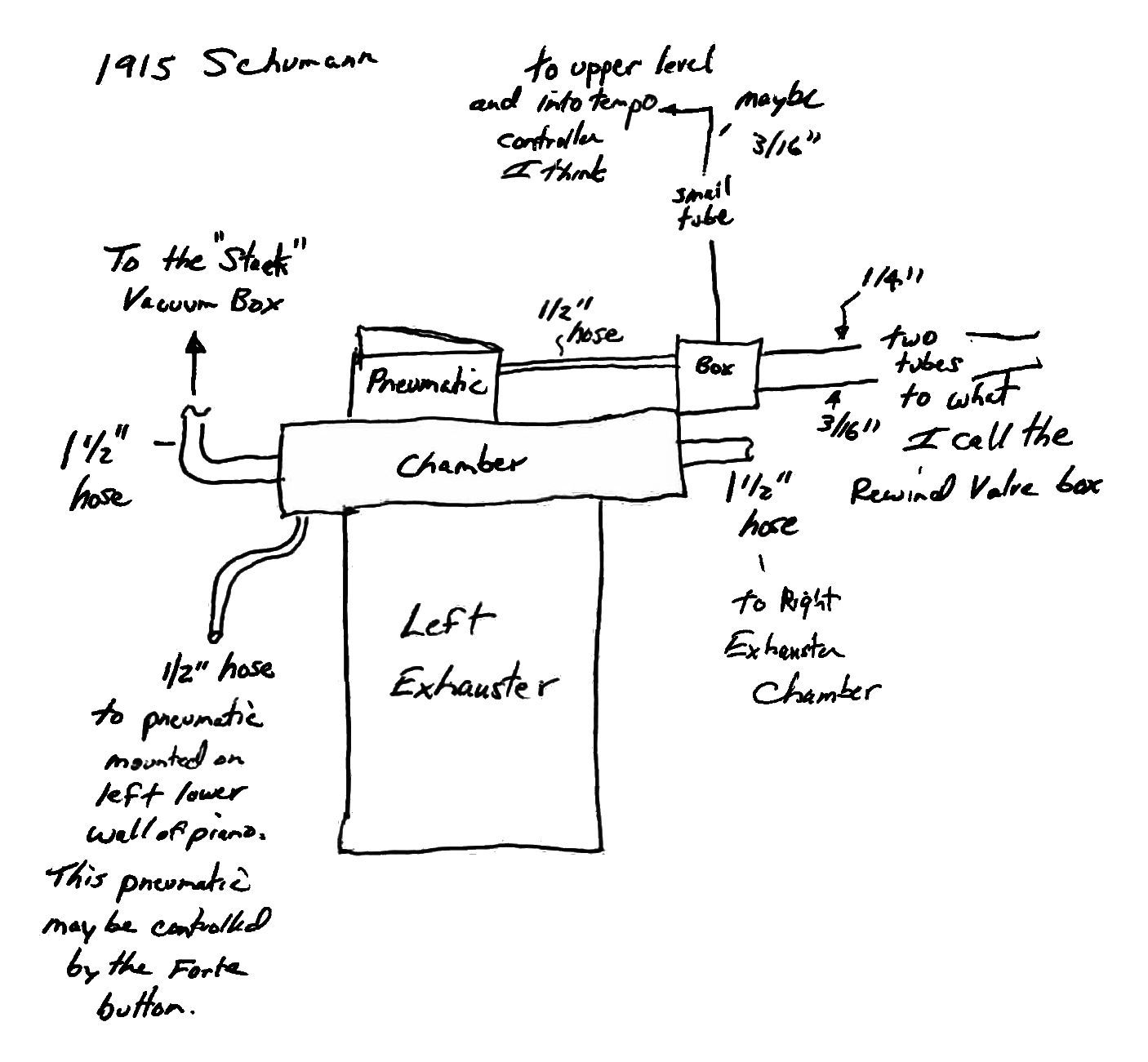

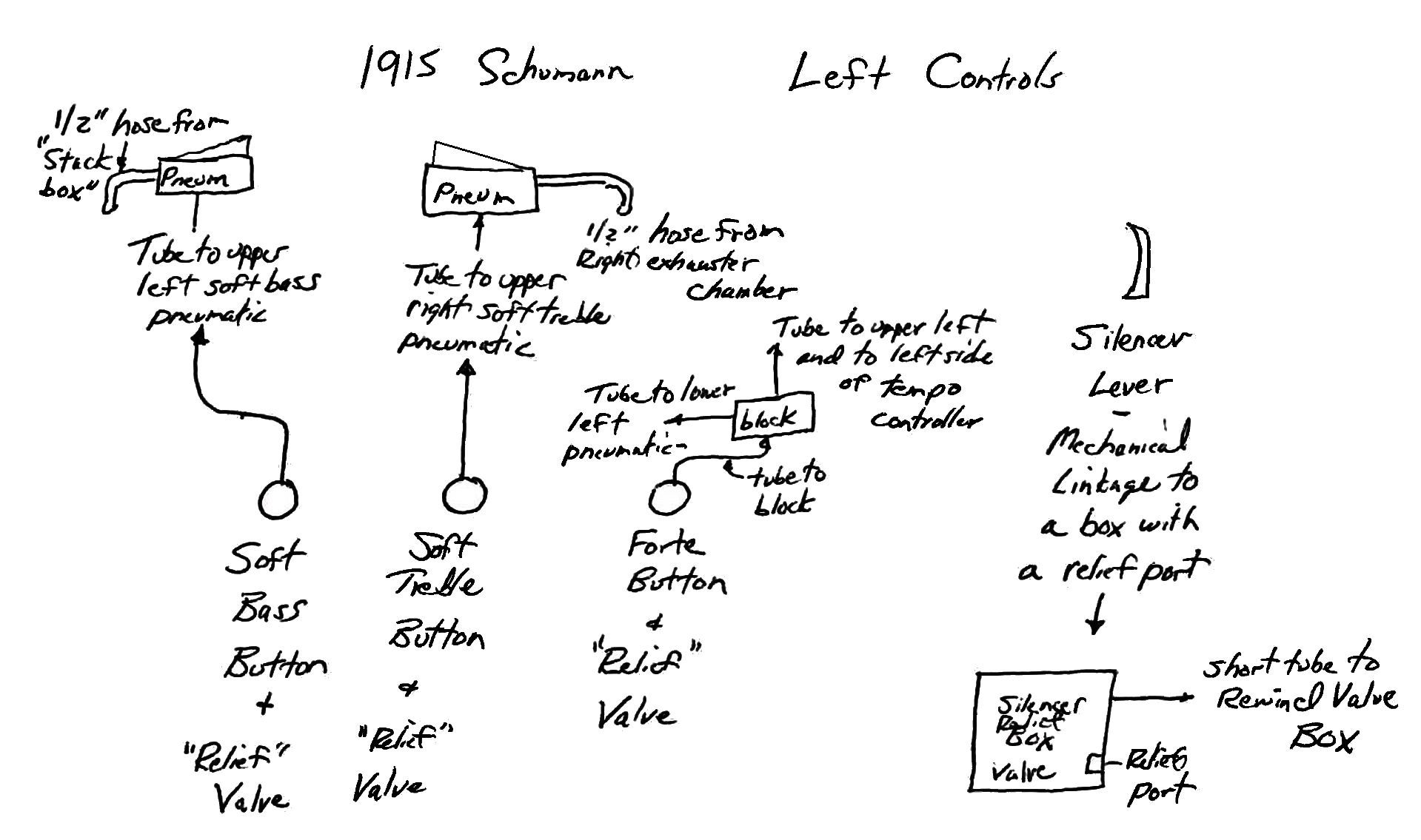

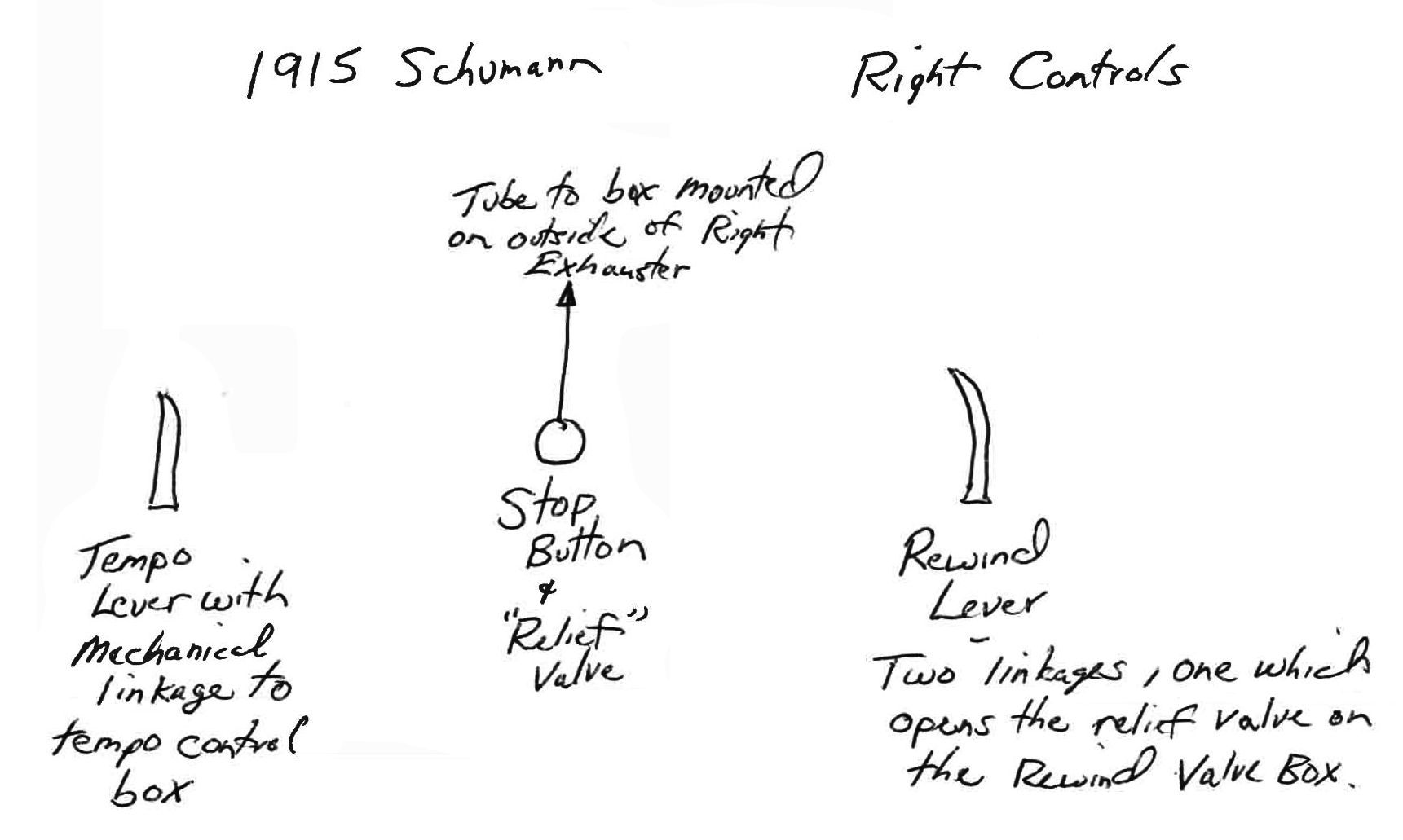

Tubing Layout (as of Aug 29, 2020)

(MORE COMING SOON)
