Repairing a
Kohler & Campbell
Cut-Out Valve

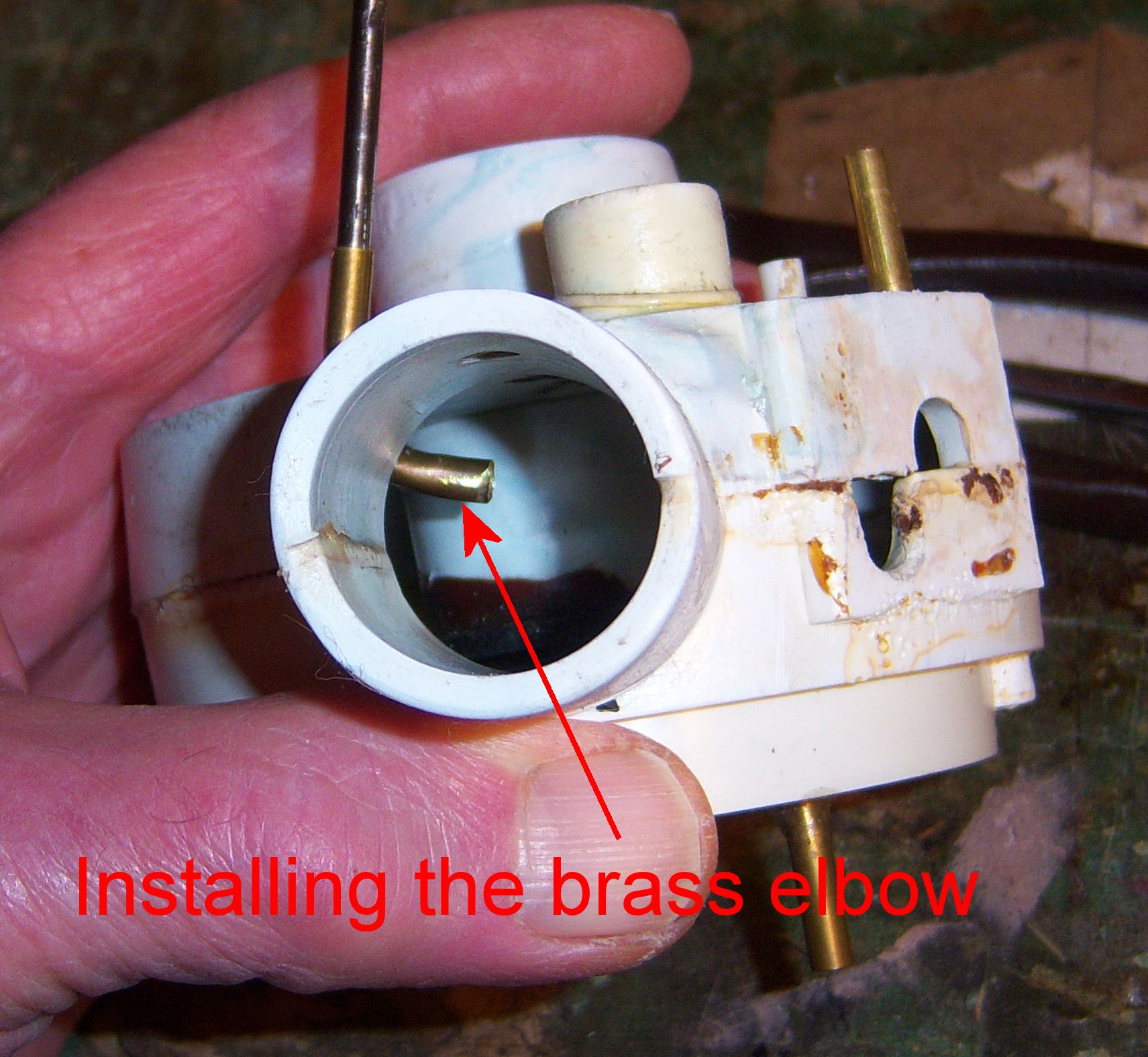

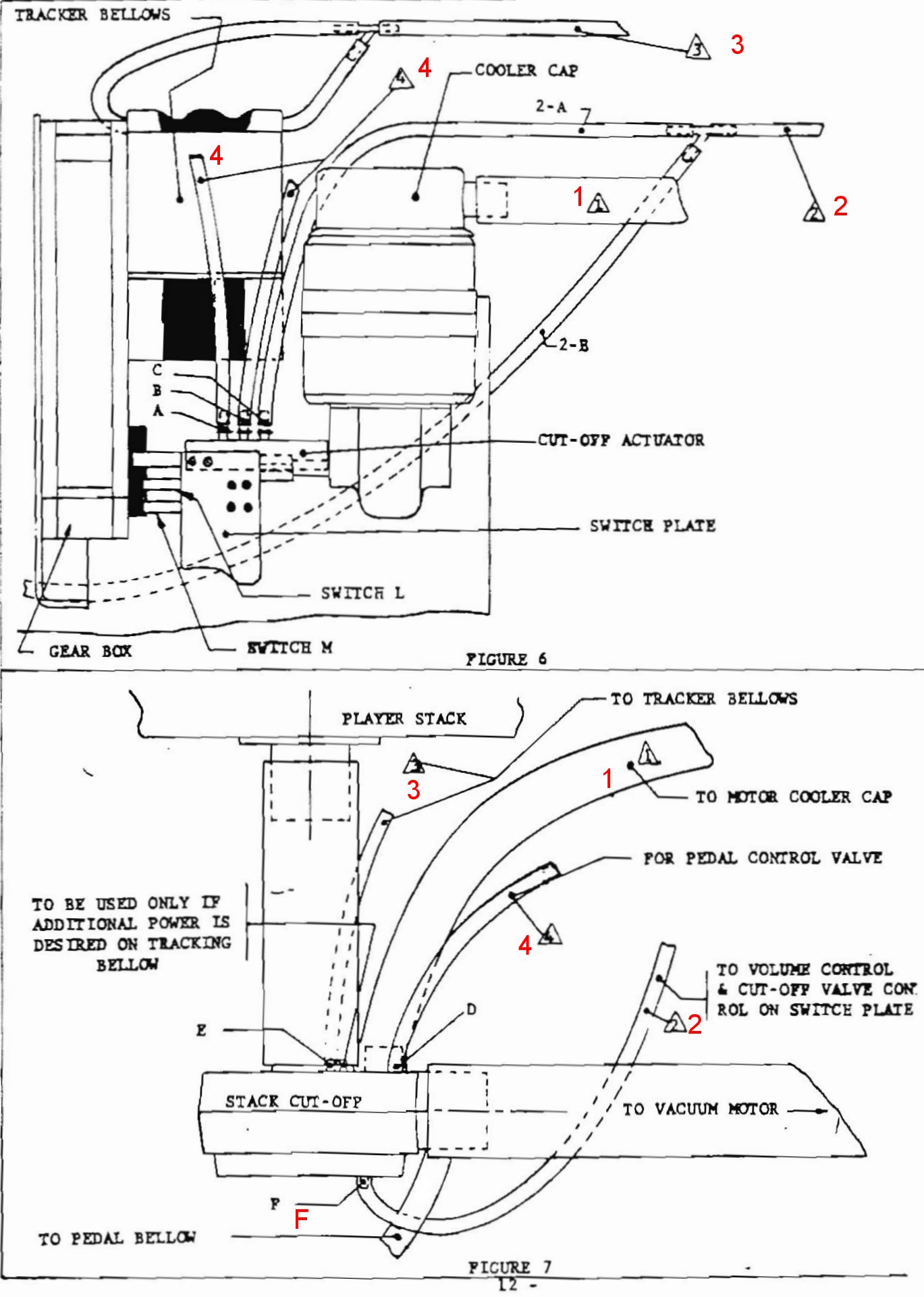

This part had a number of problems. As the diagram below illustrates, the assembly serves a few basic functions; supplying vacuum for the stack, the automatic roll tracking device, the automatic sustain pedal, and cooling for the electric roll drive motor. Basically speaking, all but one of the small plastic nipples on the outside and the inside of the device had broken off. And, basically speaking, all of them were replaced with brass nipples. In one instance, it proved necessary to replace one of the connectors with a brass elbow instead of a brass nipple. More on that later. Here's the only diagram that's in the Kohler & Campbell Service Manual; showing the various tubing connections.

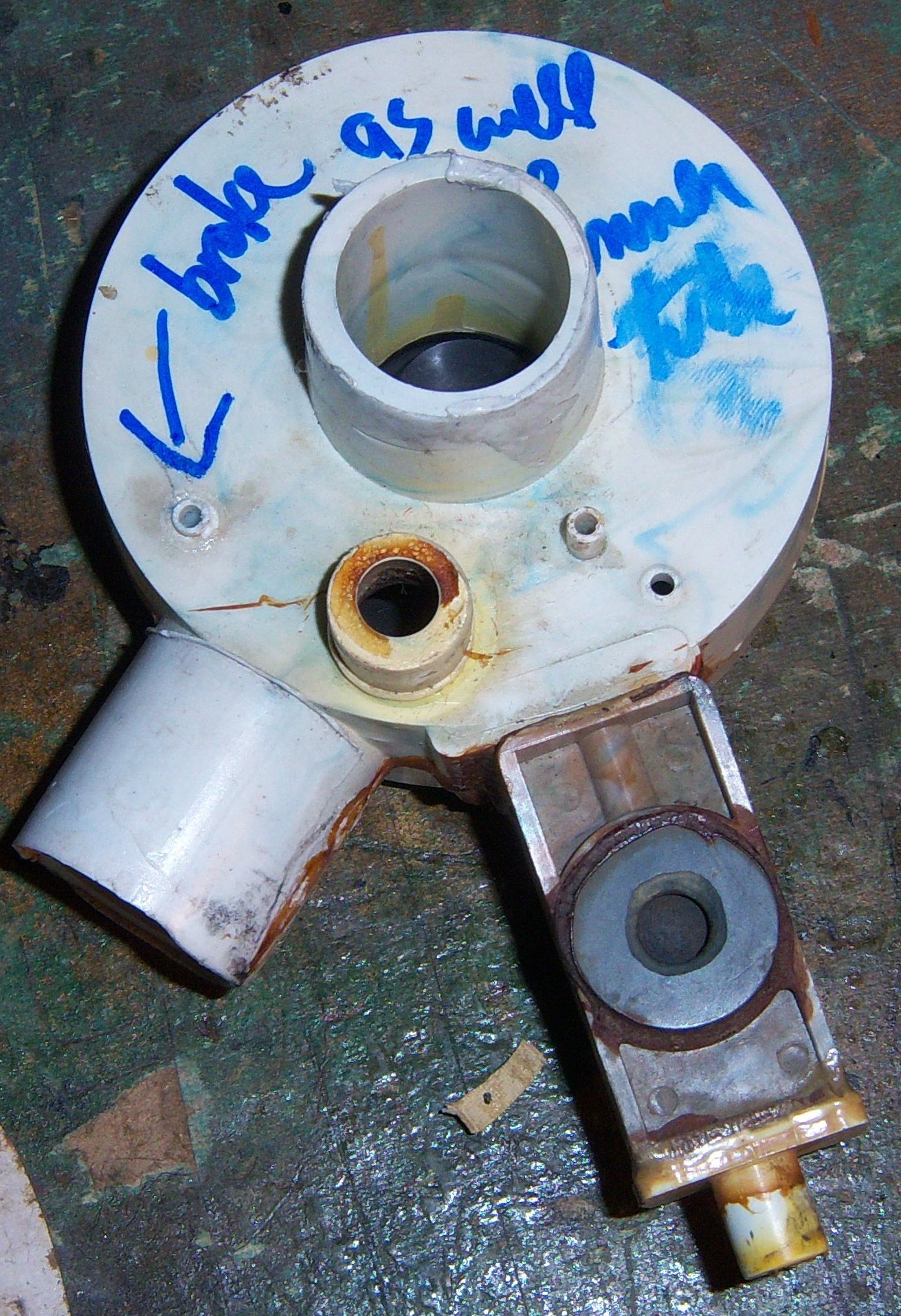

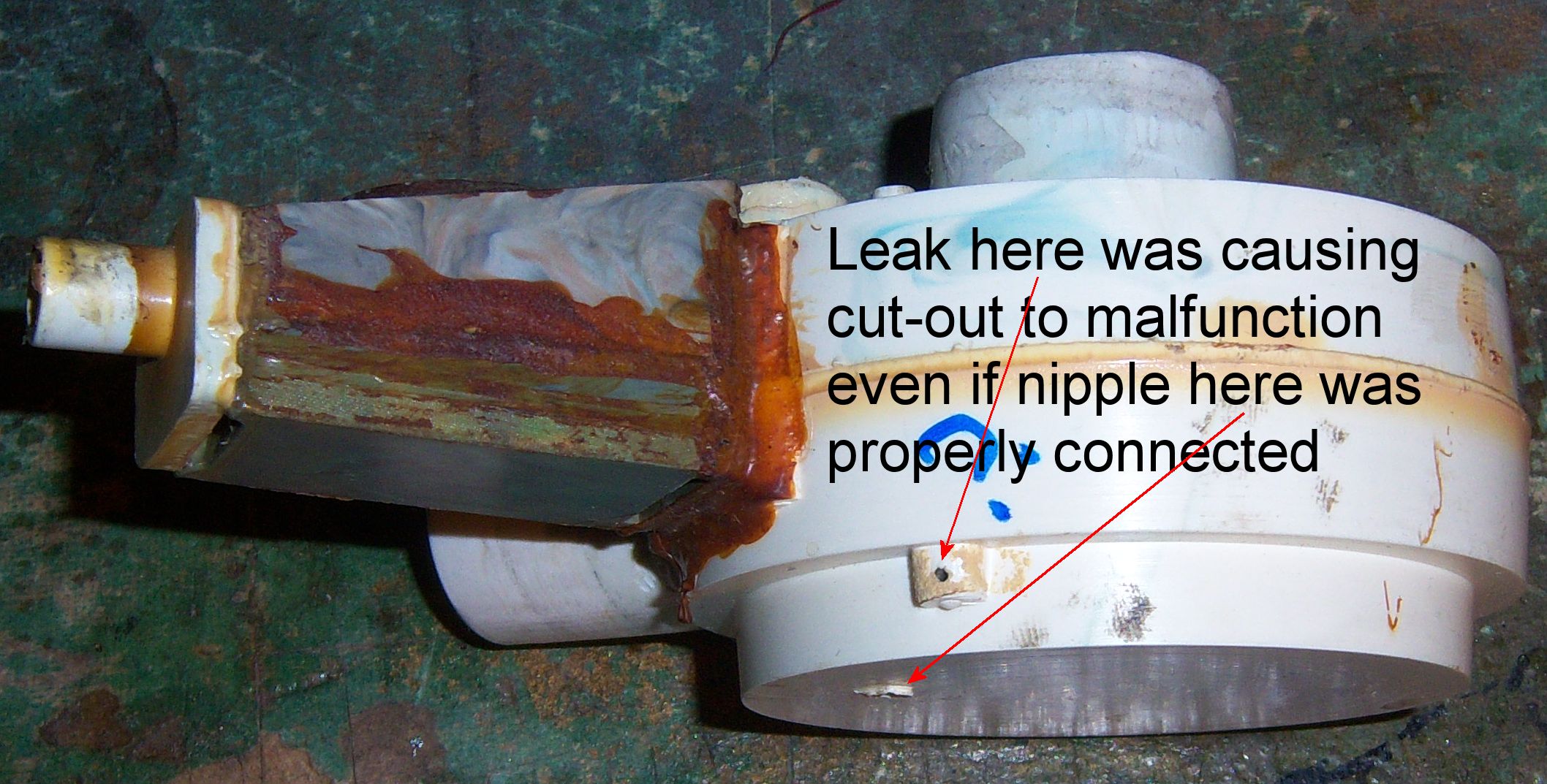

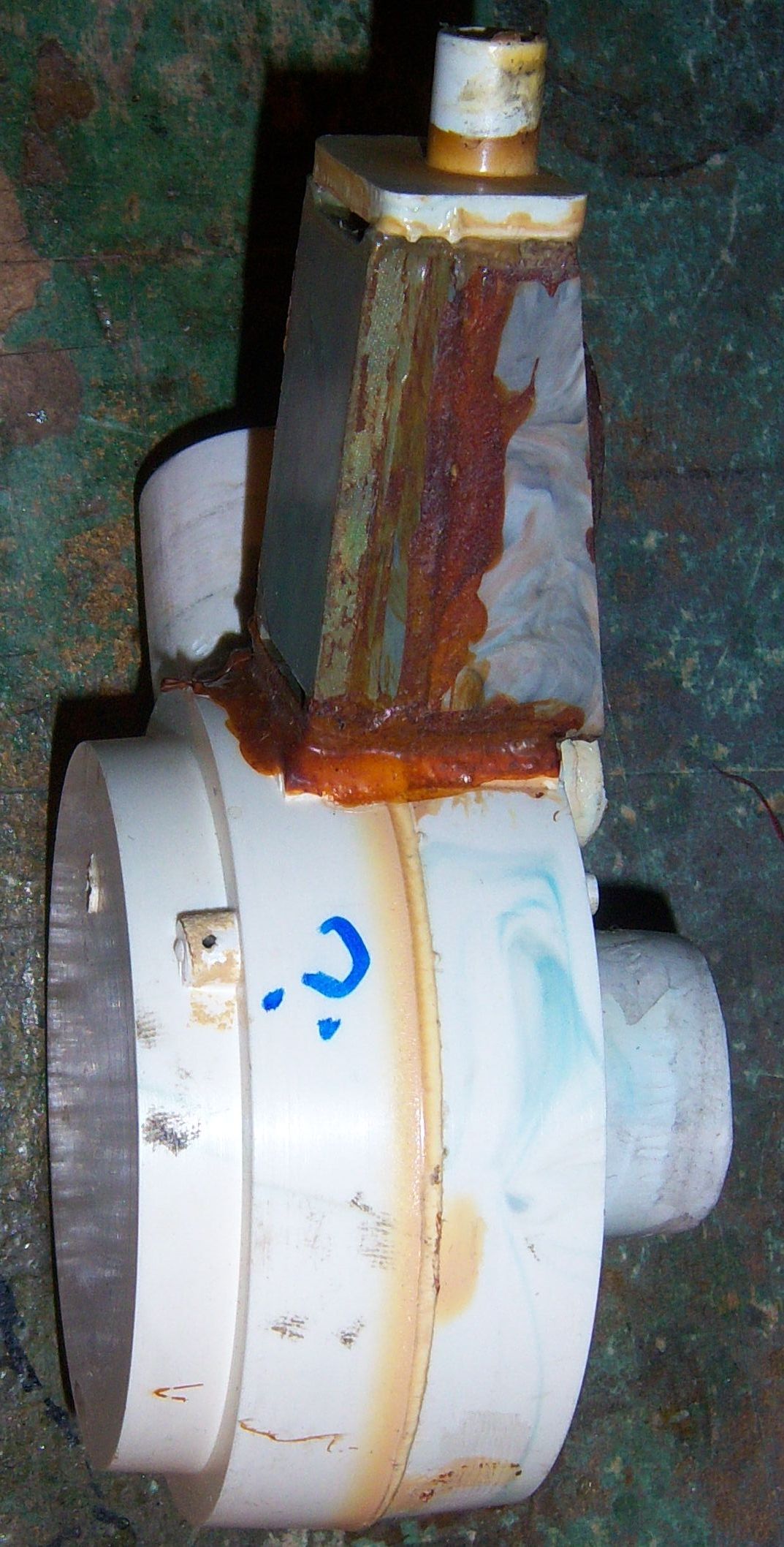

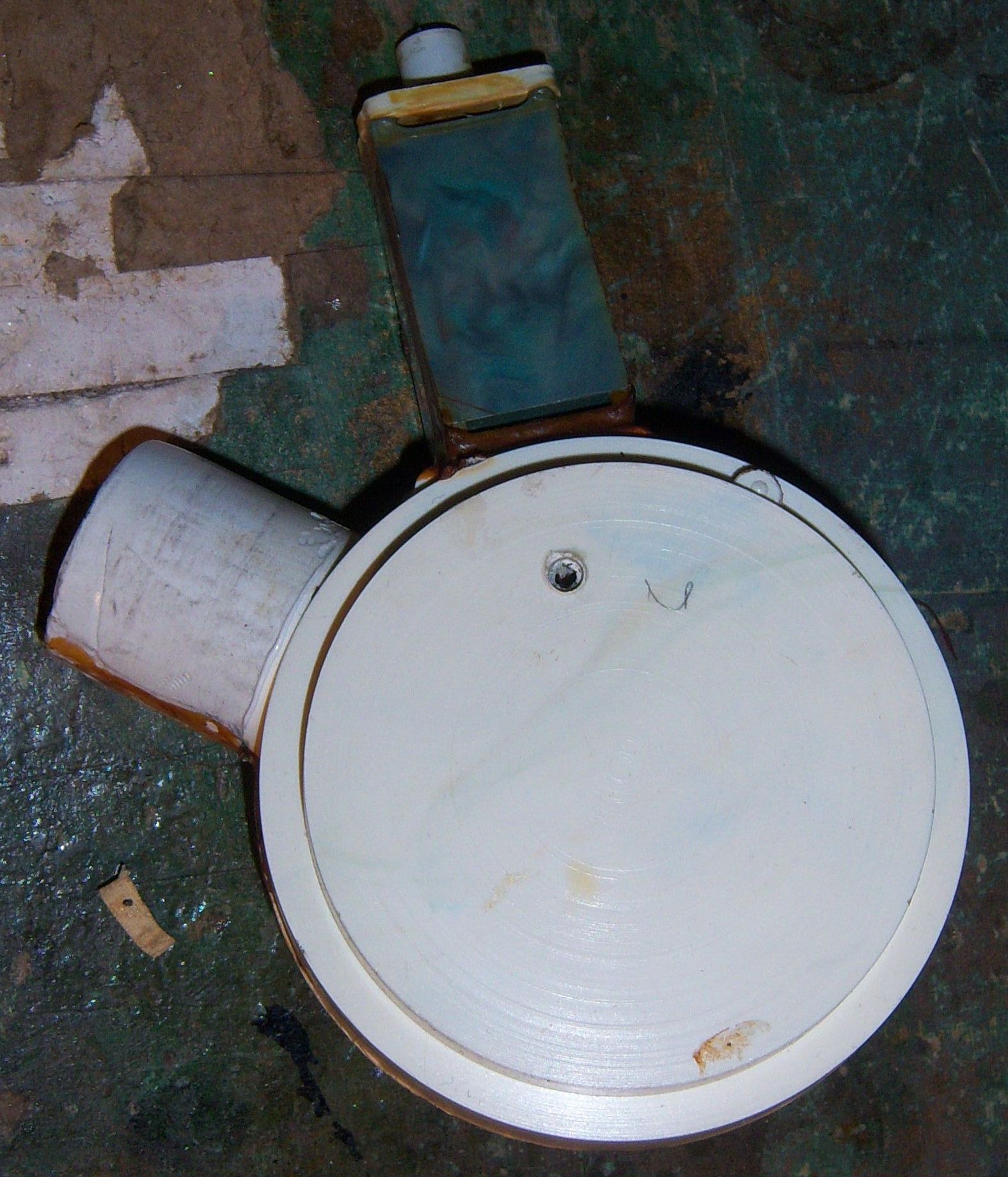

The next series of pictures show what the part looked like when it was received.

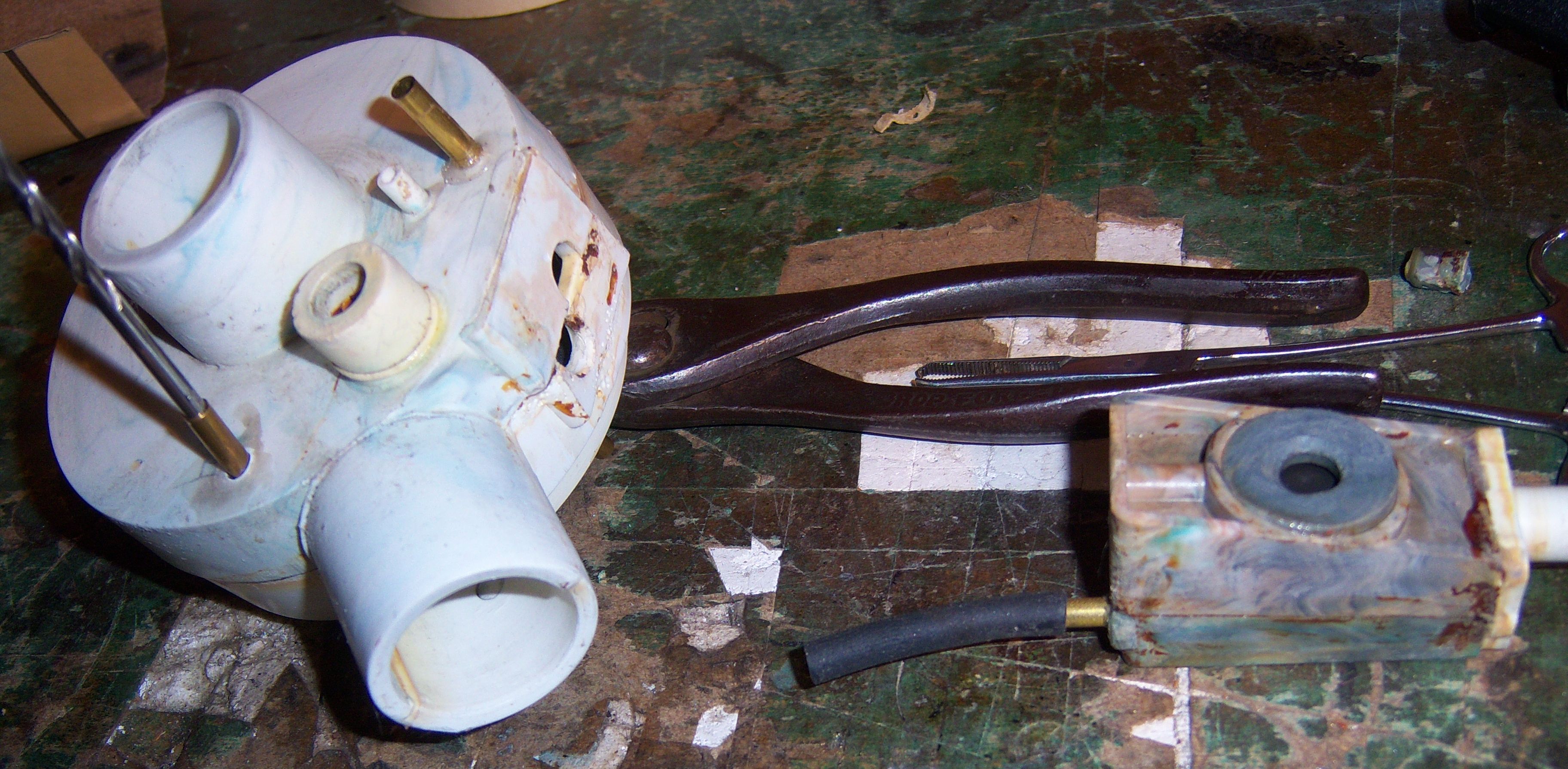

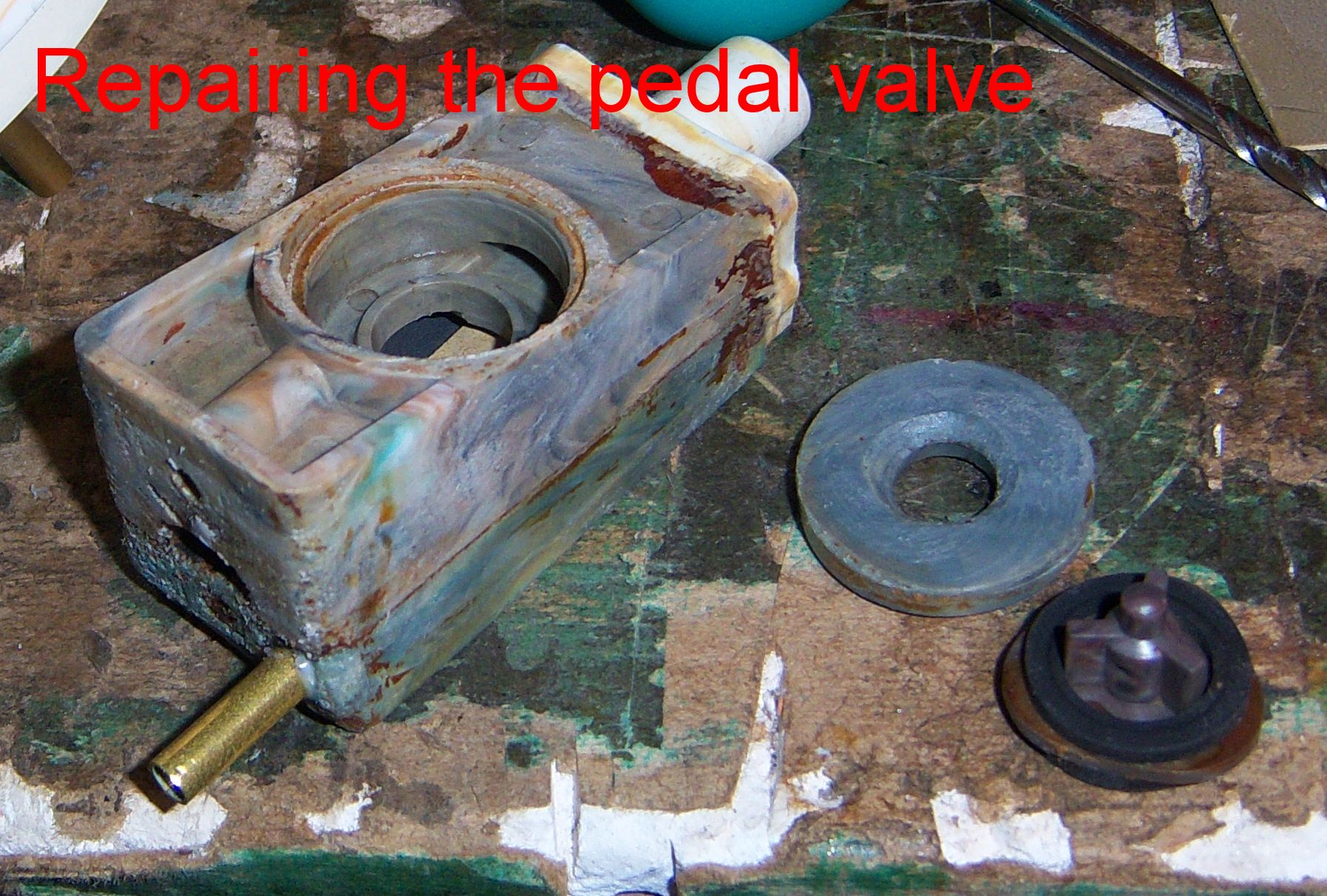

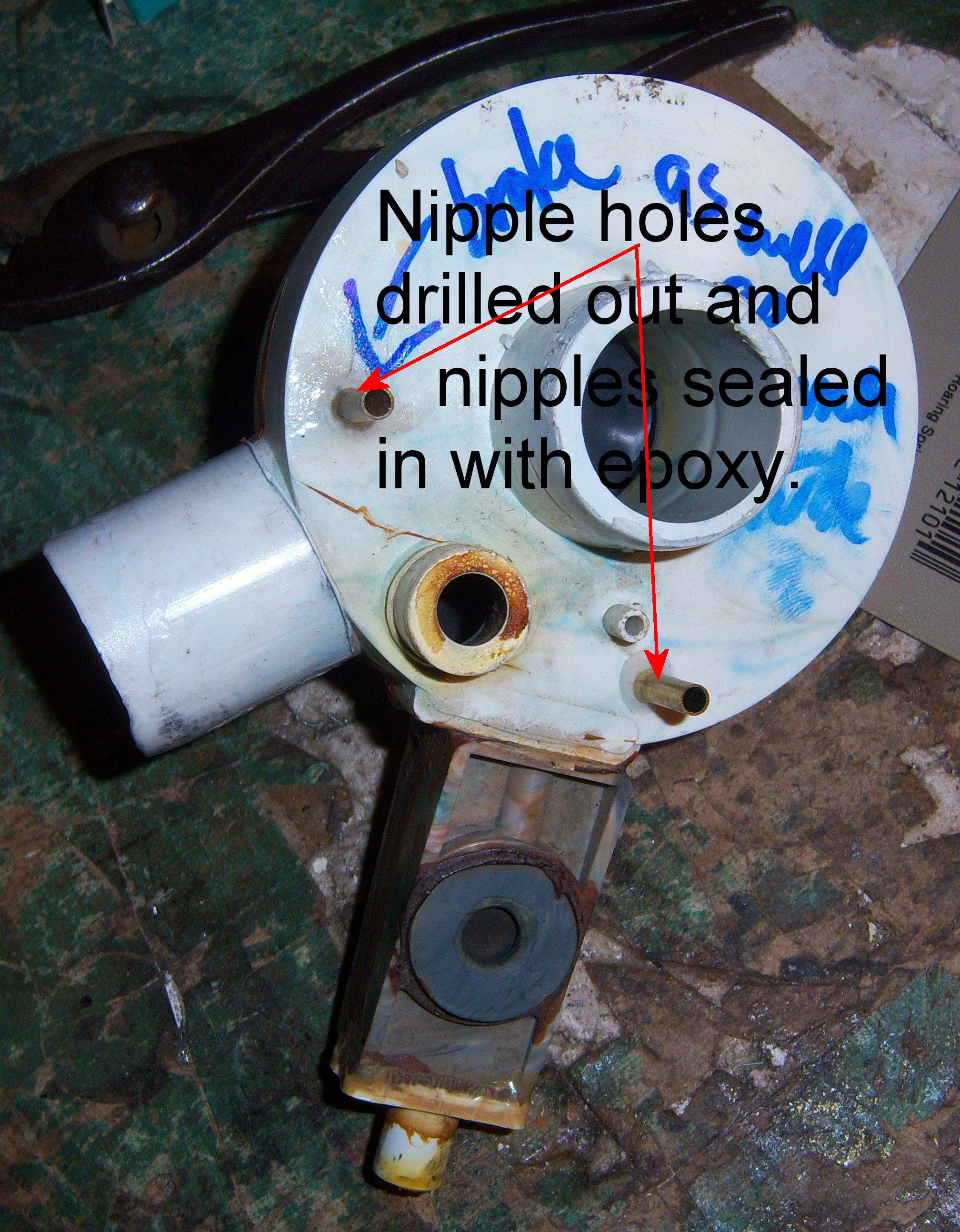

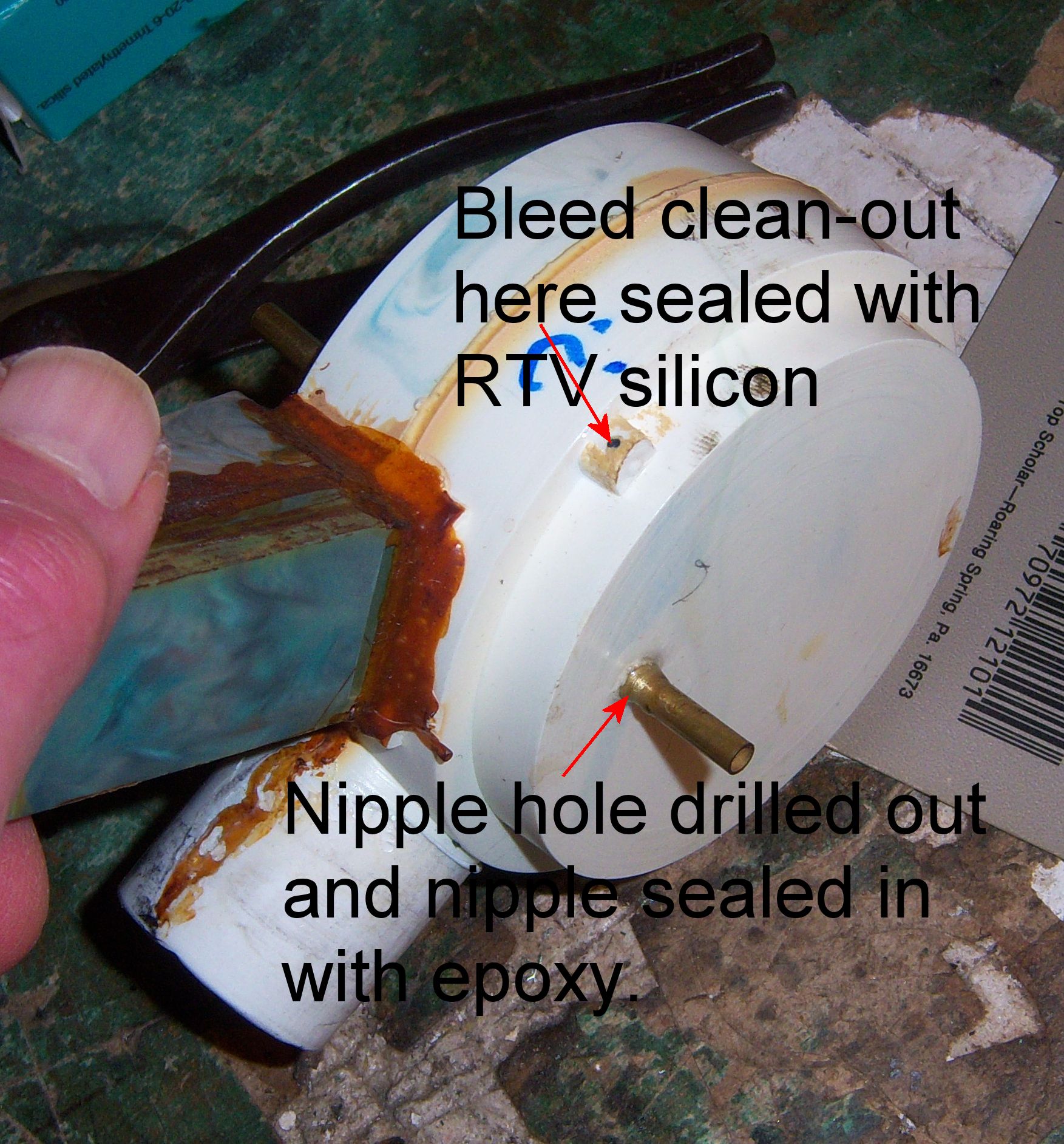

The next series of pictures show repairs in progress.

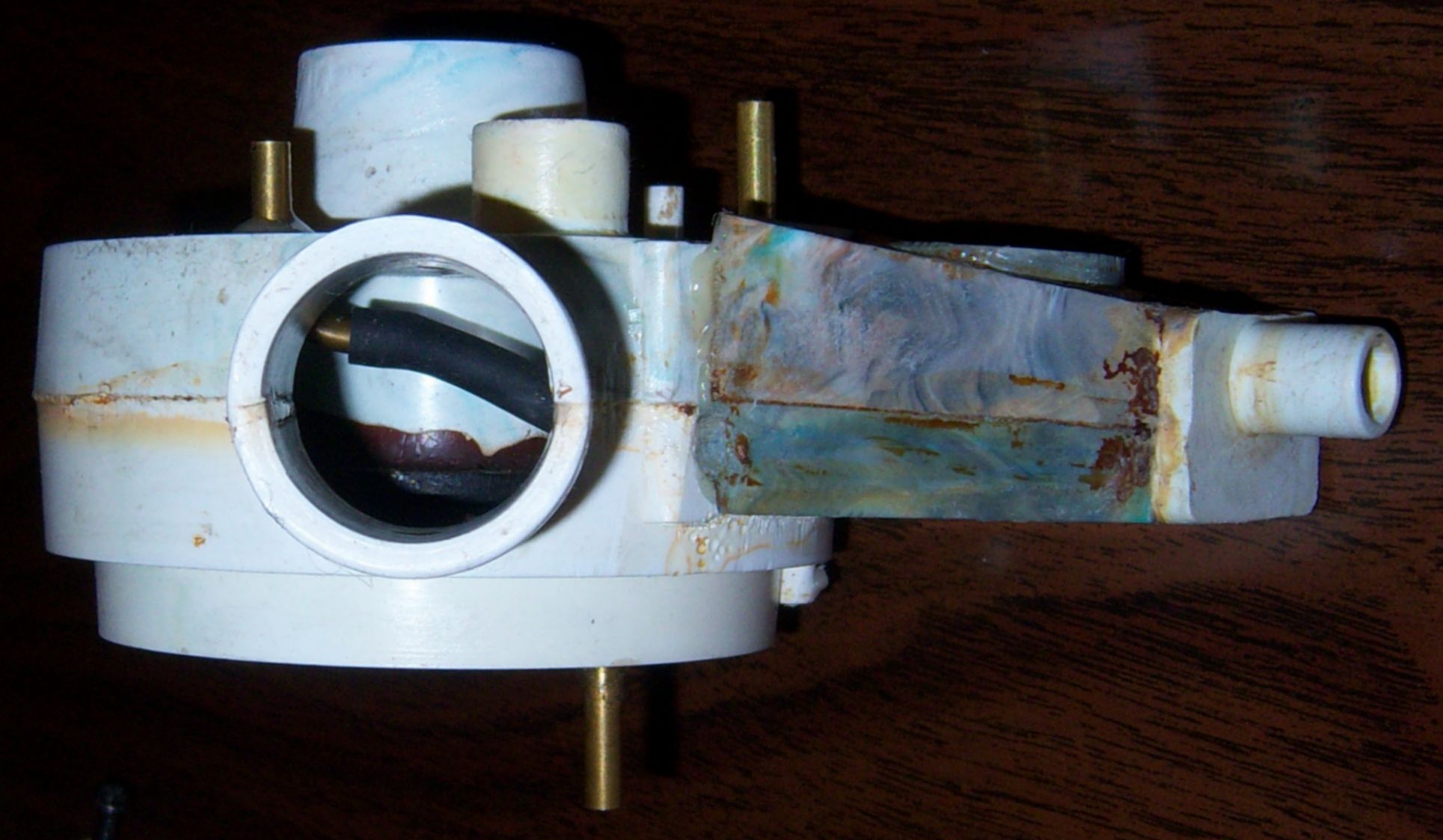

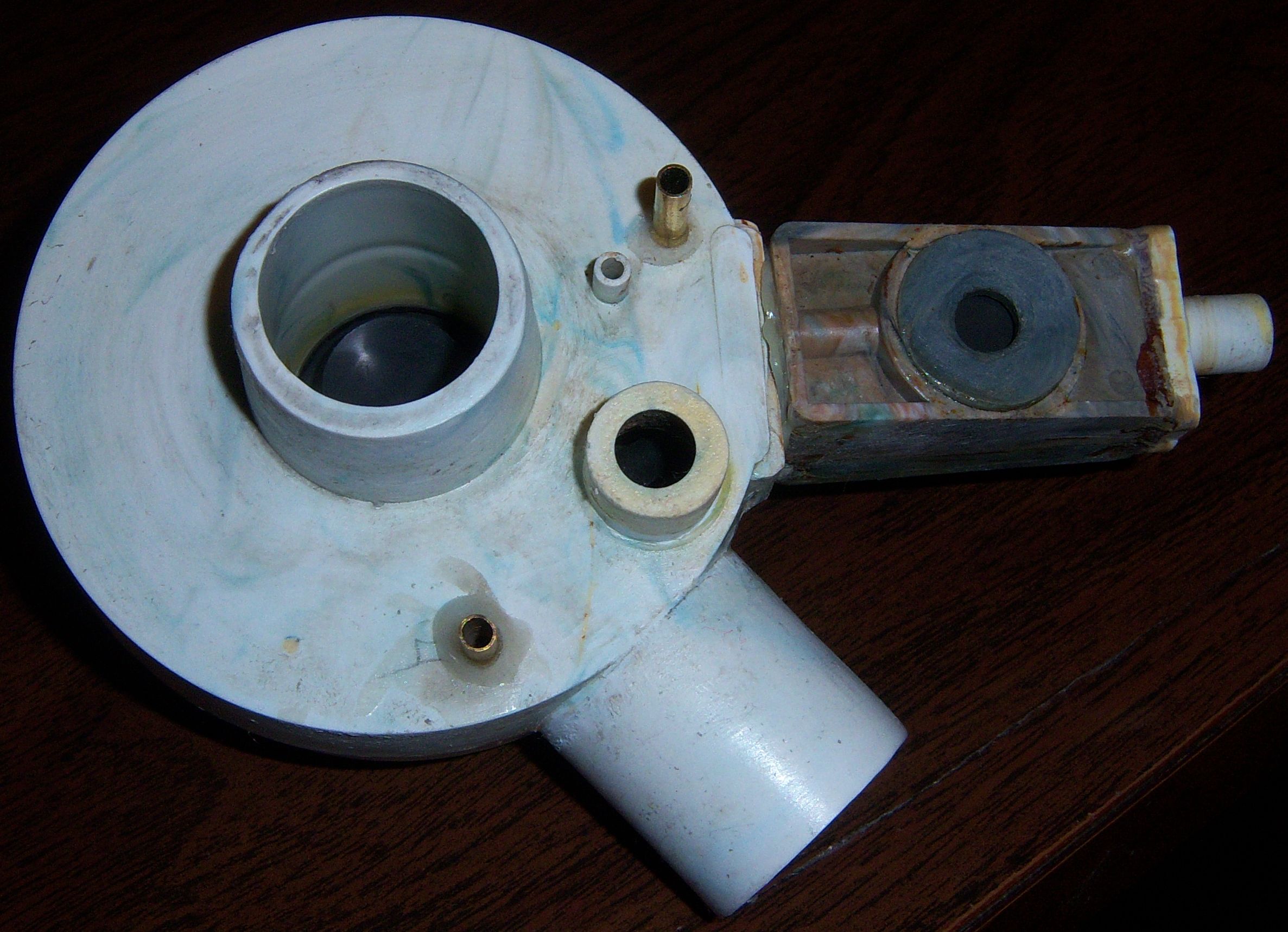

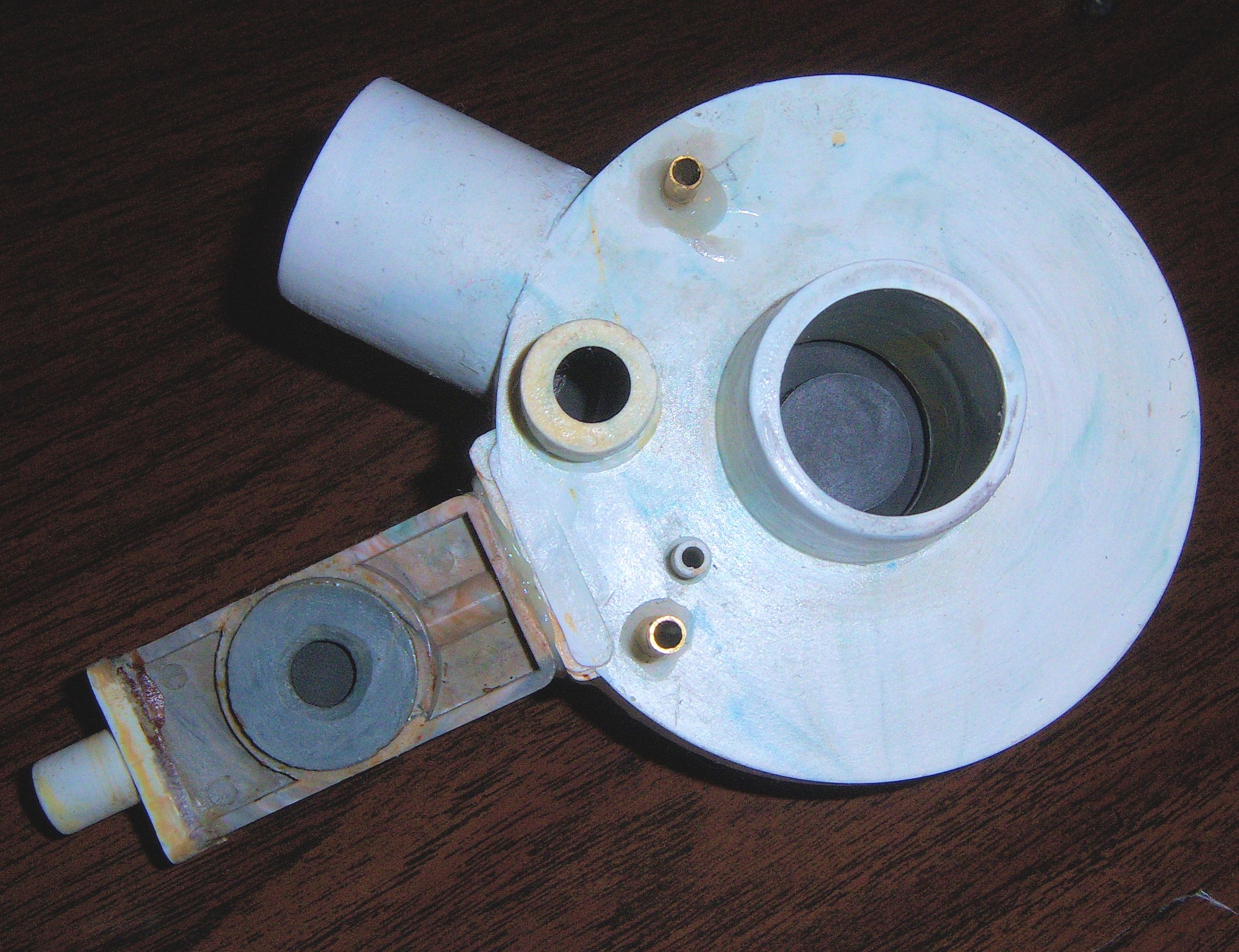

The final series of pictures show the finished product.
