Gulbransen Rebuilding Kit
Comprised by Durrell Armstrong
For Information Only
Kit Is No Longer Available

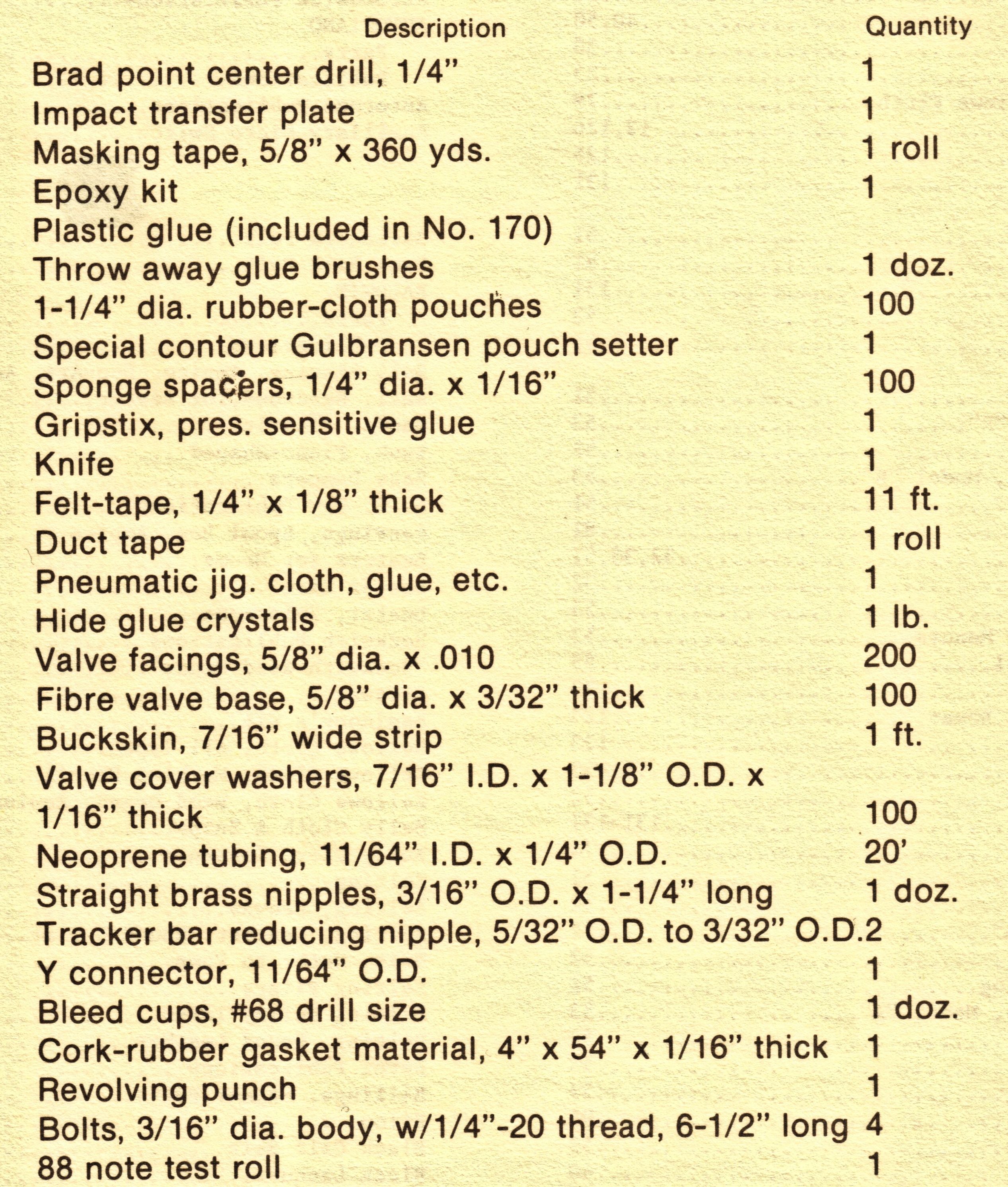

            Description                              		            Quantity

Brad point center drill, 1/4"                        				1
Impact transfer plate                              				1
Masking tape, 5/8" x 360 yds.                     				1 roll
Epoxy kit                                     					1
Phenoseal                                        				1
Plastic glue (included in No. 170)
Throw away glue brushes                      					1 doz.
1-1/4" dia. rubber-cloth pouches                      				100
Special contour Gulbransen pouch setter            				1
3" Spring clamp                                        				1
Sponge spacers, 1/4" dia. x 1/16"                				100
Gripstix, pres. sensitive glue                            			1
Knife                                                    			1
Felt-tape, 1/4" x 1/8" thick                               			11 ft.
Duct tape                                      					1 roll
Pneumatic jig. cloth, glue, etc.                    				1
Hide glue crystals                                				1 Ib.
Valve facings, 5/8" dia. x .010                       				200
Fibre valve base, 5/8" dia. x 3/32" thick              				100
Buckskin, 7/16" wide strip                          				lft.
Valve cover washers, 7/16"' 1.D. x 1-1/8" 0.D. x 1/16" thick                    100
Neoprene tubing, 11/64" 1.D.x 1/4" O.D.          				20'
Straight brass nipples, 3/16" O.D. x 1-1/4" long      				10
Tracker bar reducing nipple, 5/32" O.D. to 3/32" O.D.  				2
Y connector, 11/64" O.D.                           				1
Bleed cups, #68 drill size                          				10
Cork-rubber gasket material, 4" x 54" x 1/16" thick  				1
Revolving punch                                   				1
Bolts, 3/16" dia. body, w/1/4"-20 thread, 6-1/2" long 				4
88 note test roll                                   				1

Return To - Rebuilding the Gulbransen 3-Tier Glued Stack - CLICK HERE
