This article was written in 2007, and the company that made the system is no longer producing the system. Craig Brougher has been installing the VirtualRoll system since 2010. NOTICE: "The E-Roll Player system is no longer available in its original (superior) configuration due to reorganizational plans between its inventors. I am keeping a close eye on developments and hope to let everyone know when it (or another worthy system) becomes available in a design that I believe is worthy of consideration. The software and control circuits should have full capability as originally envisioned, and the number of conductors kept to a minimum in order to keep the physical layout and installation simple and reliable. I'll keep you posted." Signed, Craig Brougher

by Craig Brougher

Pneumatic player pianos today have a real ally in the form of an electronic interface which takes the place of a paper roll. This system isn't really for the pedaled player pianos. It is intended to be an alternate music source for pneumatic players like reproducing grands and coin operated instruments, such as you would find in museums and collections, today. With this system invisibly installed, one is still able to play rolls without any changes at all. The system is completely unimposing and does not require mechanical modifications. In other words, the extent of the modifications required would be probably a dozen screw holes at the very most. It "Y's" into the trackerbar tubing and unless it's being played, remains airtight to the original pneumatic system.

This electronic interface today is catching on. I've installed a number of them already, including a Duo-Art upright, and so far have had excellent performance even with the first units. My own piano has one of the first 2 that were ever sold, installed in 2001. The valves seem trouble-free and have been playing, sometimes continuously for 2 hours at a time or longer, for countless performances. I think a main reason for this reliability is, there's no heat problems. The system was a real hit when it was demonstrated at this year's 2004 AMICA Convention in Colorado, I am told, and the makers of this system are now inundated with inquiries and sales about their new system. I think it is the future of electric pumped pneumatic music machines.( I do not think it will take the place of rolls pumped manually on a player piano, and was never intended to.)

The advantage of this system to the single instrument owner is obvious. Even greater to the owner of a collection of instruments! While nothing will take the place of interacting with an original player roll, singing the words off the note sheet, their original charm and fun for a group having a player piano party, the E-ROLL PLAYER adds immeasurably to the enjoyment , fun, and usefulness of the instrument, both when guests are present and when they are not, by allowing any number of tunes to be programmed from a laptop computer into a "Play list" from the "Collection" and played- one after the other. Tempos can be reset if desired and then saved to the "file." But this is just the beginning.

Do you play the piano? Would you like to make a "roll" instantly and have it played back on your reproducer? Except for expressions, you can do this already if you own an electronic keyboard. If you have little children, they would like the songs they know, played simply on the piano. You could do this for them, OR- you could download a vast, unending number of MIDI files available on the Internet and convert them for your use. But it's much better than that. Reproducing and 88 note rolls have already been scanned onto CDs by the thousands already and available free for the downloading, as well as those which cost you money. The cost? So far, I estimate it averages about 3.5 cents/song, and the quality overall is as good as the best roll re-cut on original factory equipment.

Problems? There are always those occasional tunes that have a few missed notes in them. However, those are becoming more and more rare as roll scanning improves and the knowledge increases. In addition, there are now programs which can globally modify any old e-roll that had a problem and so 99% of them (or better) should play flawlessly now on a good instrument. It's a better percentage than you would ever expect to get even from all new rolls, with an additional advantage- you would need thousands of square feet of storage space for the number of rolls you are able to buy on a single CD.

When you consider the overall cost of supplying music for your piano the conventional way, versus the E-ROLL way, well, a library of only 200 rolls is approximately the cost of the E-Roll Player installed at the time the player is restored, in my shop. Just about anyone who owns a reproducing player will have 200 rolls after awhile. 200 songs isn't very many, when you consider owning the piano for 30-70 years. But think what you would have, in addition to a collection of 200 rolls, if you then had an additional collection of 5-6 thousand more songs?

Let's talk about what you can do with these collection lists, for a minute. You can sort the collection by composer, by artist, by the name of the tune. That allows you to select, for example, a play list of Gershwin, or Liszt, or Tchaikovsky. Or maybe an artist list. Tunes played by Adam Carroll, Rachmaninoff, or Hoffmann. You can sort collections into collection music types and then pick only from separate collection groups. It's like having a musical librarian on the payroll. Drag or click these tunes from the collection to a temporary play list and preview them if you like. When you have a play list you plan to listen to later, save it. It will always be there. Name it- like, LISZT LIST (save). Or, DEBUSSY DEPOT. (Save). It's yours from now on. Whenever you wish to hear your play list, click "Play Lists" in the menu, select that list, and the piano begins a live performance. If you want to exclude certain selections temporarily, that's easy, too.

Another advantage is if you plan to have company who likes music, ask them what they would like to hear, and play it. Or give them your laptop or notepad computer to choose their own play list from your collections. And of course, if at any time they find a roll they want to hear, they can immediately play the roll, too. All you have to do is pause or stop the computer program, momentarily. Very user-friendly.

The fellows responsible for this nifty invention are Spencer Chase and Gene Gerety. You can click this link to go right to Spencer's web site and read all about it from another point of view. The address is

As I write this, some work is being done to get words attached to the music. As this is gradually done, the music plays on the piano and the computer screen displays the words in time. Certain Karoke players also have a bouncing ball thingy. With just the facility alone, the owner should be able to type in his own words, right now. As time goes on and the player software is upgraded, the upgrades are going to be made available free to any owner of the system so the player sold with the system will display words to the songs, itself. There's no sense waiting for everything to get finished, because it never will be "finished." It will have to be continuously upgraded to keep up with modern computer developments. But the main thing is the interface in the piano, itself. Once you have that, it will not have to be upgraded, as it will work with all systems, yet undesigned. The only advantage in buying it sooner rather than later is that it's cheaper today than it will be later. The guarantee however is done by Gerety and Chase, and I have found that you can trust them.

A lot of people who aren't "computer-literate" may be squeamish at first to try this system, thinking that they would just louse it up and then nobody could help them fix it again. Frankly, that is highly unlikely, since the playing of MIDI files is a simple trick that practically everyone who owns a computer can do. You will not be out a lot of money to buy a low-cost laptop computer to play your piano like this. An expensive, top-of-the-line, state of the art computer is definitely not necessary, and many companies on the internet can sell you the computer you need for $400 or less. You will be able to get a lot of free songs in MIDI format as well, through your modem connected to the phone line, or cable. There are simple ways to pay for your computer, like this.

The connection from the laptop computer to the piano is a small 1/4" cable, about the size of a microphone cord. There may be cordless systems which would also work. I don't know. My own connection is run under the floor, in the basement, but since it's a small cord, about the same in size as lamp cord, it is easy to conceal, if that's a problem. At the computer you will need a MIDI interface box. These are inexpensive, too. My computer uses a USB interface. All you need to know is what your computer has for plug inputs. If it has a USB connection, then I would suggest using that one.

The software player at the time of this writing has a simple mapping function too, for those of you who are interested in installing their own. By this system you will be able to find any wrong notes. For instance, you may have mis-tubed it, or you may find that the tubing is too cumbersome if you keep the blocks in tracker bar order. Quite a few installations require changes in this aspect of what would be considered "the usual" connection scheme. No problem however. Locating the changes or mistakes is much simpler today, and the system is re-mapped to make the correction, electronically.

Installation by the customer cannot of course be as fully performance-guaranteed as an installation by a trained technician whom the inventors know personally. Much of the performance depends on how it is installed and what condition the piano is in, in which it was placed. Then there is always the "Figment Factor." That is a coined word for a "virtual" performance factor of the imagination. For instance, when you are expecting a subjective weakness you always find one. When you fear that something will go wrong, something always seems to pop up. When someone says, " I think that note isn't playing as softly as it should" or vice-versa, then someone else's imagination perks up and agrees with them. That's the "Figment Factor." It often doesn't occur to anyone in the room to play the roll and listen for the same effect, or see how that note sounds.Suspicions seem to transform themselves magically into reality during an encounter with the unknown, but overlooked procedure and mistakes have so far solved every single problem and the trouble so far has not been electrical with an e- valve. Nor has it been in any case, to my knowledge.

This is one reason why having the system installed when the player is restored is such a great idea. Not only does it come to you debugged and working, but the installation is customized and clean, without hanging, wadded up cables, perilously exposed and vulnerable electronics, and little details which you may not be aware of or able to do anything about after the fact, taken care of. The extra cost, when a big overhaul is decided on is easily absorbed, particularly when it's like getting an extra 5000 brand, new rolls for nothing. "Buy 200, get 5000 free ones." Or however you want to think about that. Any way you want to slice it, it's an unbelievably good bargain and in no way intrudes into the spirit of the player. Instead, a quality professional installation increases the value and selling potential of any such instrument.

See a few installation pictures attached.

Craig Brougher

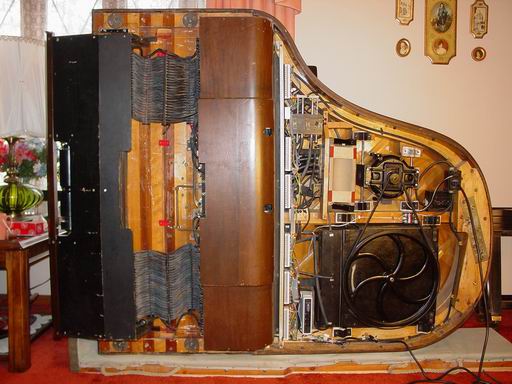

Ampico model B with system installed
Ampico model B with system installed.

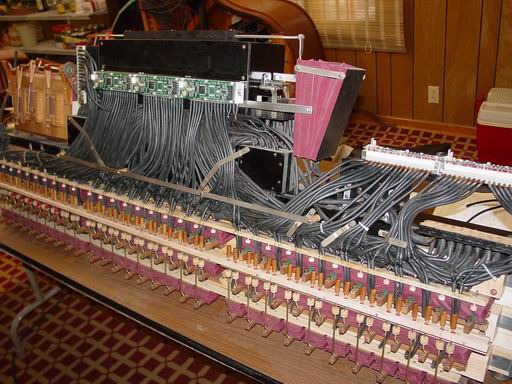

Upright Duo-Art getes valve blocks out of harm's way
Upright Duo-Art gets valve blocks out of harm's way (bass end).

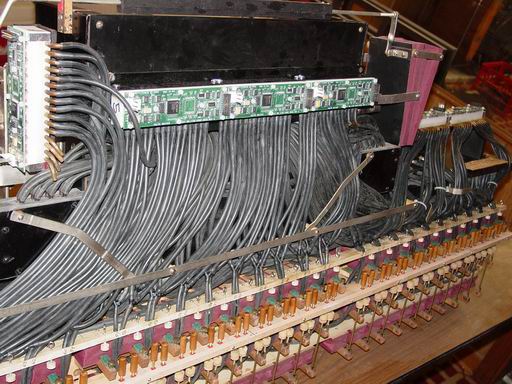

Upright Duo-Art getes valve blocks out of harm's way
Upright Duo-Art gets valve blocks out of harm's way (treble end).

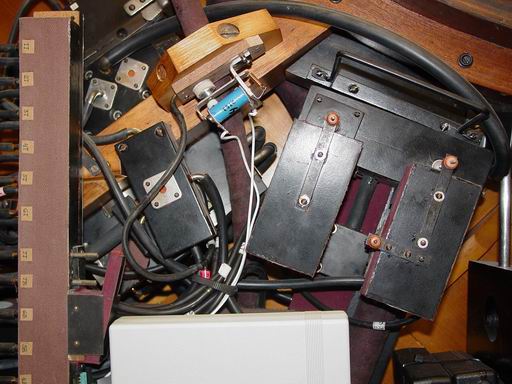

On Ampico A's, a separate valve is required to operate the Loud pedal, and Ampico B's two valves are required, Loud and Soft.
On Ampico A's, a separate valve is required to operate the Loud
pedal, and Ampico B's two valves are required, Loud and Soft.

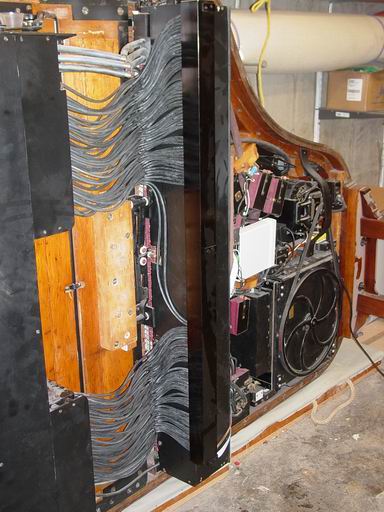

Small grand valve blocks fully protected in aluminum tunnel.
Small grand valve blocks fully protected in aluminum "tunnel".

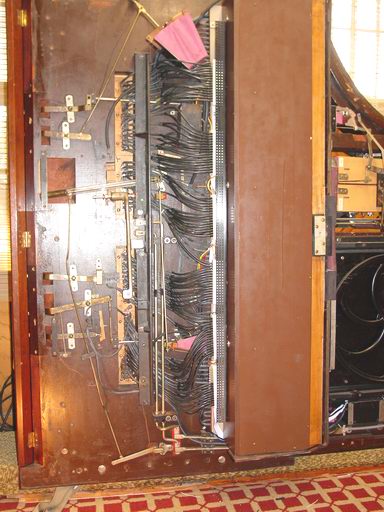

Early model Steinway AR Duo-Art mounting the blocks vertically.
Early model Steinway AR Duo-Art mounting the blocks "vertically".

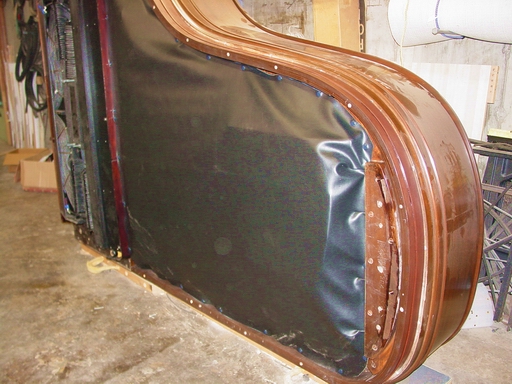

This Mason & Hamlin with belly cloth shows how the E-VALVES are totally covered in this type installation.
This Mason & Hamlin with belly cloth shows how the
E-VALVES are totally covered in this type installation.
