Baldwin Manualo Transmission Frame

Videos of the Baldwin Manualo Transmission Frame

Perfect fit plastic frame installed in spoolbox:

3-D frame at YouTube:

Original 2-piece trans:

Original 2-piece trans:

Glued together trans in operation:

Gluing broken parts together:

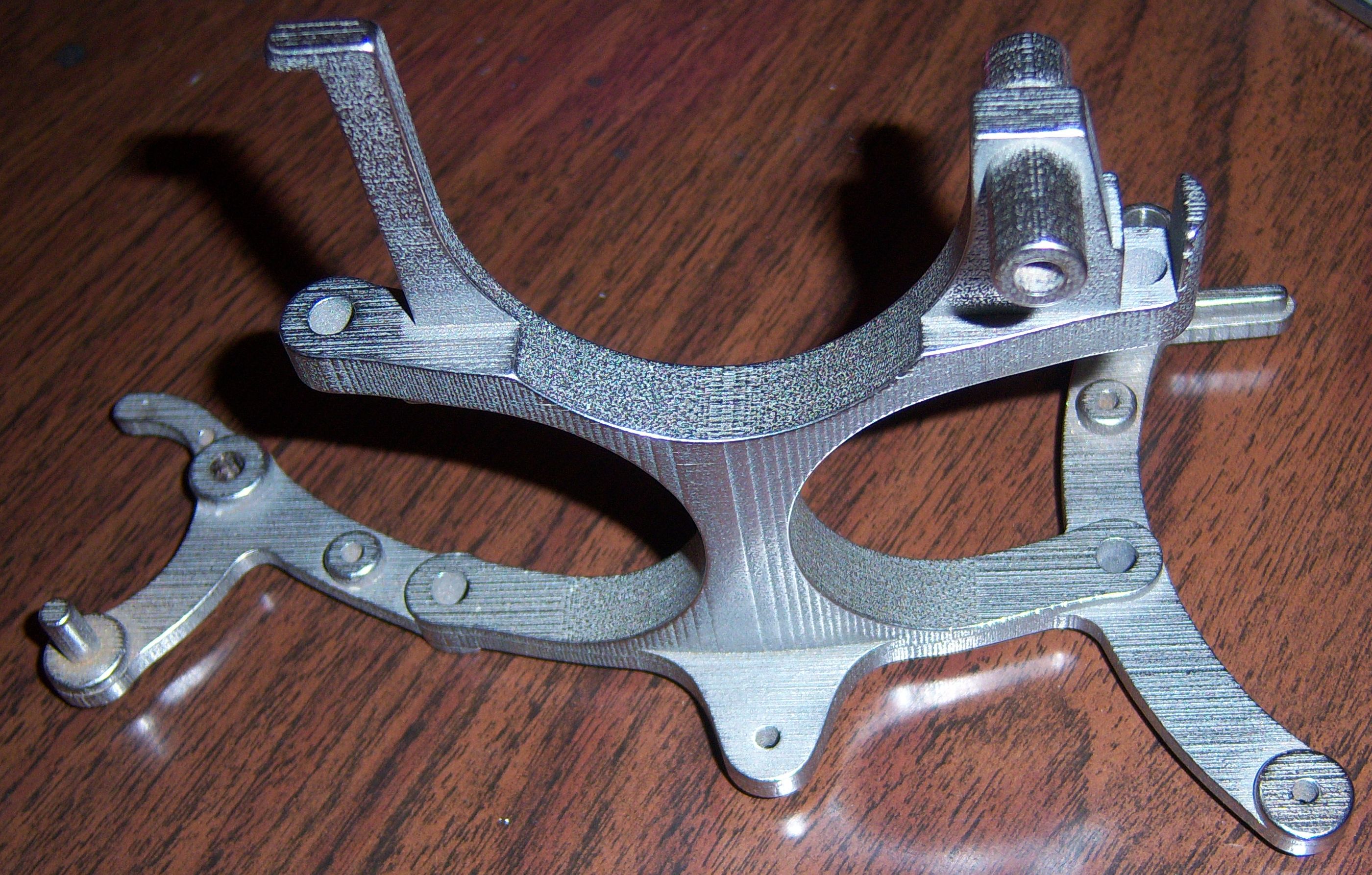

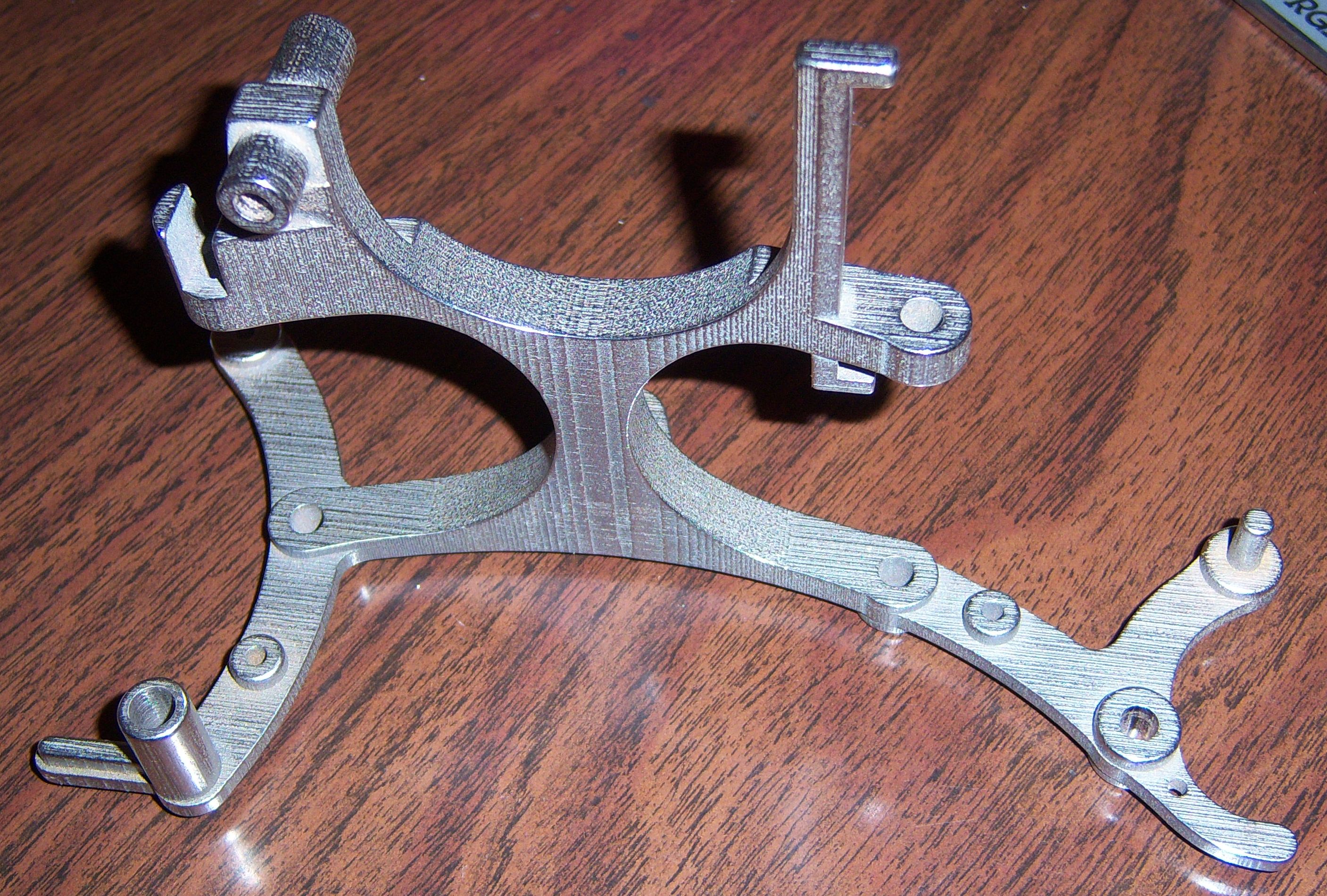

I have been working on-and-off to get the Baldwin Manualo Transmission manufactured since December 2014. I've had six prototypes made out of plastic and one prototype made out of steel. Only one of the plastic prototypes actually worked properly, but, as seen in the video, it's too flimsy. The steel one, which was 3-D printed using the same file as the plastic one that worked, almost fit perfectly. However, I didn't know, at the time, that the part would shrink a small amount as it cooled (after printing). As of this date (9/6/20), I am again working to find a company to make the part. I'm also working on dramatically simplifying the design while maintaining all of the critical spacings, hole sizes, and angles necessary for the part to function correctly. Below are two pictures of the steel frame.
