Wurlitzer 1203 Technical Notes

In response to an increasing number of email requests for information about the Wurlitzer Model 1203 player piano, Player-Care has uploaded all of the Technical Updates supplied by Wurlitzer from 1972-1980. Just click on any of the entries just below. To come back to this page after viewing each picture, press the "Back" or "Return" button on your browser.

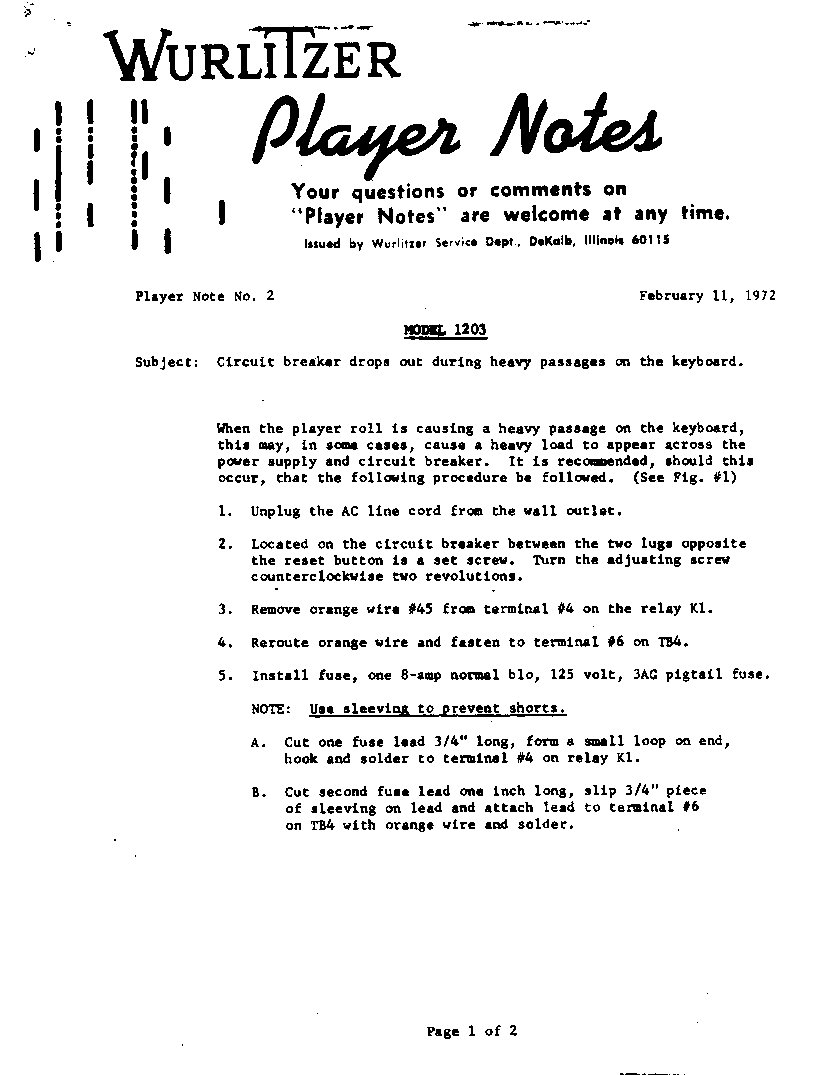

Circuit Breaker drops out during heavy passages on the keyboard. (Page 1)

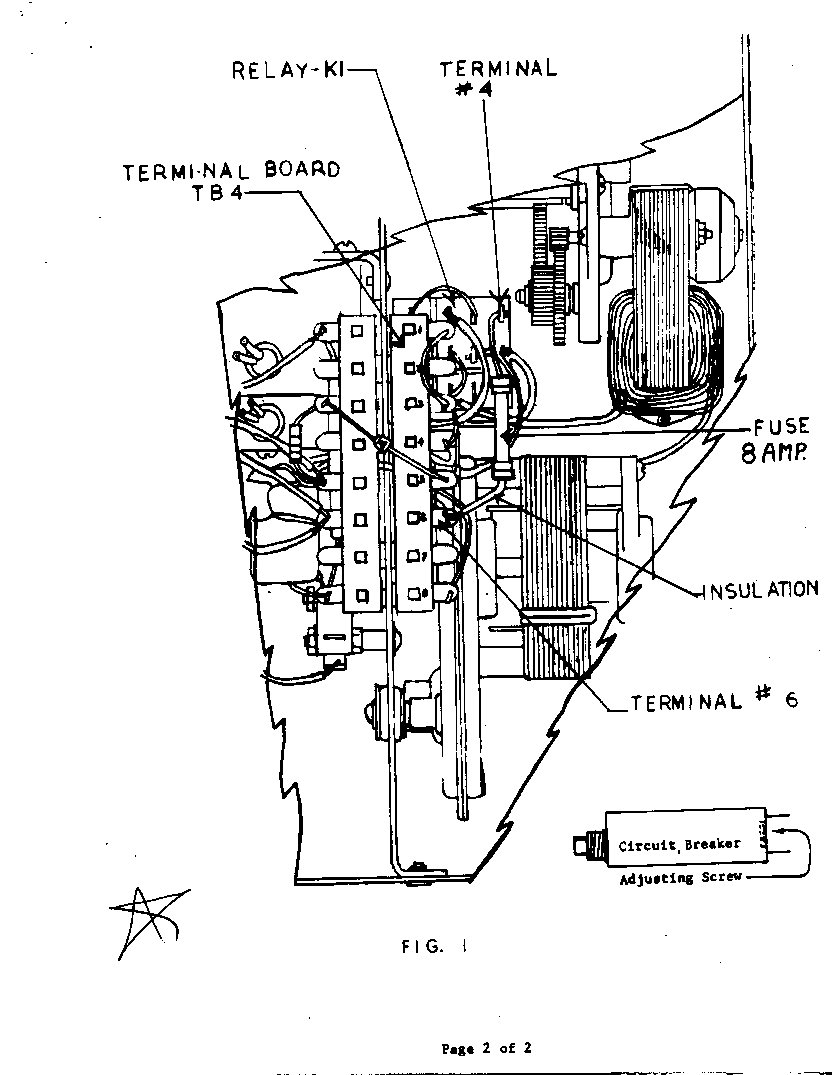

Circuit Breaker drops out during heavy passages on the keyboard. (Page 2)

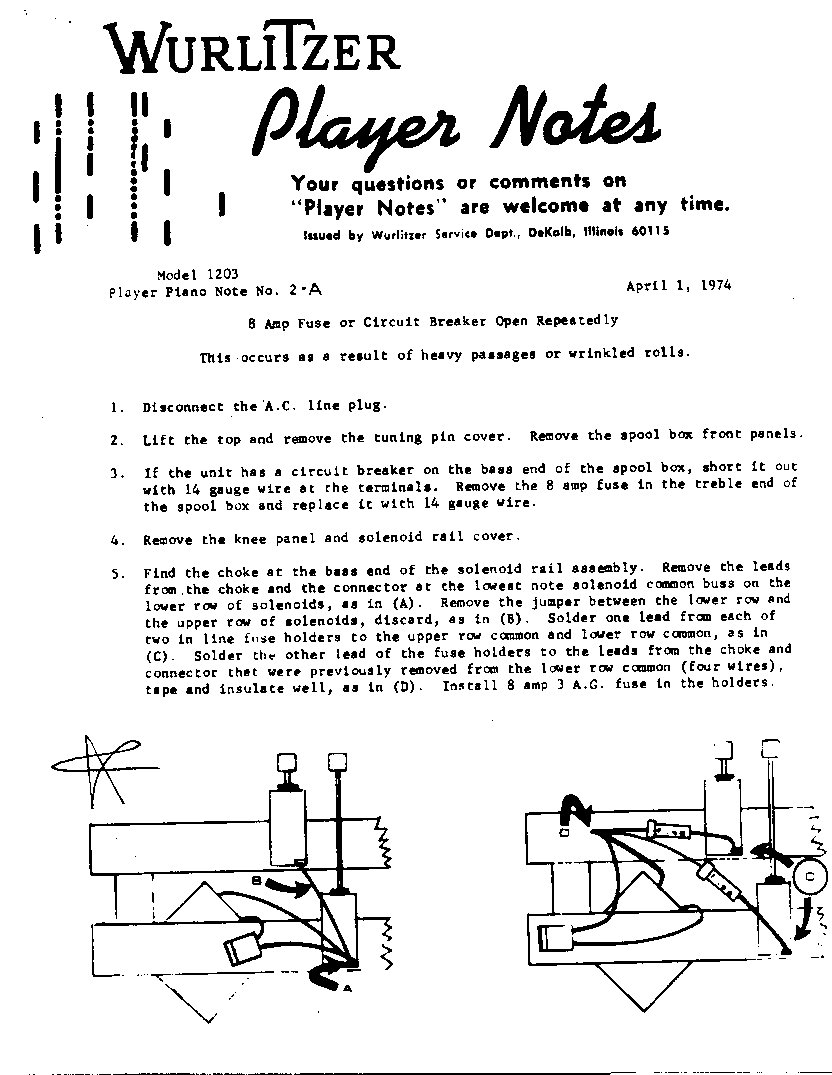

8 Amp Fuse or Circuit Breaker Open Repeatedly
(Occurs as a result of heavy passages or wrinkled rolls)

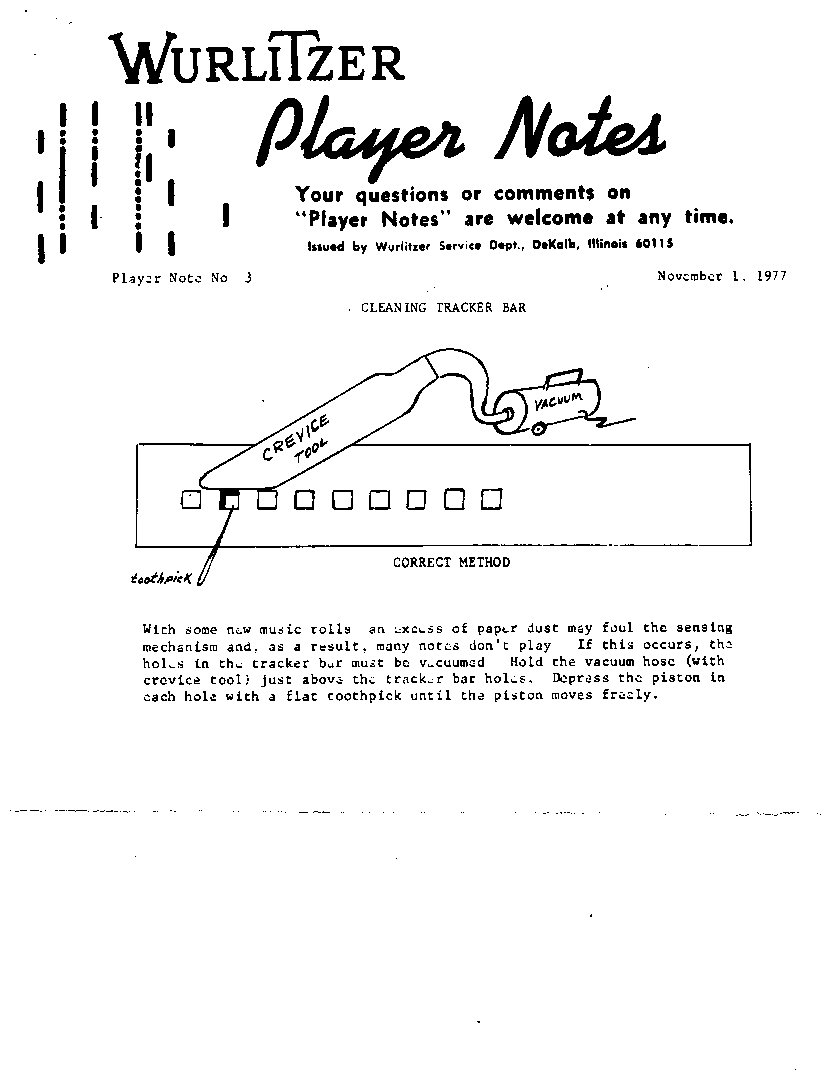

Cleaning the Tracker Bar Correctly

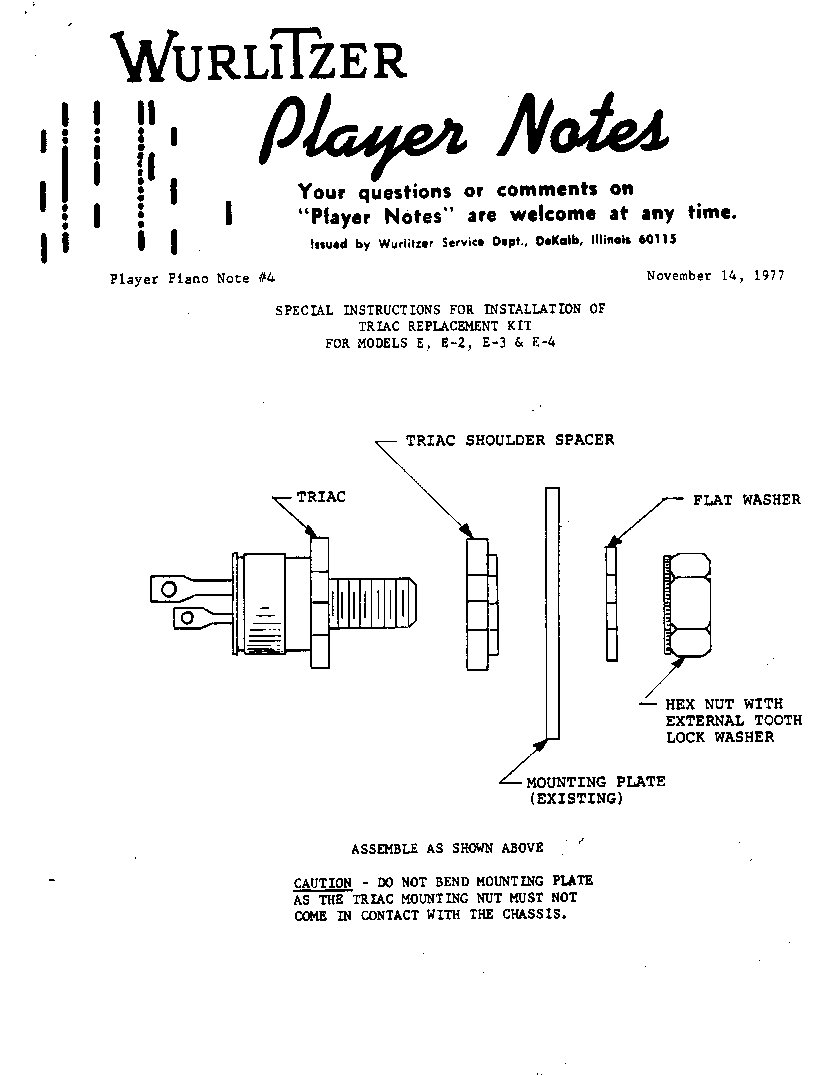

Special Instructions for Installing the Triac

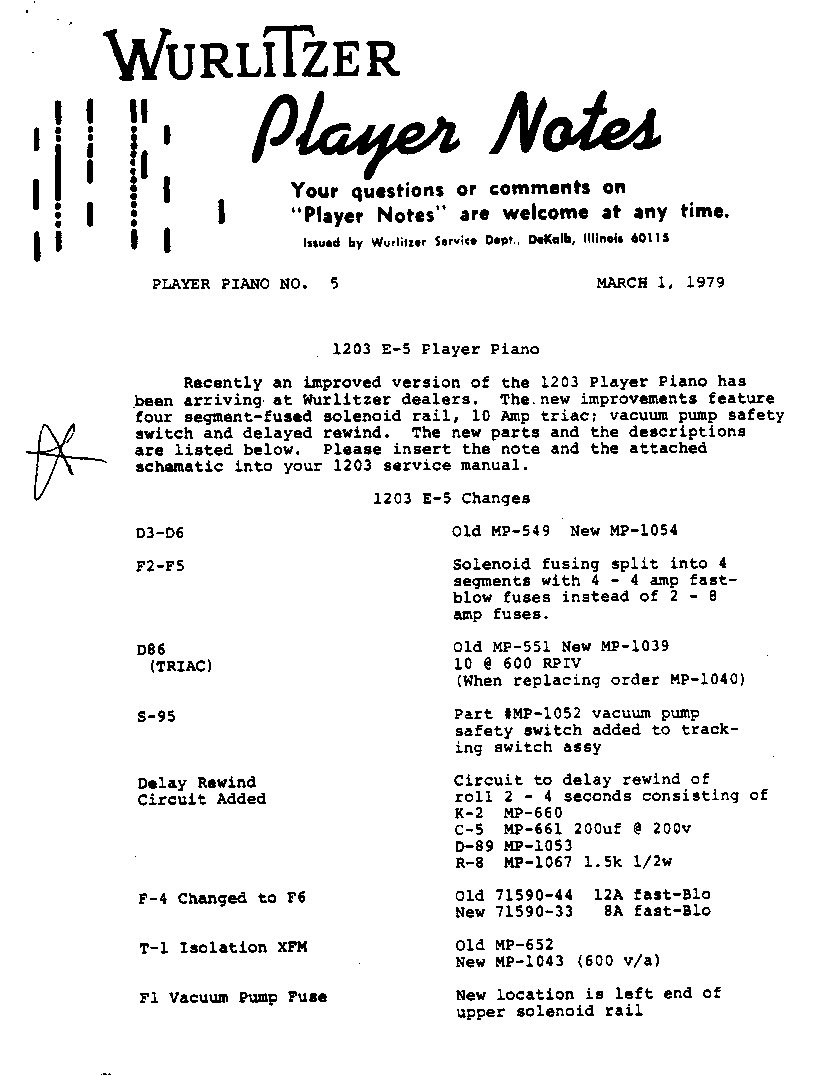

Improvements in the Wurlitzer 1203 Model E-5 (Page 1)

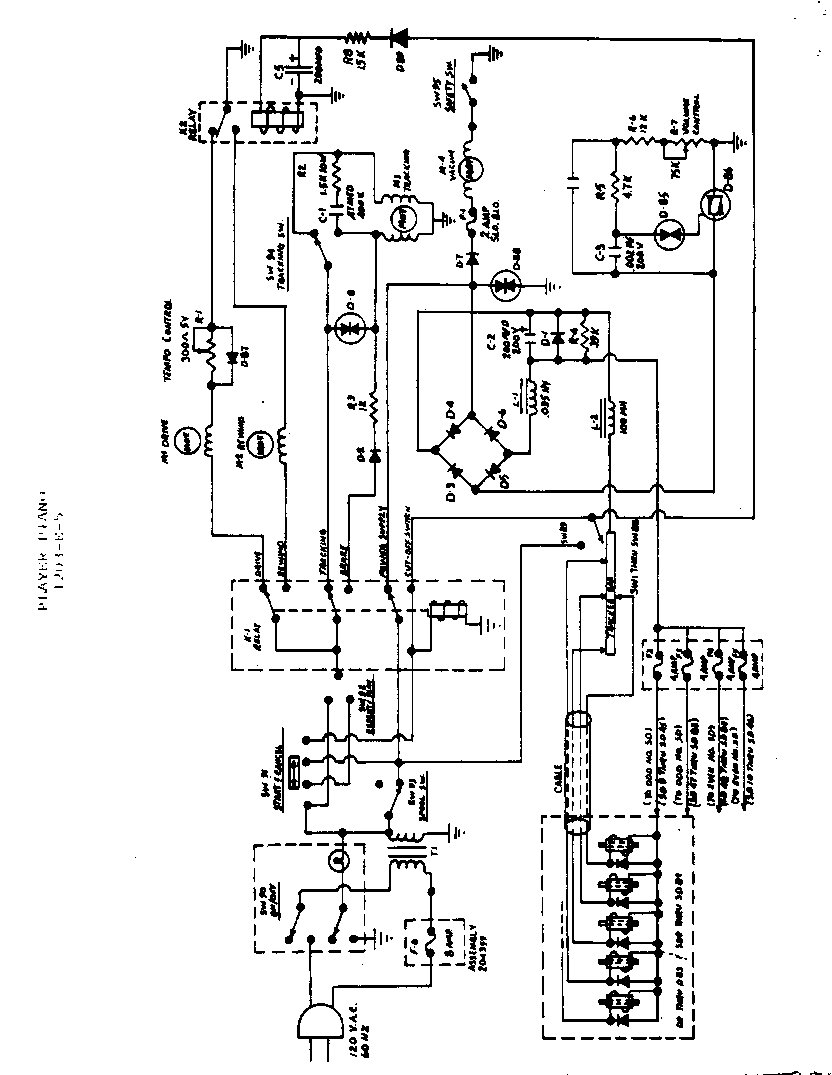

Improvements in the Wurlitzer 1203 Model E-5 (Page 2)

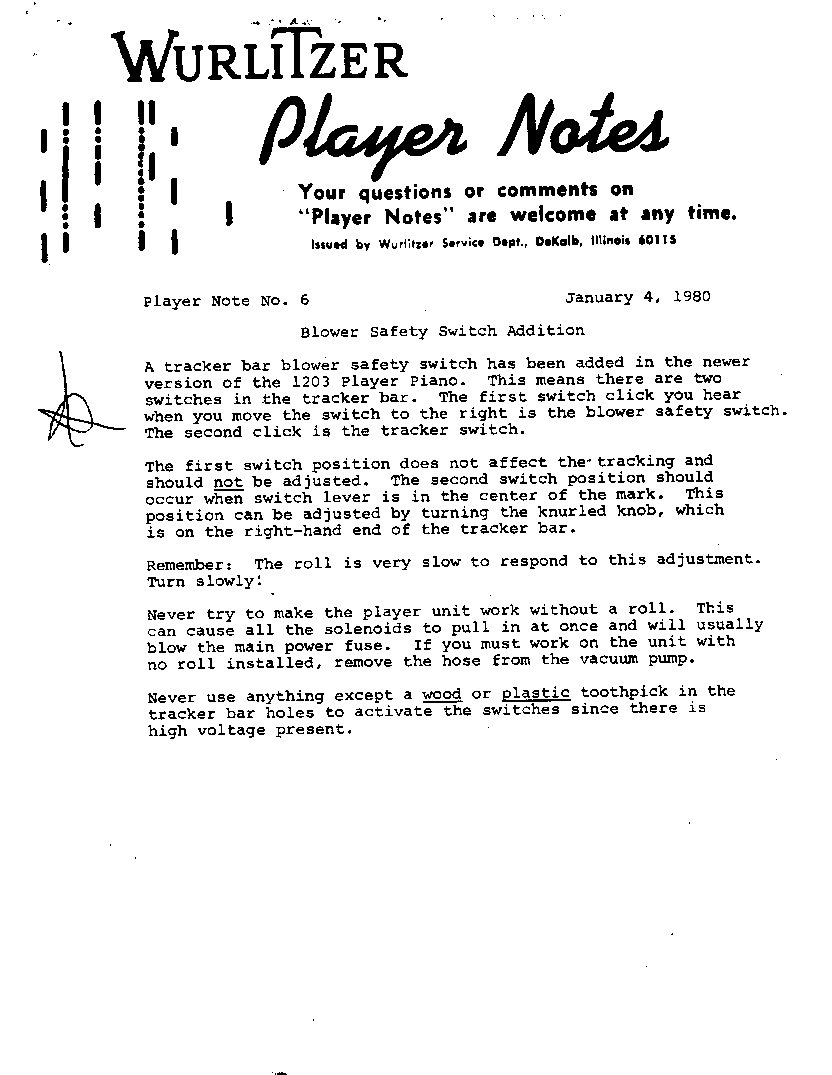

Blower Safety Switch Addition

Tech notes missing from the above list:
Player Note No.1 and No.4.
If anyone has these notes, please send them to me.
