Player Piano Valve Plates and Valve Parts
Lifter Disks Force-Fit Collars Valve Seats Valve Facings Hard Disks Exhaust Valve

Aeolian - Duo-Art Valve Plates

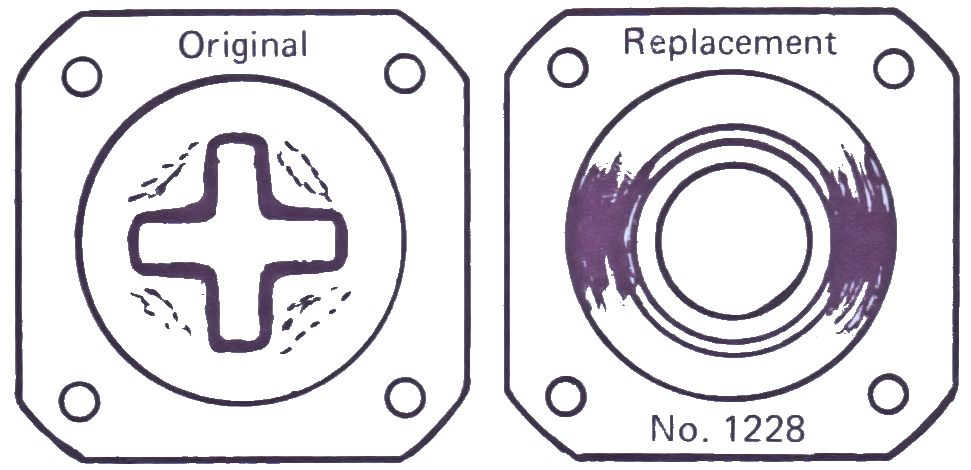

VALVE PLATE replacement for Aeolian "cross valves". The original soft aluminum stampings have been a curse to everyone who has tried to work on this type. The original valves cannot be resurfaced because the center corners spring upwards with pressure of resurfacing, and less metal is taken off the tips of the cross; whereas if it was perfectly round, as in most conventional valve plates, the valve seat surface would be uniformly rigid, and resurfacing them would not be a problem. Therefore, an exact replacement was manufactured, using a circle to seat against the valve leather instead of the cross shape. It is felt that this replacement is better than the conventional design even though the cross type could have been made from a heavy gauge steel.

The new replacement is identical in size to the original, with a 1/2" circle opening or a 7/16" opening, sunken 3/16", for clearing the 1-1/8" valve well. Made from stainless steel. This part was available from Player Piano Co. in 2001 for $3.00 each or $225.00/100. We are offering them for the SAME PRICE!!!

Shown below are the two plates that are now available. The plate on the left has a hole diameter of 1/2" and the one on the right has a hole diameter of 7/16". The one on the left is shown with the #1226 blotter gasket, which is available on the Gaskets Page -click here.



.

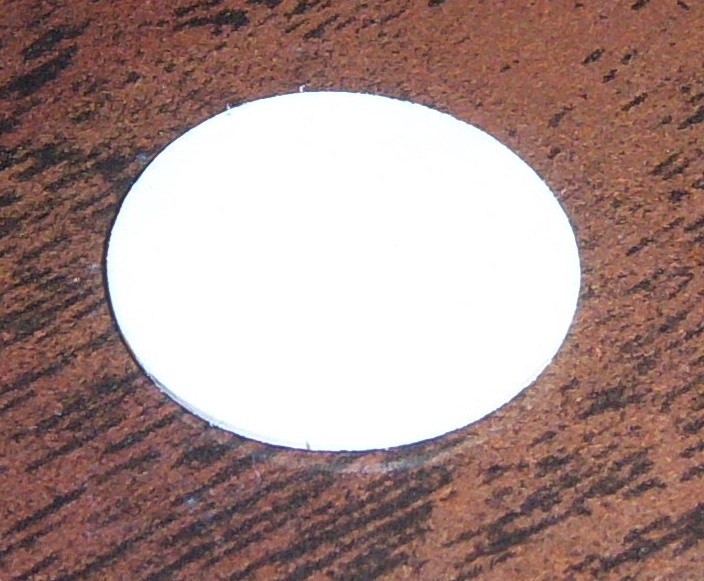

#663 - 3/4" Lifter Disks @ $9.75/100
Stiff manila-type paper 0.018"



#973 - 5/8" Lifter Disks @ $6.50/100
Stiff manila-type paper 0.022"

.



#646 - Force-Fit Brass Collars (for Baldwin Valves): 5/16" OD, 0.081" ID, 1/32" thick: 10-99 @ $0.25 ea. $18.75/100



#1106 - Force-Fit Brass Collars (for Lester Valves): 0.215" OD, 0.078" ID, 0.031" thick: 10-99 @ $0.25 ea. $18.75/100



#1107 - Force-Fit Brass Collars (for Price & Teeple Valves): 0.250" OD, 0.084" ID, 0.030" thick: 10-99 @ $0.25 ea. $18.75/100


#1111 - Force-Fit Brass Collars (for Standard Valves): 0.215" OD, 0.088" ID, 0.050" thick: 10-99 @ $0.25 ea. $18.75/100



#1156 - Force-Fit Brass Collars (for Autopiano Valves): 0.215" OD, 0.090" ID, 0.031" thick: 10-99 @ $0.25 ea. $18.75/100



#1173 - Red Fiber Retaining Washer (for Aeolian & Duo-Art valves): 5/16" OD, 0.173" ID, 1/32" thick: 10-99 @ $0.24 ea. $18.00/100. Should be 0.004"-0.005" smaller than the wooden valve stem for proper pressure fit.



#1174 - Red Fiber Retaining Washer (for Aeolian & Duo-Art valves): 5/16" OD, 0.176" ID, 0.033" thick: 10-99 @ $0.24 ea. $18.00/100. Should be 0.004"-0.005" smaller than the wooden valve stem for proper pressure fit.



#1176 - Red Fiber Retaining Washer (for Aeolian & Duo-Art valves): 5/16" OD, 0.181" ID, 1/32" thick: 10-99 @ $0.24 ea. $18.00/100. Should be 0.004"-0.005" smaller than the wooden valve stem for proper pressure fit.

.


Ampico Valve Seat
#1855 - Ampico B Intake Valve Seat for 13/16" dia. valve with 9/16" stem. Fits into 11/16" hole. To replace Bakelite seat in model B Ampico. Made of aluminum. $2.35 ea. or $190.00/100. (Limited Supply)
