Universal Player Piano - Electrical Diagrams
Click on the numbers to see the diagrams - Use Back button to return here.

Scan 125

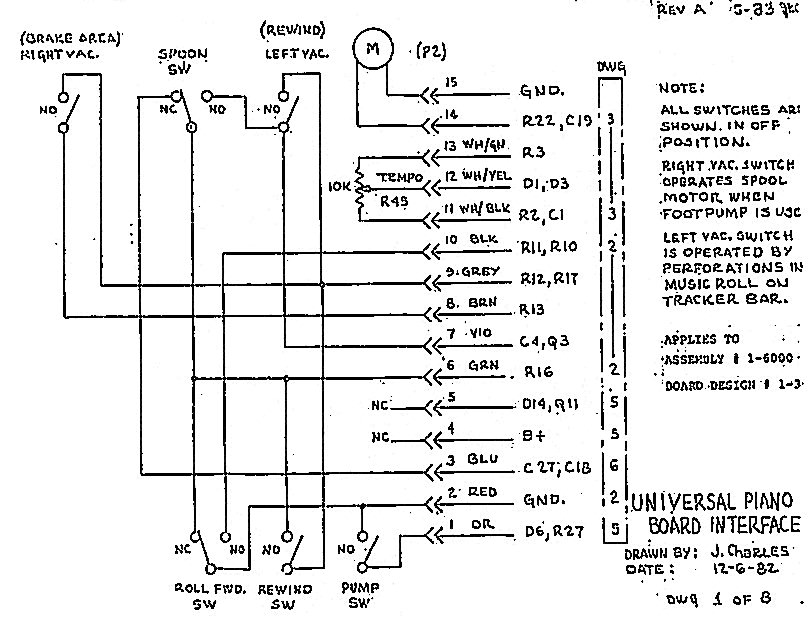

Universal Piano Board Interface - 15-pin connector

Scan 225

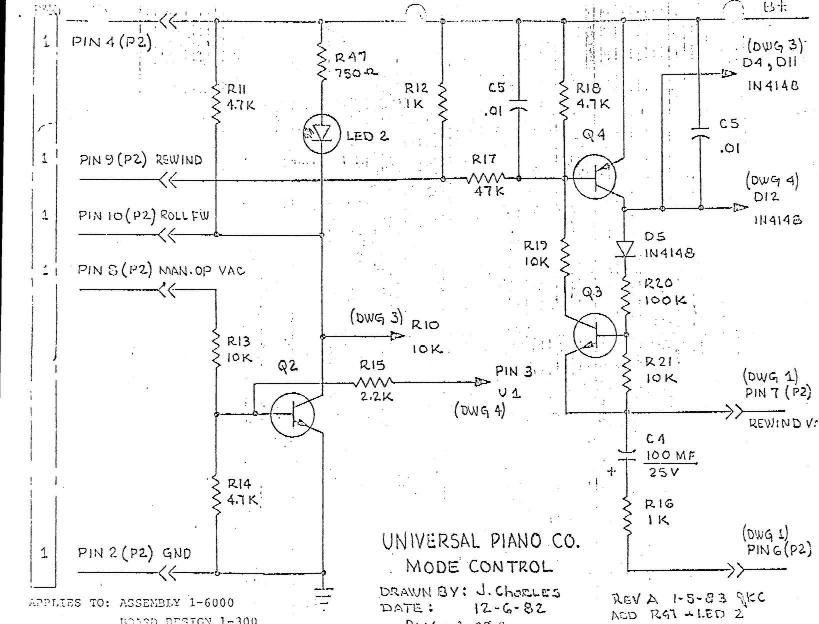

Mode Control (Rewind, Roll-Forward, Manual Operate Vacuum Pump)

Scan 325

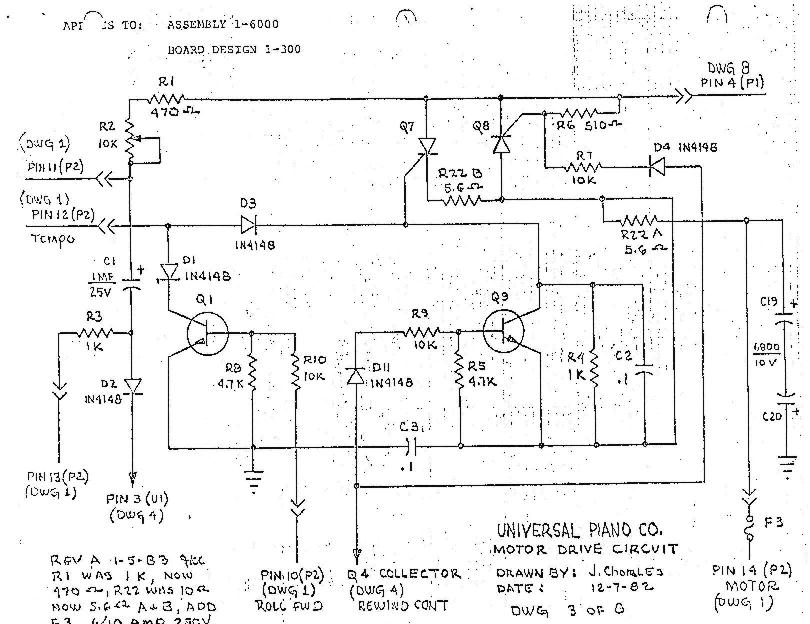

Motor Drive Circuit (Roll Motor)

Scan 425

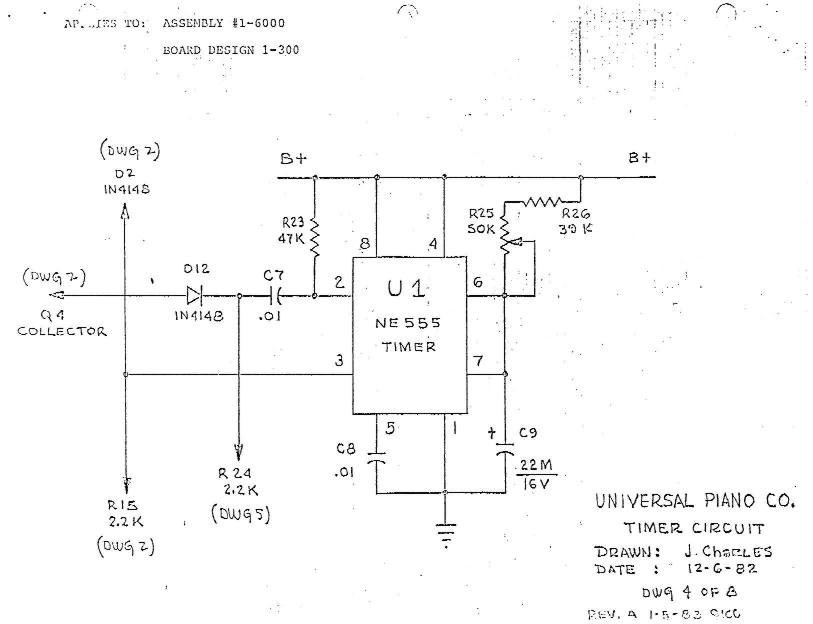

Timer Circuit (Time Delay for Vacuum Pump)

Scan 525

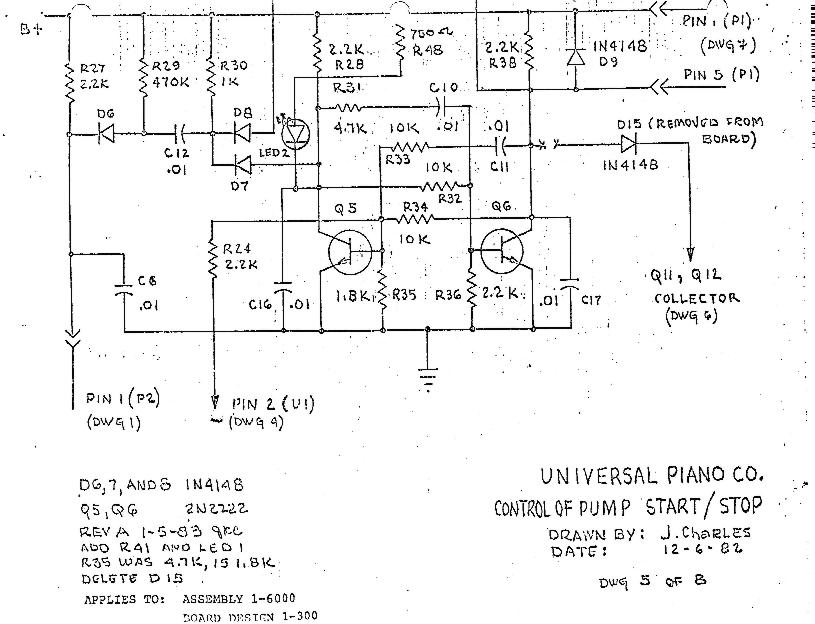

Control of Pump Start/Stop

Scan 625

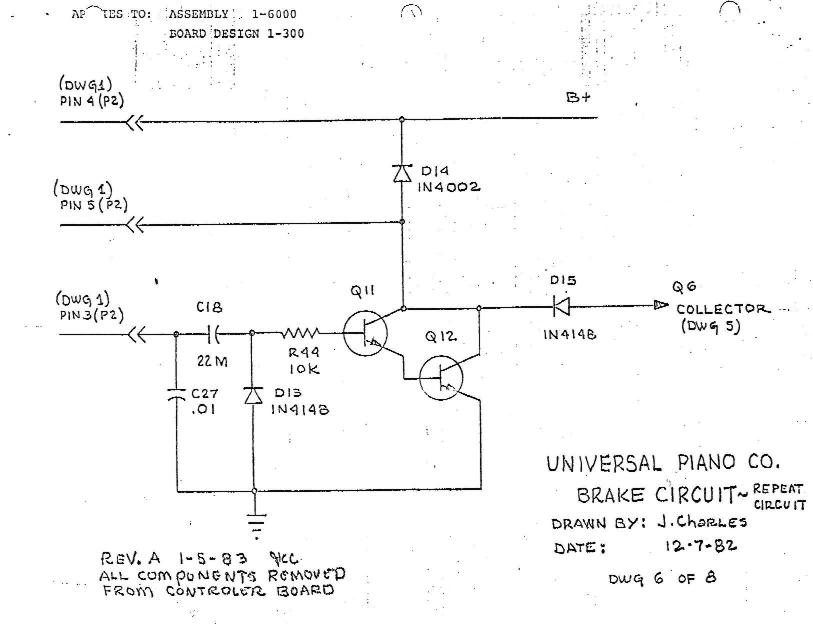

Brake Circuit ~ Repeat Circuit (Rare)

Scan 725

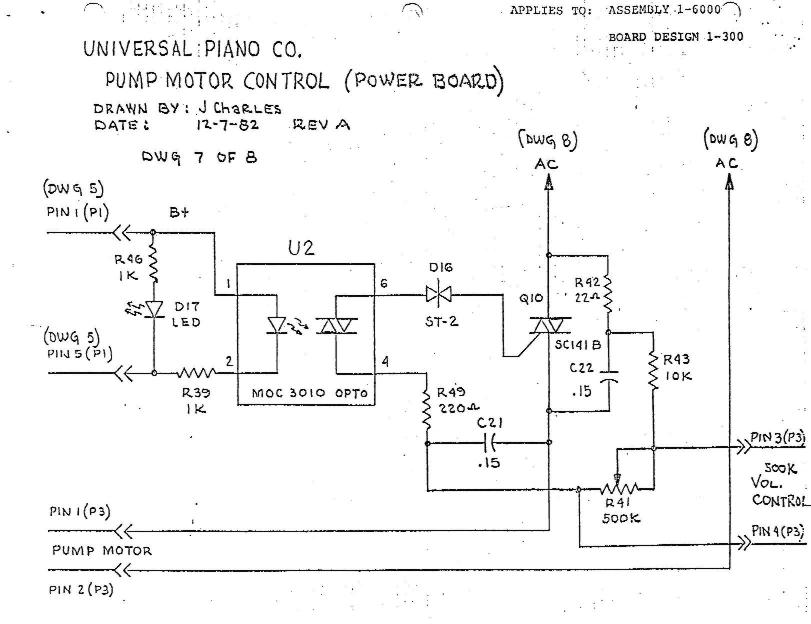

Pump Motor Control (Power Board)

Scan 825

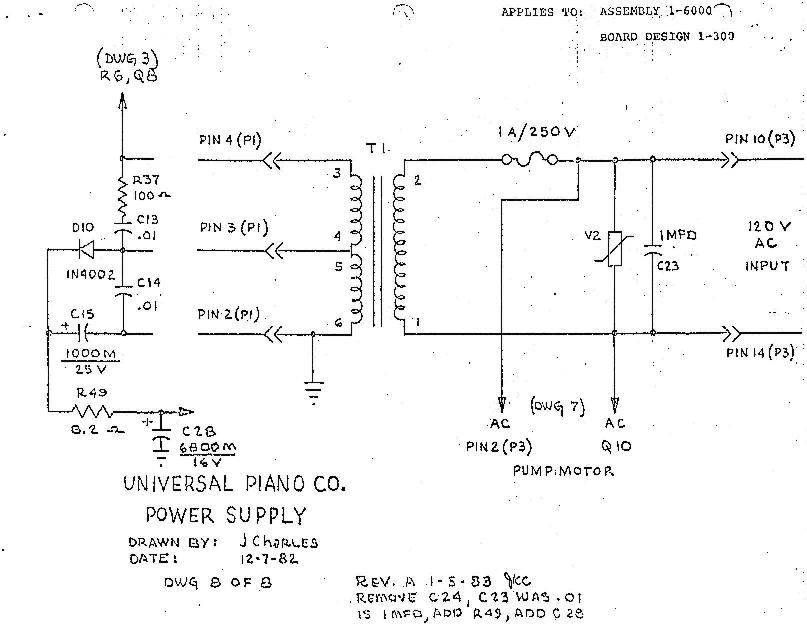

Power Supply
